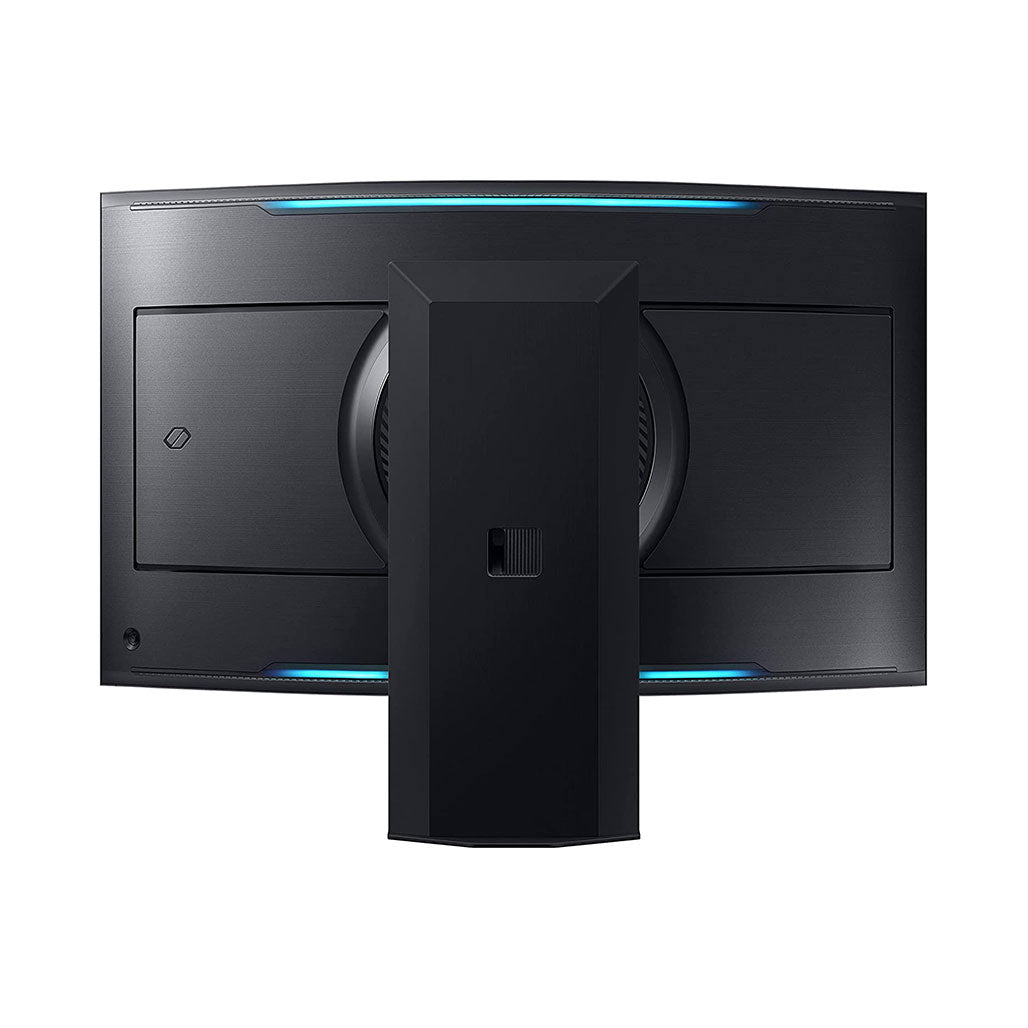

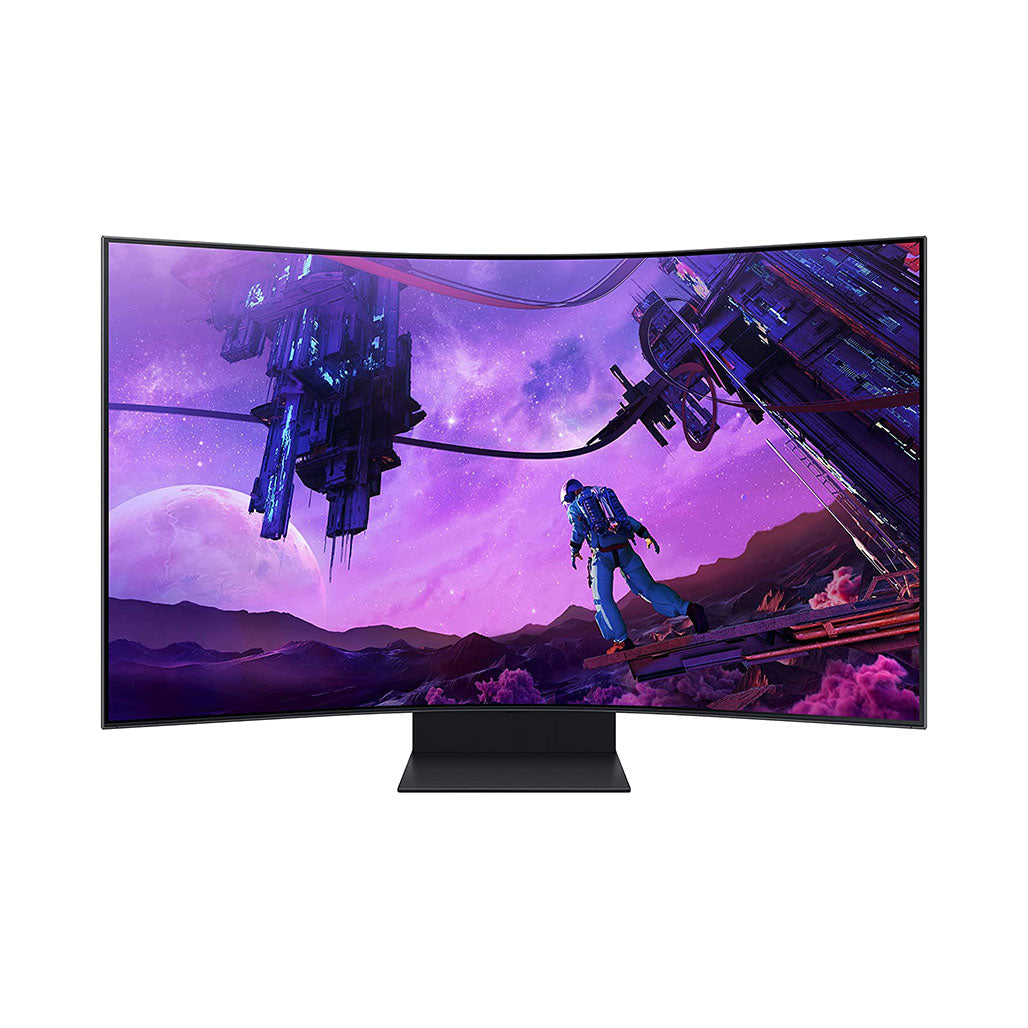

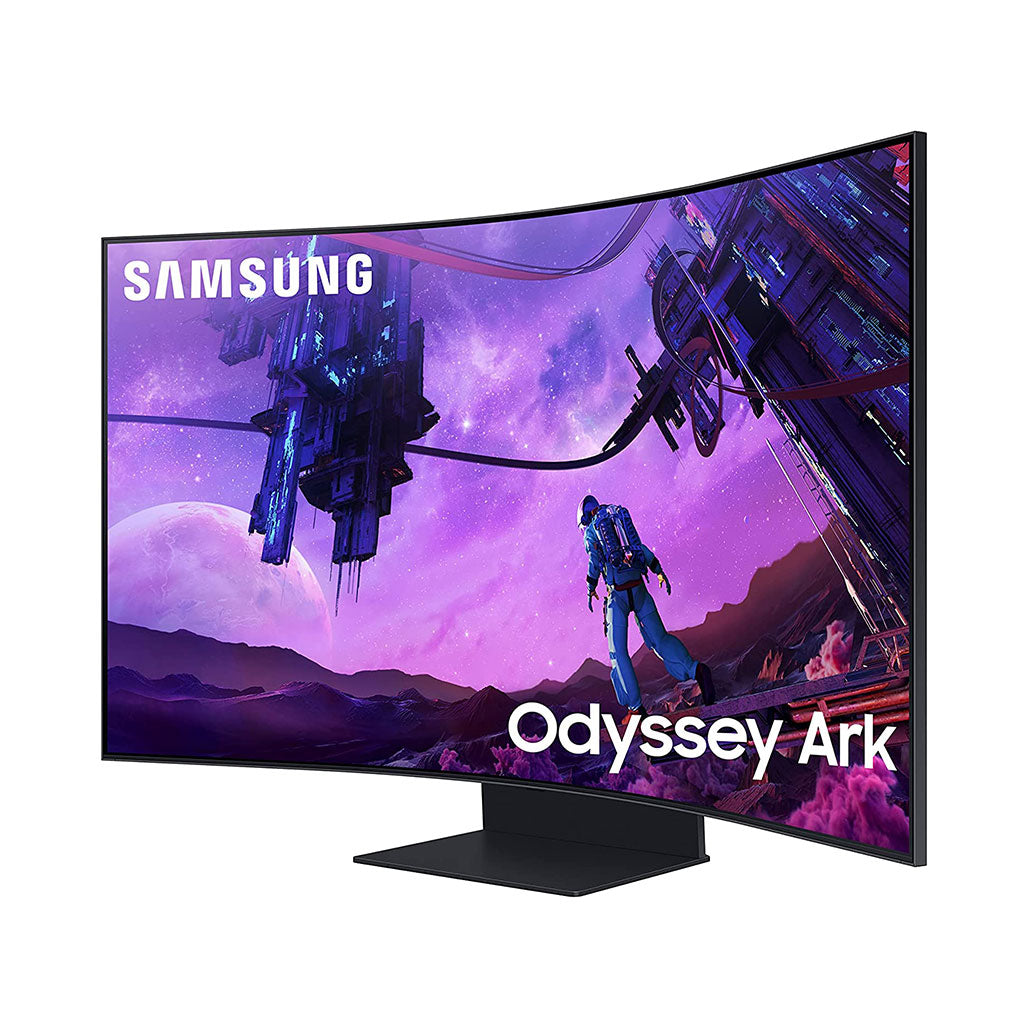

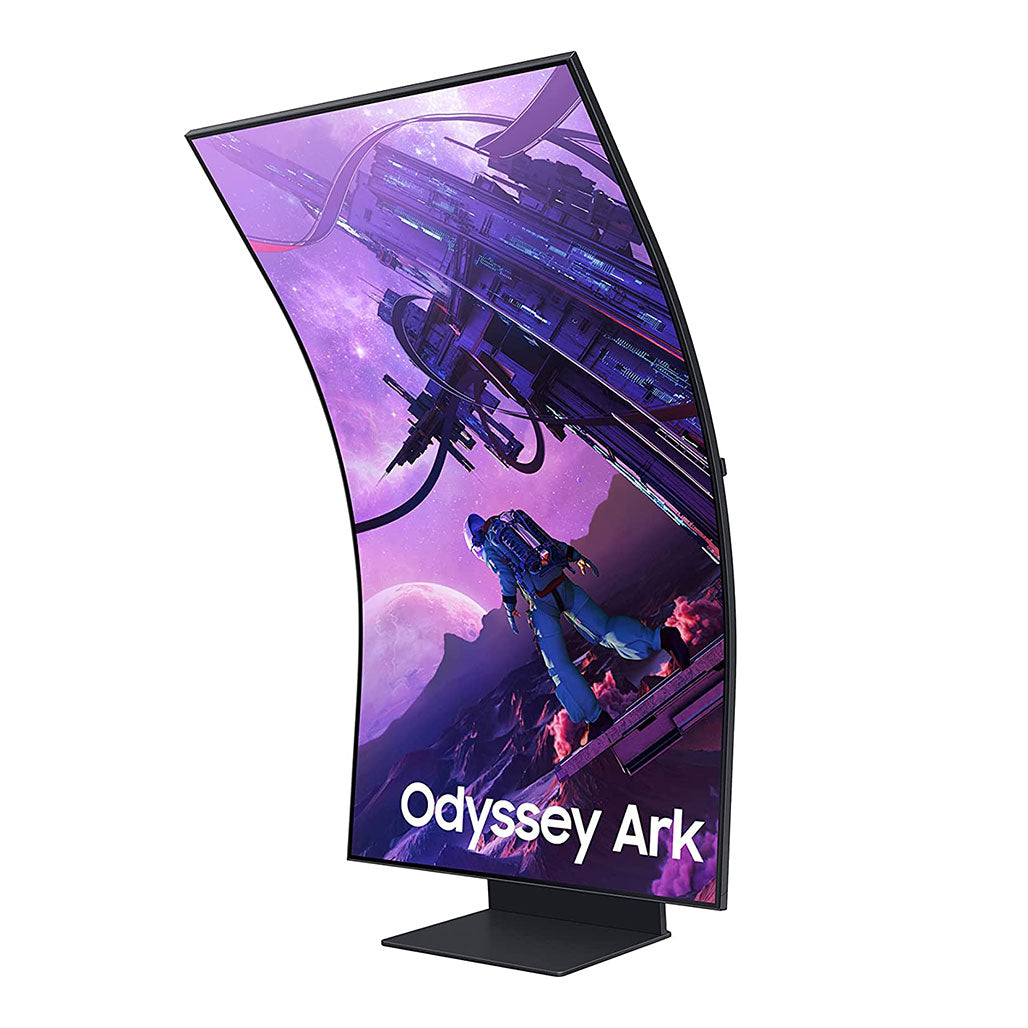

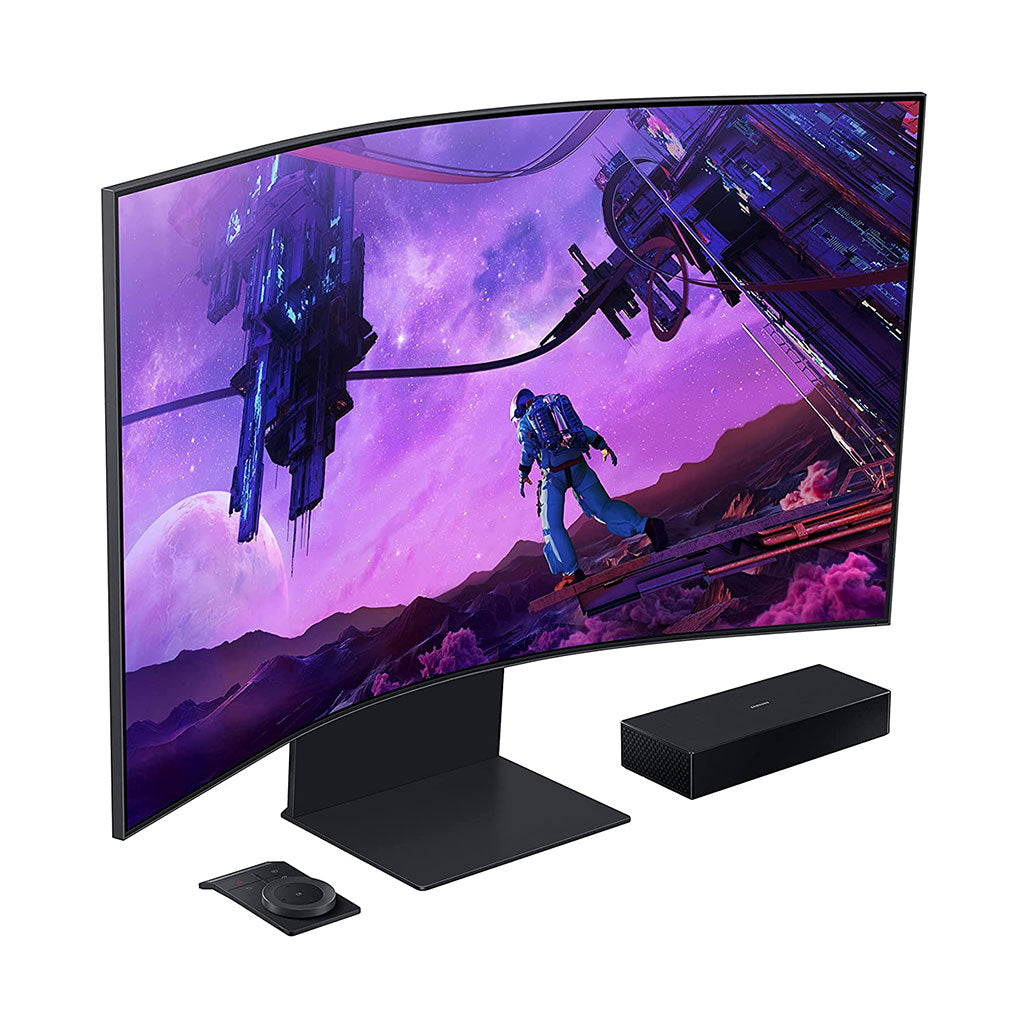

Samsung Odyssey Ark 55" QLED Dual QHD IPS 240Hz Curved Gaming Monitor

Screen Size

55.0"

Resolution

1440 x 5150 Pixels
Active Display Size (HxV) (mm) 1191.936(H) 335.232(V)

Screen Type

QLED Dual QHD IPS Screen
Screen Curvature: 1000R
Aspect Ratio: 16:9
Panel Type: VA
Brightness (Typical): 350cd/m2
Peak Brightness (Typical): 600cd/m2 cd/㎡
Brightness (Min): 300cd/m2
Contrast Ratio Static: 2,500:1(Typ.)
Dynamic Contrast Ratio: Mega ∞ DCR
HDR(High Dynamic Range): VESA DisplayHDR 600
Response Time: 1ms(GtG)
Viewing Angle (Horizontal/Vertical): 178°(H)/178°(V)
Colour Support: Max 1.07B
Colour Gamut (NTSC 1976): N/A
Color Gamut (DCI Coverage): Typ 95%, Min 88%
sRGB Coverage: Typ 125
Adobe RGB Coverage: N/A
Refresh Rate: 165Hz Max 240Hz

Active Display Size (HxV) (mm)

596.736 x 335.664 mm

Design

Stand Type: HAS PIVOT (MORE THAN 100MM)
HAS(Height Adjustable Stand): 120
Tilt: -9 ~ 13
Swivel: -15 ~ +15
Pivot: -2 ~ +92
Wall Mount: 100 x 100

Accessory

Power Cable Length: 1.5 m
D-Sub Cable: N/A
DVI Cable: No
HDMI Cable: No
HDMI to DVI Cable: N/A
DP Cable: Yes
USB Type-C Cable: N/A
Thunderbolt 3 Cable: N/A
Mini-Display Gender: No
Install CD: N/A
Audio Cable: N/A
USB 2.0 Cable: N/A
USB 3.0 Cable: Yes
Remote Controller: No

Battery & Power

Power Supply Wattage

Power Supply: AC 100~240V
Power Consumption (Max): 140 W
Power Consumption (Typ): 73.0 W
Power Consumption (DPMS): ≤0.5 W
Power Consumption (Off Mode): ≤0.3 W
Power Consumption (Yearly): 107 kWh/year
Type: External Adaptor

Calibration

Factory Tunning: YES
Built in Calibration Engine: N/A
LUT(Look-up Table) Bit Depth: N/A
Gray Balance: N/A
Uniformity Correction: N/A
Colour Mode: High-Brightness/Custom/FPS/RTS/RPG/sRGB/AOS/Cinema/Dynamic Contrast
CMS(Colour Management Software): N/A
Factory Calibration Report: Yes

Operation Conditions

Temperature: 10~40 ℃
Humidity: 10~80,non-condensing

Interface

Wireless Display: No
D-Sub: No
DVI: No
Dual Link DVI: No
Display Port: 2 EA
Display Port Version: 1.4
Display Port Out: No
Display Port Out Version: N/A
Mini-Display Port: No
HDMI: 1 EA
HDMI Version: 2
Audio In: No
Headphone: Yes
USB Ports: 2
USB Hub Version: 3
USB-C: No
USB-C Charging Power: No
Thunderbolt 3: N/A
Thunderbolt 3 Charging Power (Port 1): N/A
Thunderbolt 3 Charging Power (Port 2): N/A
Ethernet (LAN): N/A

Extras

General Feature

Samsung MagicRotation Auto: N/A
Eco Saving Plus: N/A
Eco Motion Sensor: N/A
Eco Light Sensor: N/A
0.00 W Off mode: N/A
Eye Saver Mode: Yes
Flicker Free: Yes
Picture-In-Picture: Yes
Picture-By-Picture: Yes
Quantum Dot Color: Yes
Game Mode: N/A
Image Size: N/A
USB Super Charging: Yes
Daisy Chain: N/A
Windows Certification: Windows 10
FreeSync: N/A
FreeSync Premium: N/A
FreeSync Premium Pro: Yes
G-Sync: G-Sync Compatible
Off Timer Plus: Yes
Smartphone Wireless Charging: N/A
Screen Size Optimizer: Yes
Black Equalizer: Yes
Low Input Lag Mode: Yes
Refresh Rate Optimizor: Yes
Custom Key: N/A
Super Arena Gaming UX: Yes
HDMI-CEC: N/A
