Ubiquiti UniFi Express - Compact Cloud Gateway & WiFi 6 Access Point

The Ubiquiti UniFi Express is a compact and versatile cloud gateway combined with a WiFi 6 access point, designed to provide seamless connectivity and management for a variety of network setups. This single-unit device delivers high-performance wireless coverage of up to 140 m² (1,500 ft²), making it ideal for both residential and small business environments. With support for over 50 connected WiFi devices, it ensures robust and reliable network performance.

Equipped with advanced features, the UniFi Express supports up to four additional UniFi Network devices when operating as a gateway. It boasts a built-in 0.96" LCM status display for real-time monitoring and is managed via UniFi Network 8.0.7 and later. The device offers both Ethernet and Bluetooth management interfaces, making it highly flexible and easy to integrate into existing networks.

Key Features:

• Integrated WiFi 6 AP:

  • Advanced Performance: Provides high-speed connectivity with support for the latest WiFi 6 technology.

• Coverage and Capacity:

  • Coverage Area: Offers up to 140 m² (1,500 ft²) of coverage in a single unit.
  • Device Support: Handles over 50 connected WiFi devices efficiently.

• Networking Interfaces:

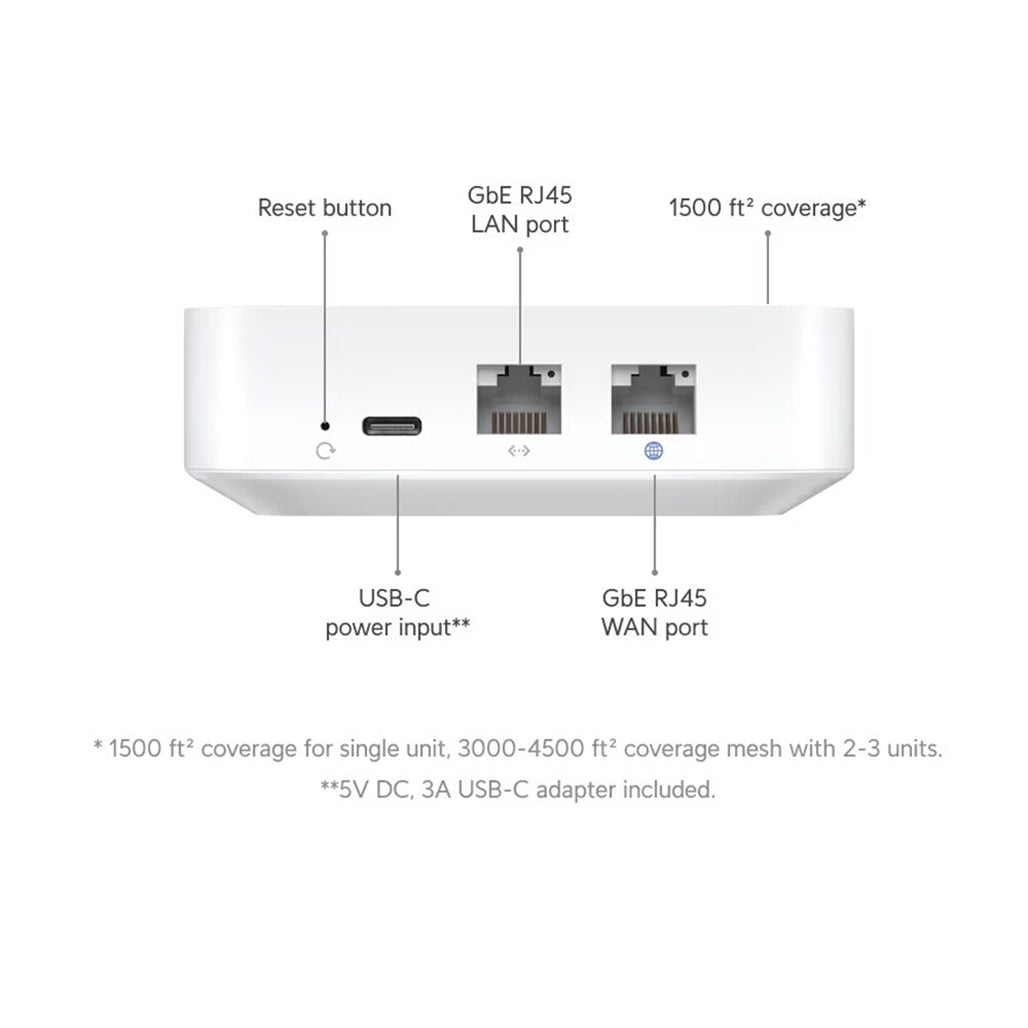

  • LAN and WAN Ports: Includes one GbE RJ45 LAN port and one GbE RJ45 WAN port for network extension and connectivity.

• Power and Management:

  • USB Type-C Power: Powered via USB Type-C with a 5V DC/3A input for simplicity and efficiency.

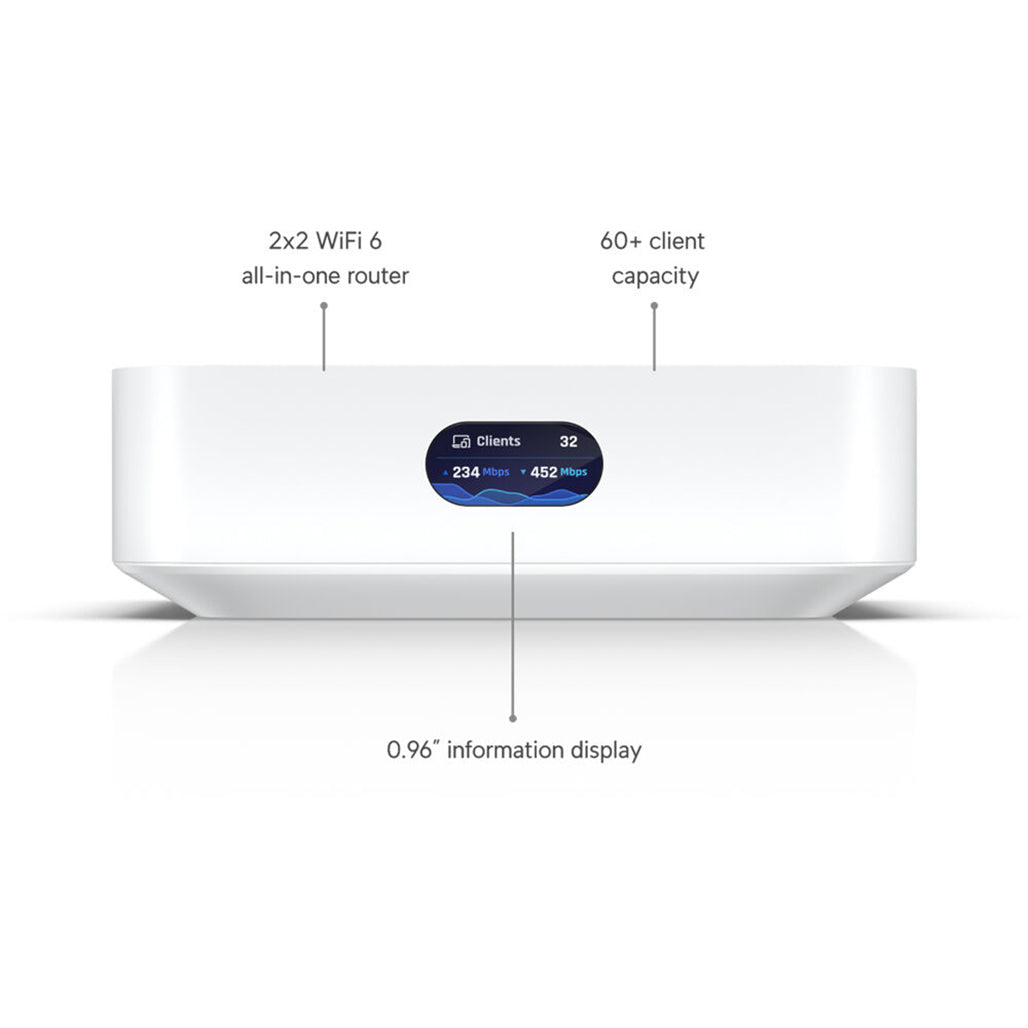

  • Real-Time Status Display: Features a 0.96" LCM display for immediate status updates.

• Gateway Functionality:

  • Advanced Security: Includes application-aware firewall rules, content filtering, and VPN support.
  • Networking Features: Supports VLAN/subnet-based traffic segmentation, DHCP relay, and more.

Specifications:

• Dimensions:

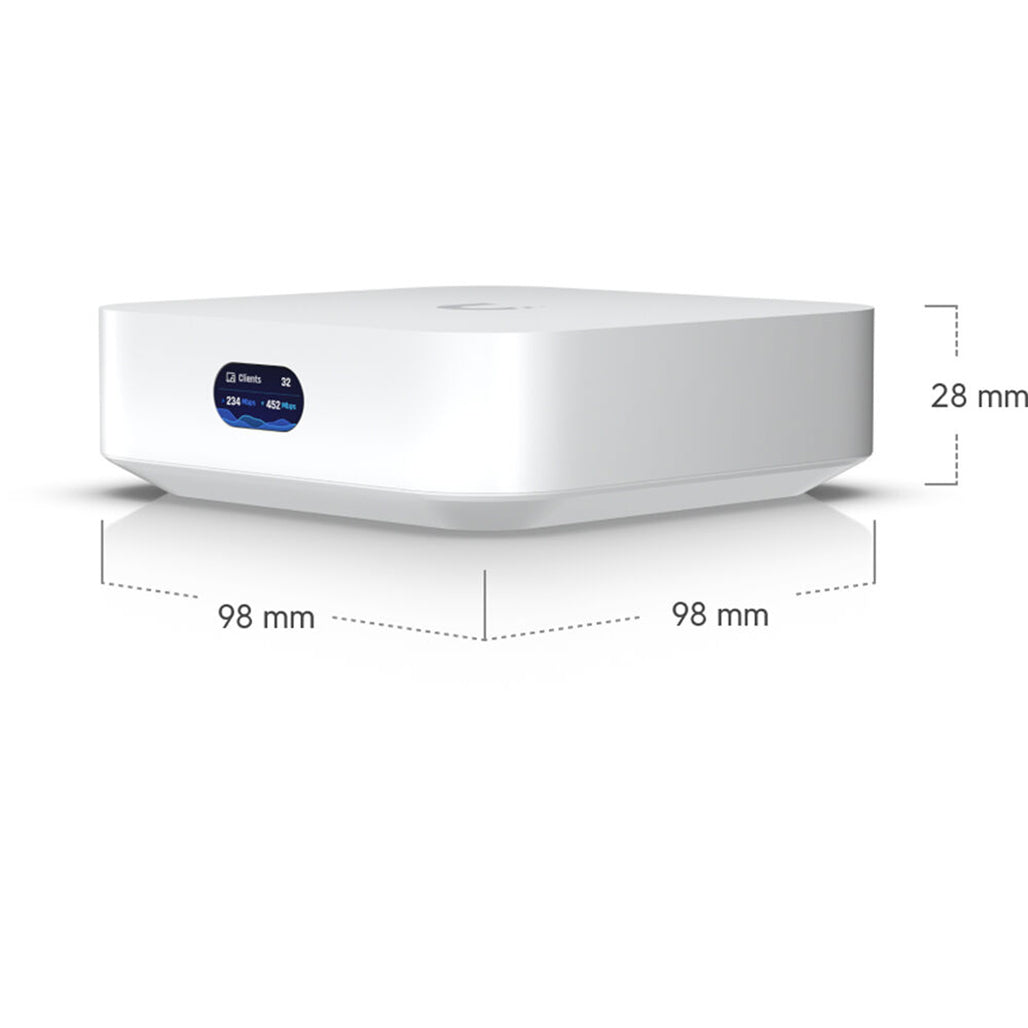

  • Size: 98 x 98 x 30 mm (3.6 x 3.6 x 1.2 inches)
  • Weight: 302 g (10.7 oz)
• Enclosure Material: Polycarbonate
• Management Interface: Ethernet, Bluetooth
• Networking Interface:
  • LAN: (1) GbE RJ45 port
  • WAN: (1) GbE RJ45 port
• Power Method: USB Type-C (5V DC/3A)
• Max. Power Consumption: 10W
• Max. TX Power:
  • 2.4 GHz: 22 dBm
  • 5 GHz: 25 dBm
• MIMO:
  • 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
  • 5 GHz: 2 x 2 (DL/UL MU-MIMO)
• Throughput Rate:
  • 2.4 GHz: 573.5 Mbps
  • 5 GHz: 2.4 Gbps
• Antenna Gain:
  • 2.4 GHz: 4 dBi
  • 5 GHz: 5.15 dBi
• Antennas:
  • (2) Internal 2.4G/5G WiFi Dual-Band Antennas
  • (1) Internal 2.4G Single-Band BT Antenna
• LCM Display: 0.96" status display
• Button: Factory reset
• Ambient Operating Temperature: -10 to 45° C (14 to 113° F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• Certifications: CE, FCC, IC
• Gateway Features:
  • Performance: Internet quality and outage reporting
  • Security: Application-aware firewall, content filtering, and VPN options
  • Networking: SD-WAN, WireGuard, L2TP, and OpenVPN support

Conclusion: The Ubiquiti UniFi Express offers a compact yet powerful solution for managing and enhancing network connectivity. With its integrated WiFi 6 access point capabilities, advanced security features, and real-time status monitoring, it is well-suited for a variety of networking environments. Whether used as a standalone device or as part of a larger UniFi setup, it provides reliable performance and easy management for both residential and small business applications.
