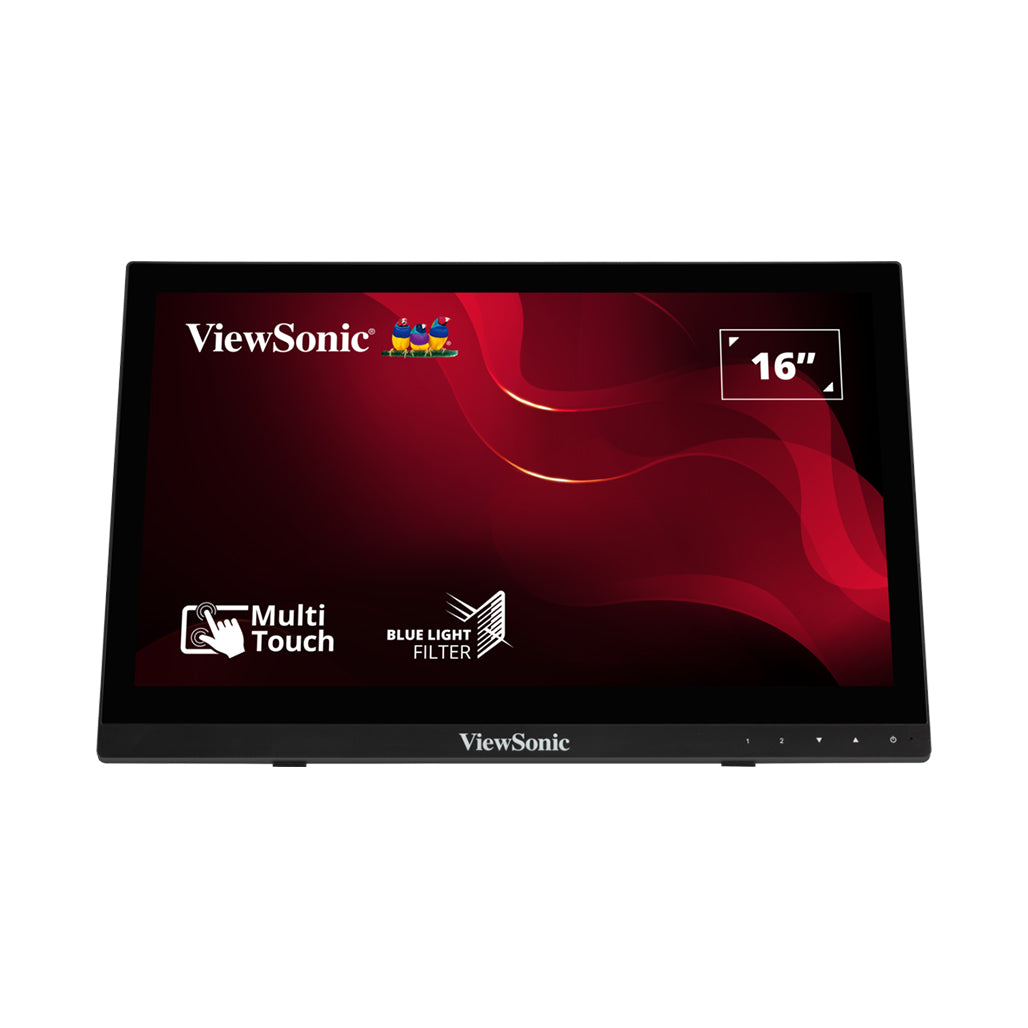

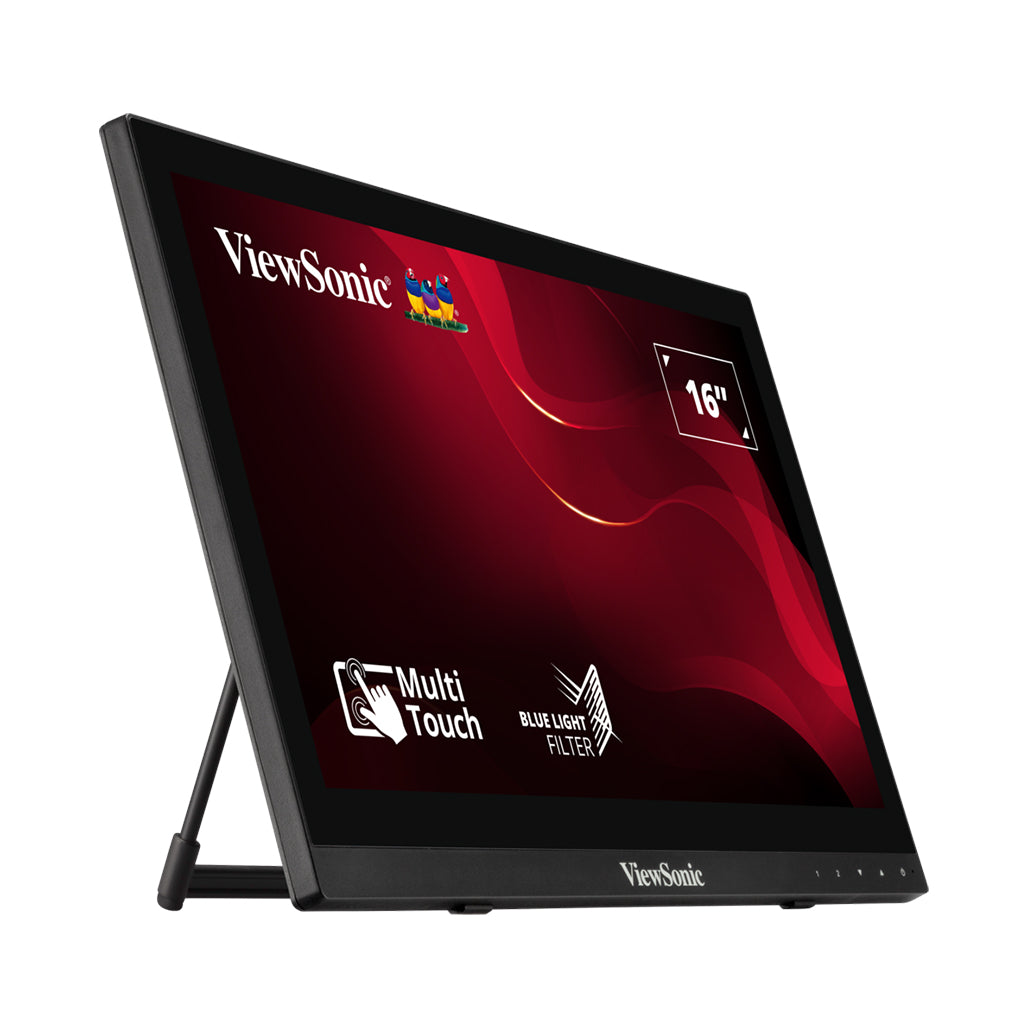

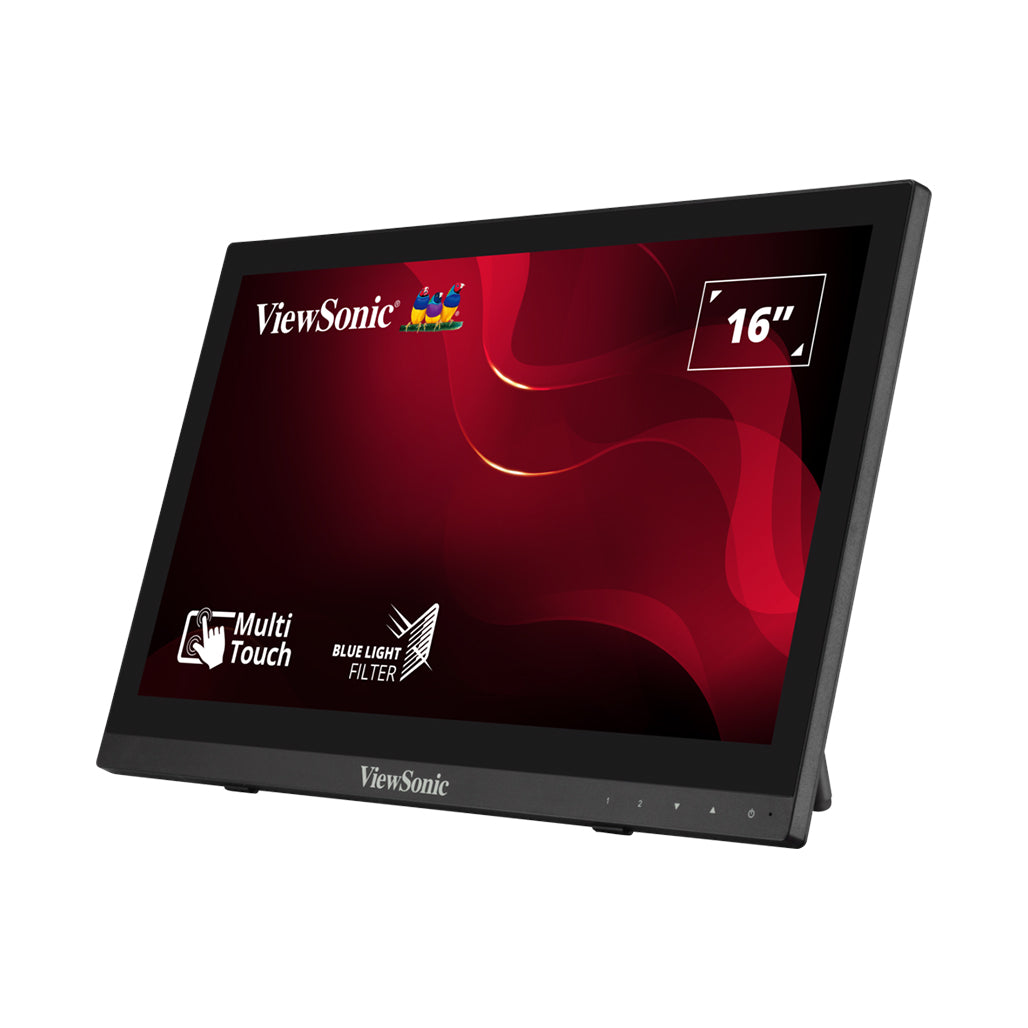

The ViewSonic TD1630-3 is a highly responsive 16-inch touch screen monitor designed for seamless interaction in commercial, business, and personal environments. Featuring 10-point projected capacitive touch technology, this display allows for precise multi-touch functionality, making it ideal for interactive applications, POS systems, kiosks, and office productivity. With a durable scratch-resistant screen, this monitor ensures long-lasting performance in high-traffic settings while maintaining a sleek, modern design. The combination of a WXGA 1366 x 768 resolution and LED backlighting delivers clear visuals with consistent brightness, ensuring an optimal viewing experience.
Designed with versatility in mind, the TD1630-3 supports both HDMI and VGA connectivity, allowing seamless integration with various systems and devices. Its ergonomic stand enables tilting and flat placement for maximum comfort and adaptability. Dual integrated speakers provide a built-in audio solution, enhancing multimedia engagement without the need for external accessories. Additionally, cross-platform compatibility with Windows and Linux operating systems ensures broad usability across multiple environments, making it a reliable choice for business and professional applications.
Key Features
- 10-Point Projected Capacitive Touch – Enables smooth and responsive multi-touch control, ideal for interactive applications.
- Durable, Scratch-Resistant Screen – Equipped with a protective glass faceplate to withstand frequent use in public and commercial spaces.

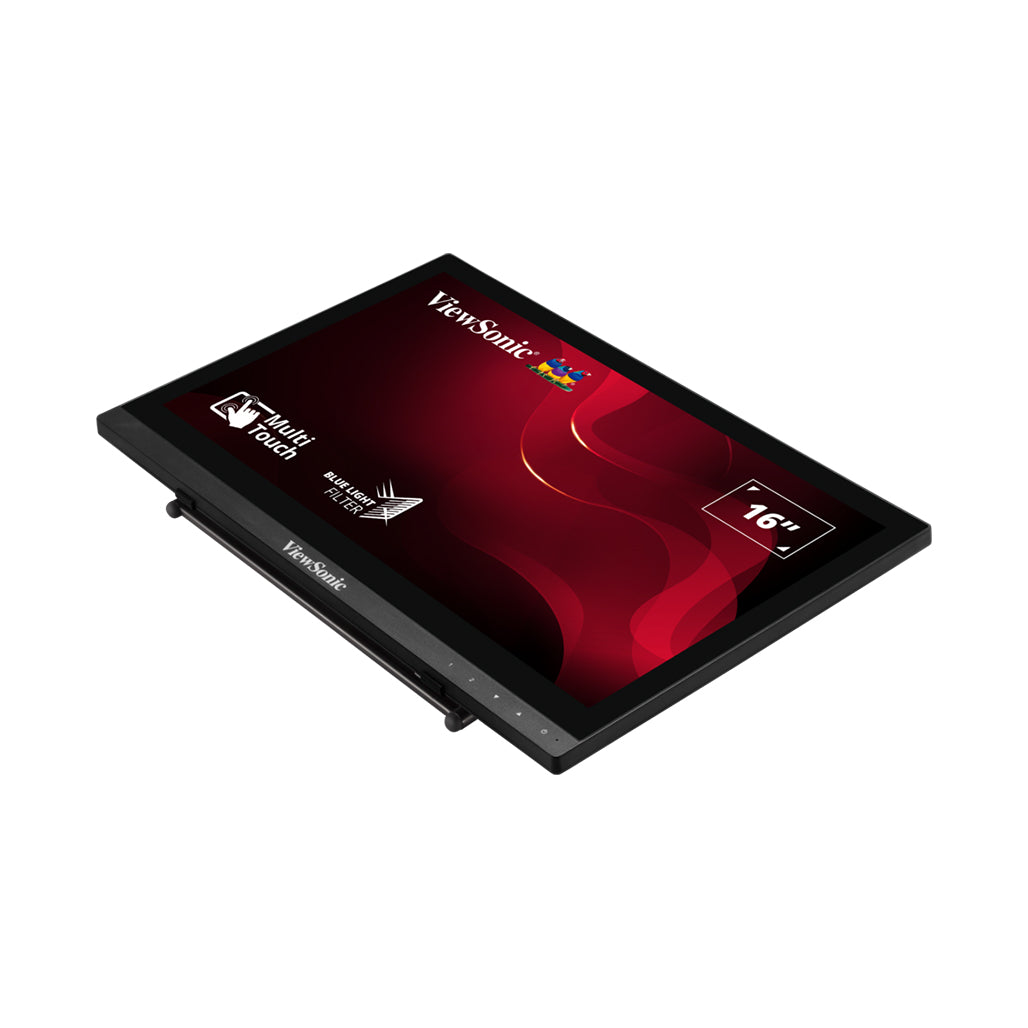

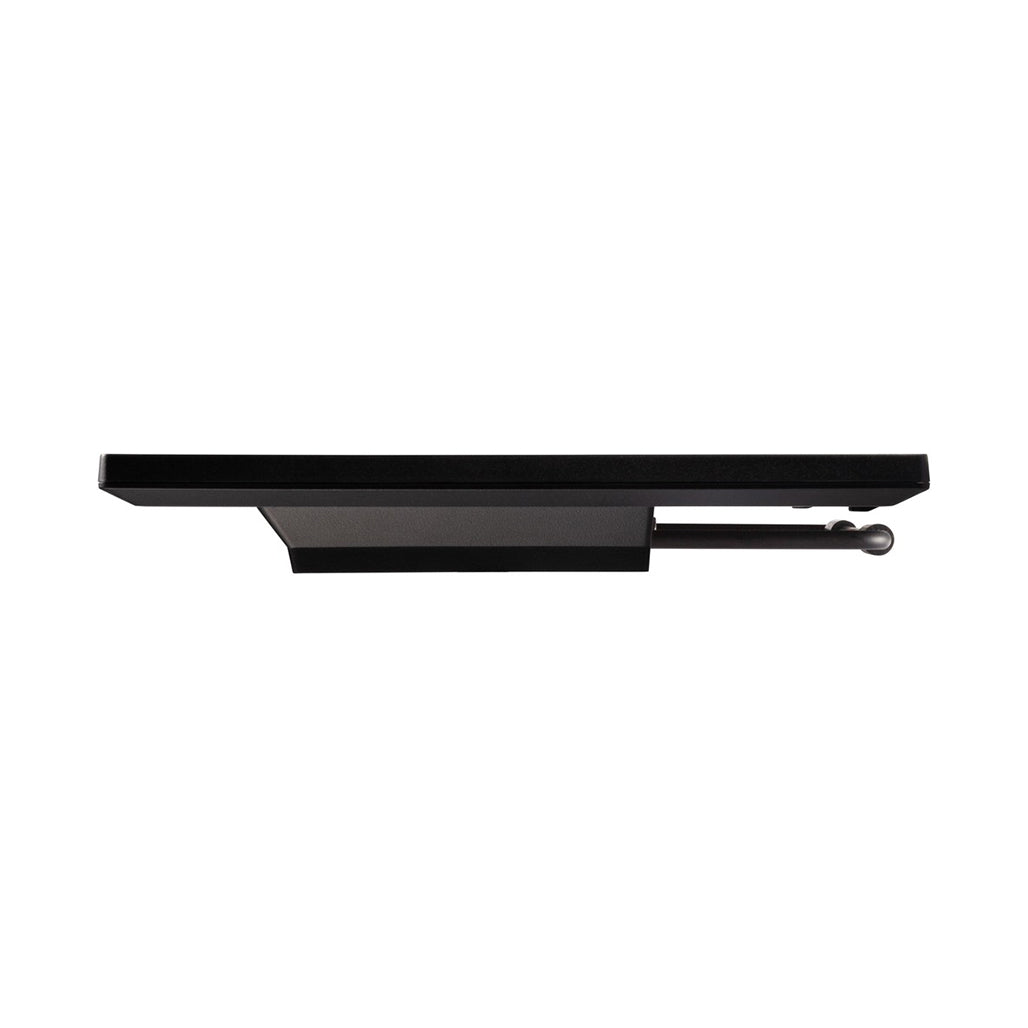

- Ergonomic Stand Design – Adjustable tilt and flat placement options for customized viewing angles.
- Versatile Connectivity – Includes HDMI and VGA inputs for flexible device compatibility.
- Cross-Platform Compatibility – Supports Windows 7/8/10/11 and Linux, ensuring seamless integration with various systems.
- Dual Integrated Speakers – Delivers built-in audio for enhanced multimedia experiences.
- Enhanced Viewing Comfort – A blue light filter minimizes eye strain for extended usage.

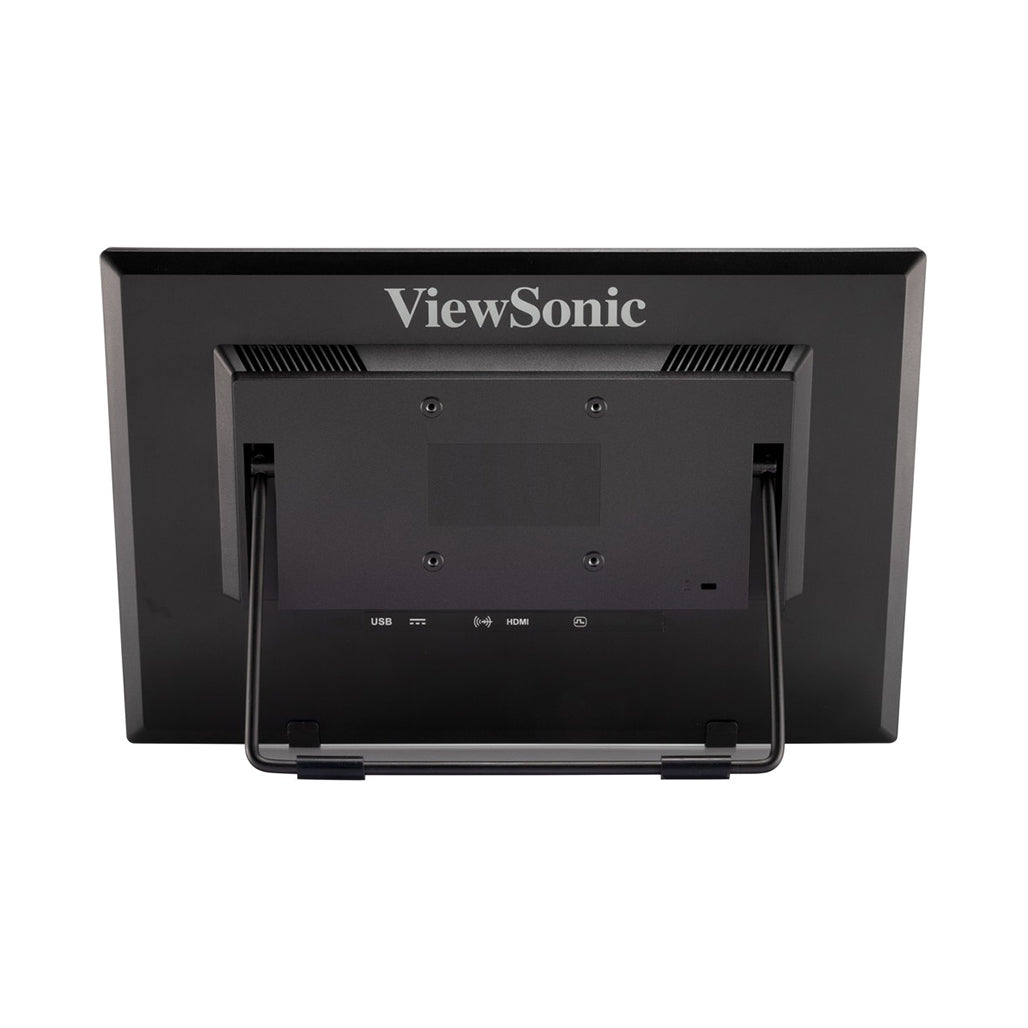

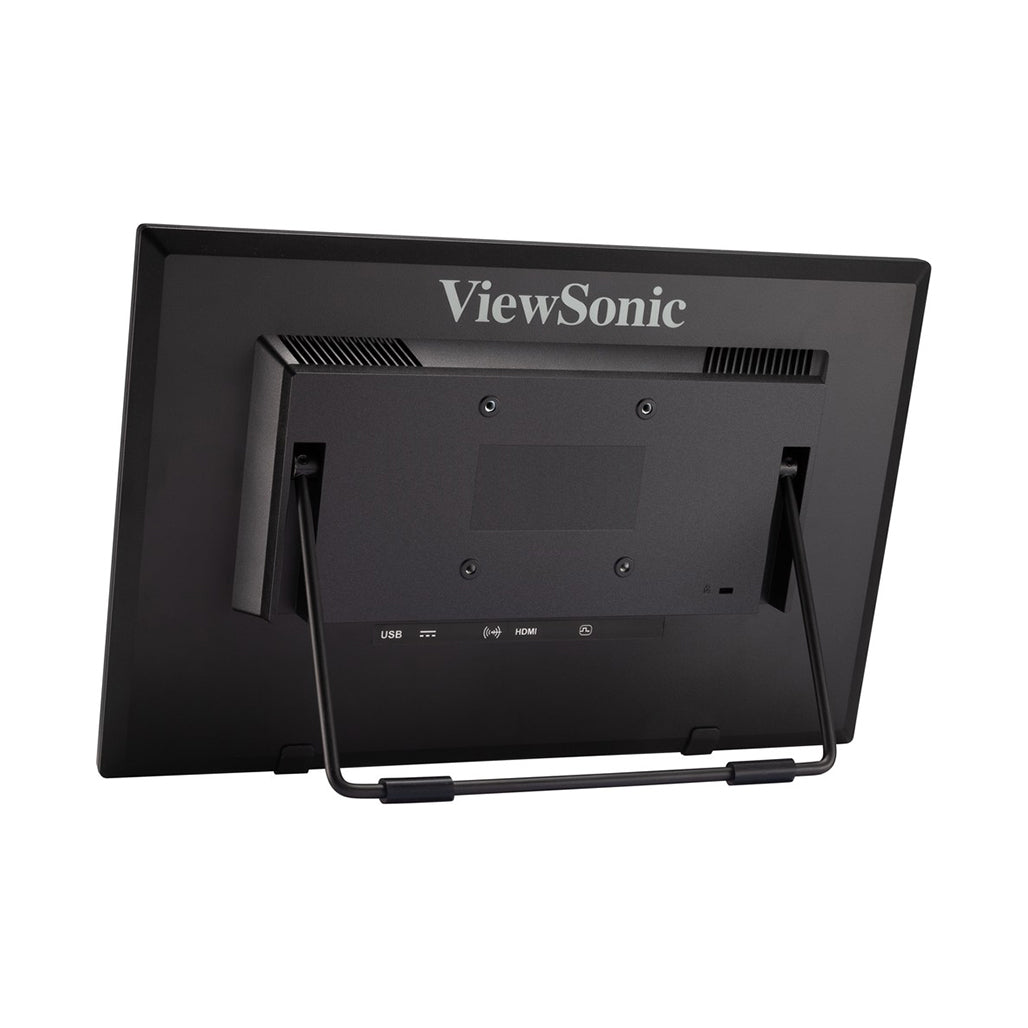

- VESA-Compatible Mounting – Allows convenient installation with standard VESA mounts.
Specifications
Display
- Size: 16" (15.6" viewable)
- Panel Type: TN Technology
- Resolution: 1366 x 768 (WXGA)
- Contrast Ratio: 500:1 (static), 10M:1 (dynamic)
- Brightness: 190 cd/m² (typical)
- Color Support: 262K colors (6-bit true)
- Aspect Ratio: 16:9
- Response Time: 12ms
- Viewing Angles: 90º horizontal, 60º vertical
- Backlight Life: 15,000 hours (minimum)
- Refresh Rate: 60Hz
- Touch Technology: 10-point projected capacitive touch
- Surface Treatment: Glossy, 7H hardness coating
- Cover Glass Thickness: 0.83mm
Compatibility
- Maximum PC Resolution: 1366x768
- Maximum Mac® Resolution: 1366x768
- Supported Operating Systems: Windows 7/8/10/11 (certified), Linux Kernel 4.X/3.X (tested)

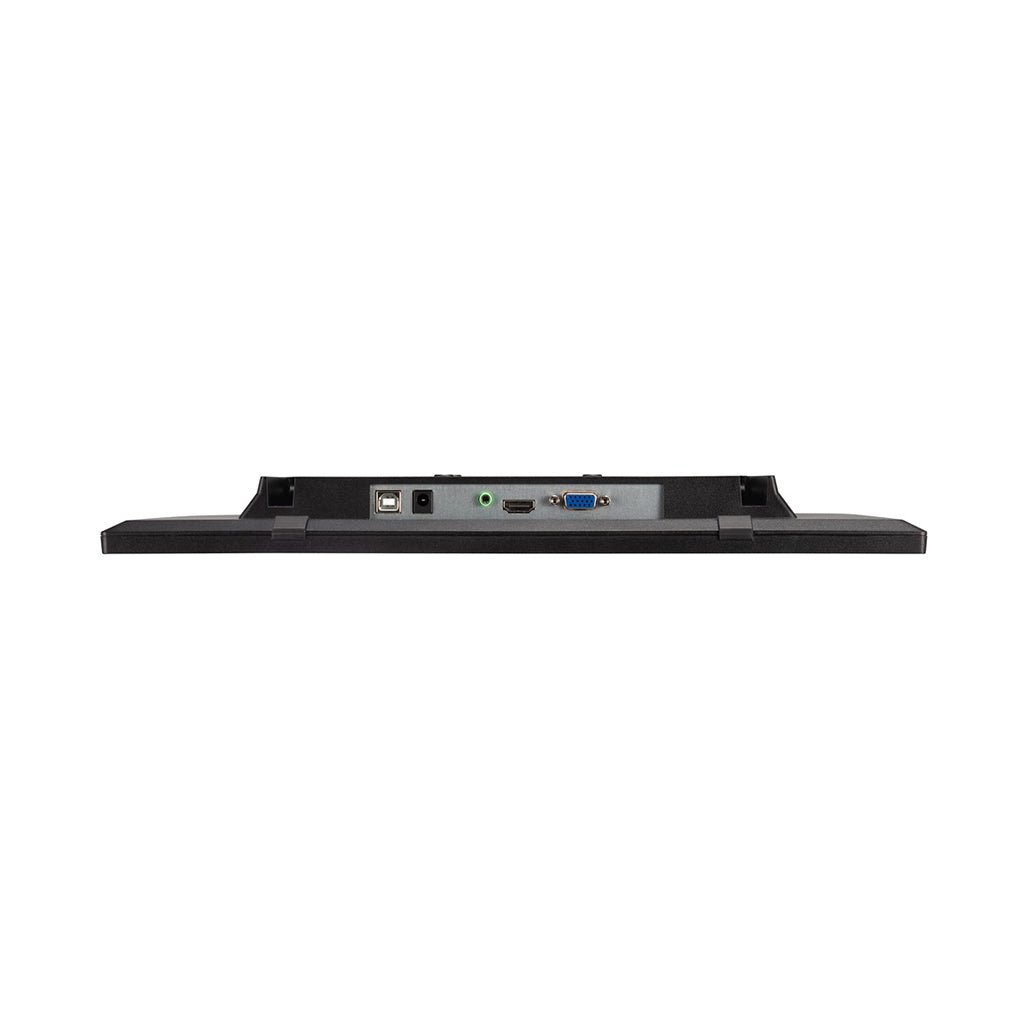

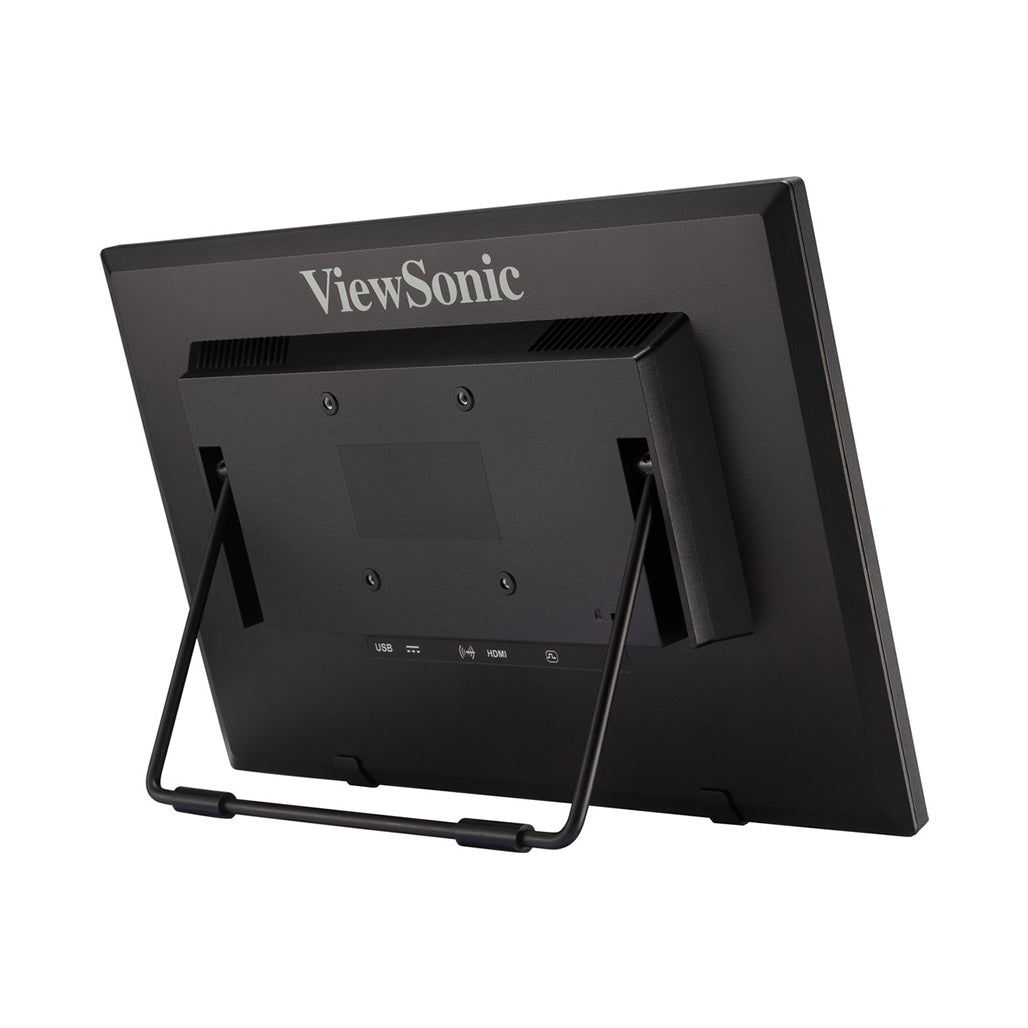

Connectivity
- VGA: 1
- USB 2.0 Type B: 1
- 3.5mm Audio In: 1
- HDMI 1.4: 1
- Power Input: DC Socket (Center Positive)
Audio
- Integrated Speakers: 1W x 2
Power
- Consumption (Typical): 5.5W
- Consumption (Max): 6W
- Voltage: AC 100-240V
- Standby Power: 0.5W
- Power Supply: External Adapter
Additional Features
- Kensington Lock Slot: Yes
- Physical Controls: Power, Up, Down, Menu, Select
- On-Screen Display Menu: Includes brightness, contrast, input select, color adjustments, and more
Mounting & Ergonomics
- VESA Compatibility: 75 x 75 mm

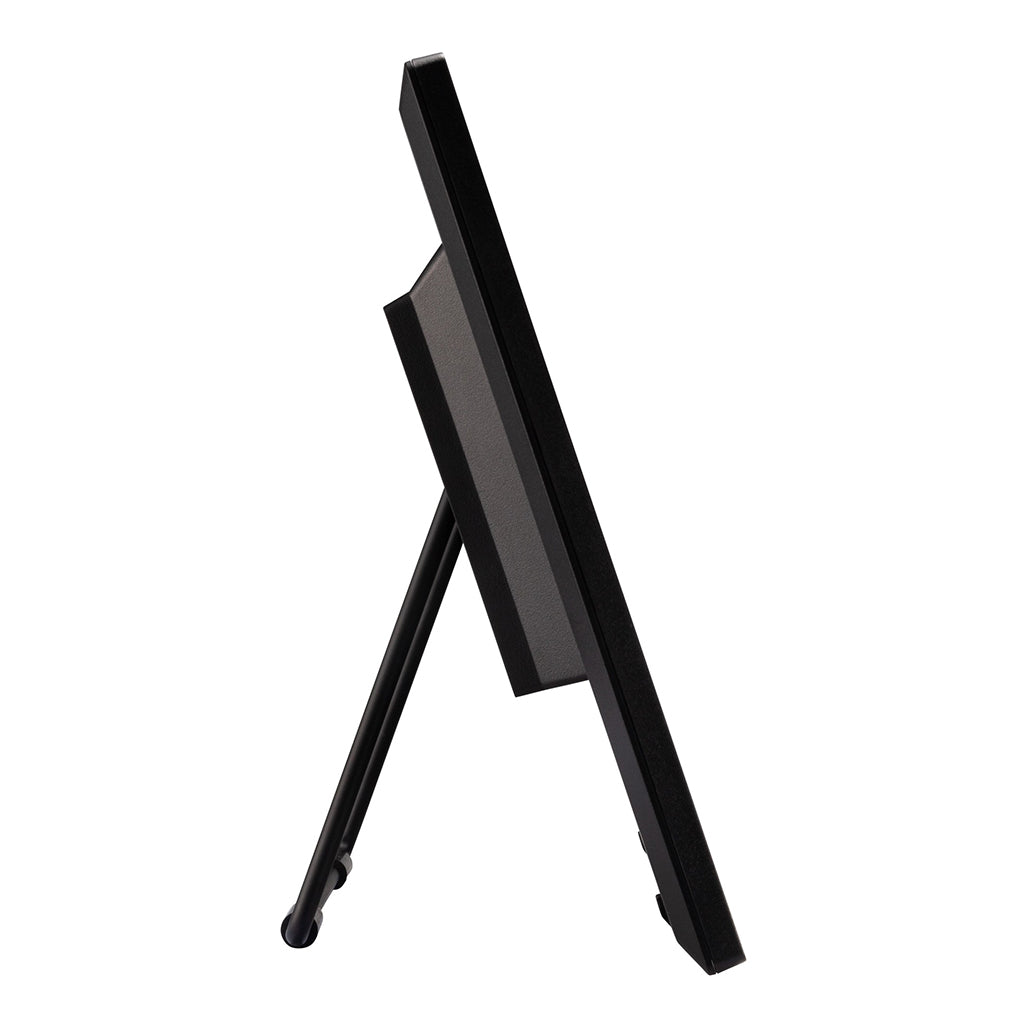

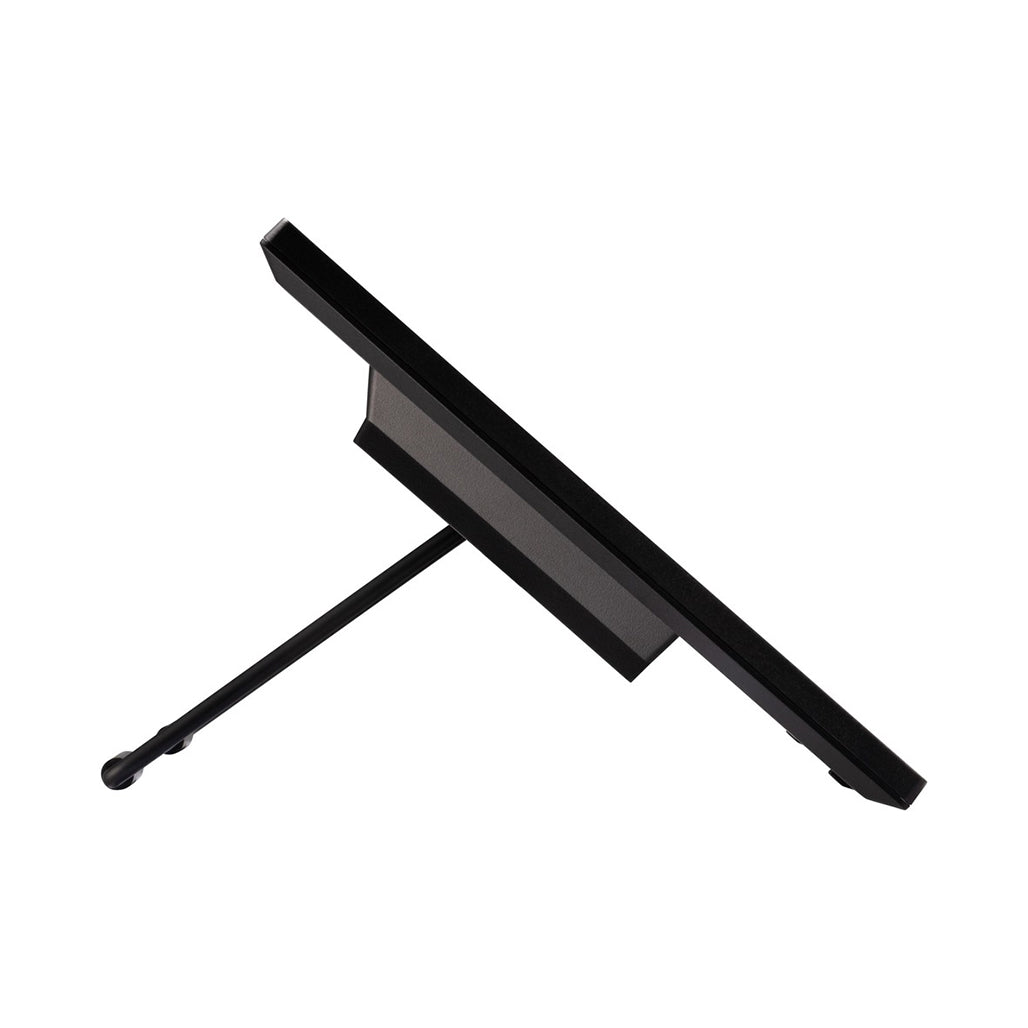

- Tilt Adjustment: 15º to 50º
Weight & Dimensions
- Net Weight: 2.9 lbs (1.3 kg)
- Gross Weight: 5.5 lbs (2.5 kg)
- Physical Dimensions: 14.9 x 9.7 x 1.5 inches (379 x 247 x 37 mm)
- Packaging Dimensions: 17.8 x 15.3 x 3.4 inches (453 x 389 x 86 mm)
Conclusion
The ViewSonic TD1630-3 combines precision touch control, durable construction, and versatile connectivity to deliver a highly interactive experience in various settings. Designed for seamless integration into business, education, retail, and personal environments, this compact 16-inch display enhances productivity and engagement. With cross-platform support, an ergonomic design, and a scratch-resistant screen, this monitor ensures long-term reliability and ease of use. Whether deployed for interactive kiosks, office work, or point-of-sale applications, the TD1630-3 provides a responsive and immersive display solution with modern connectivity options.
