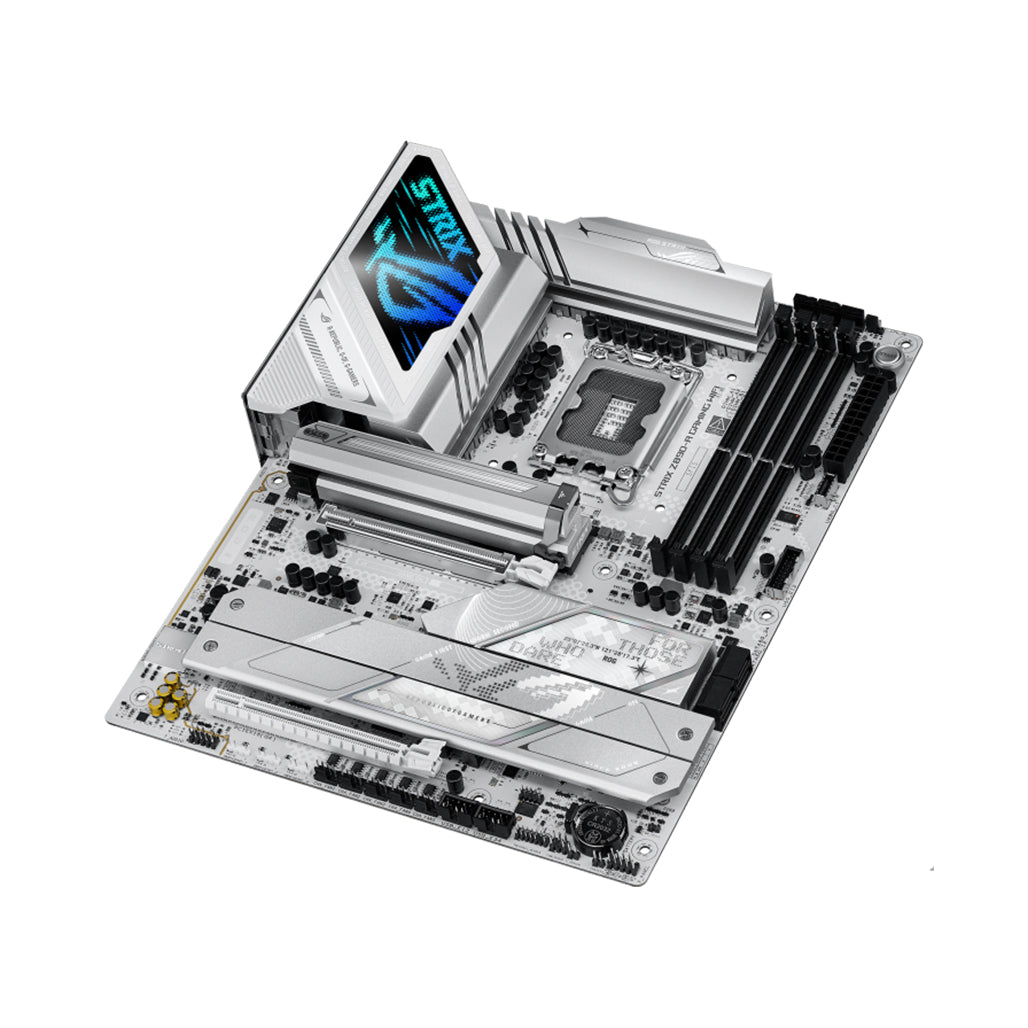

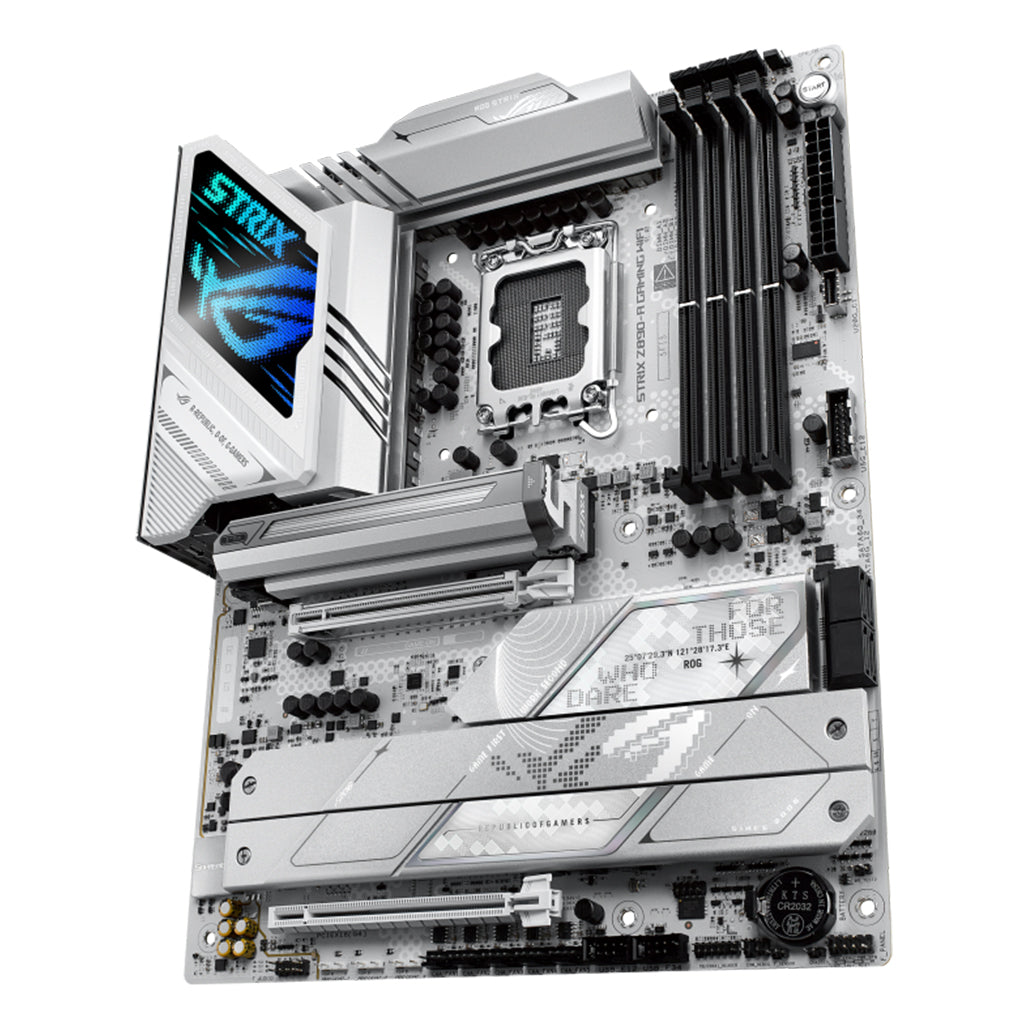

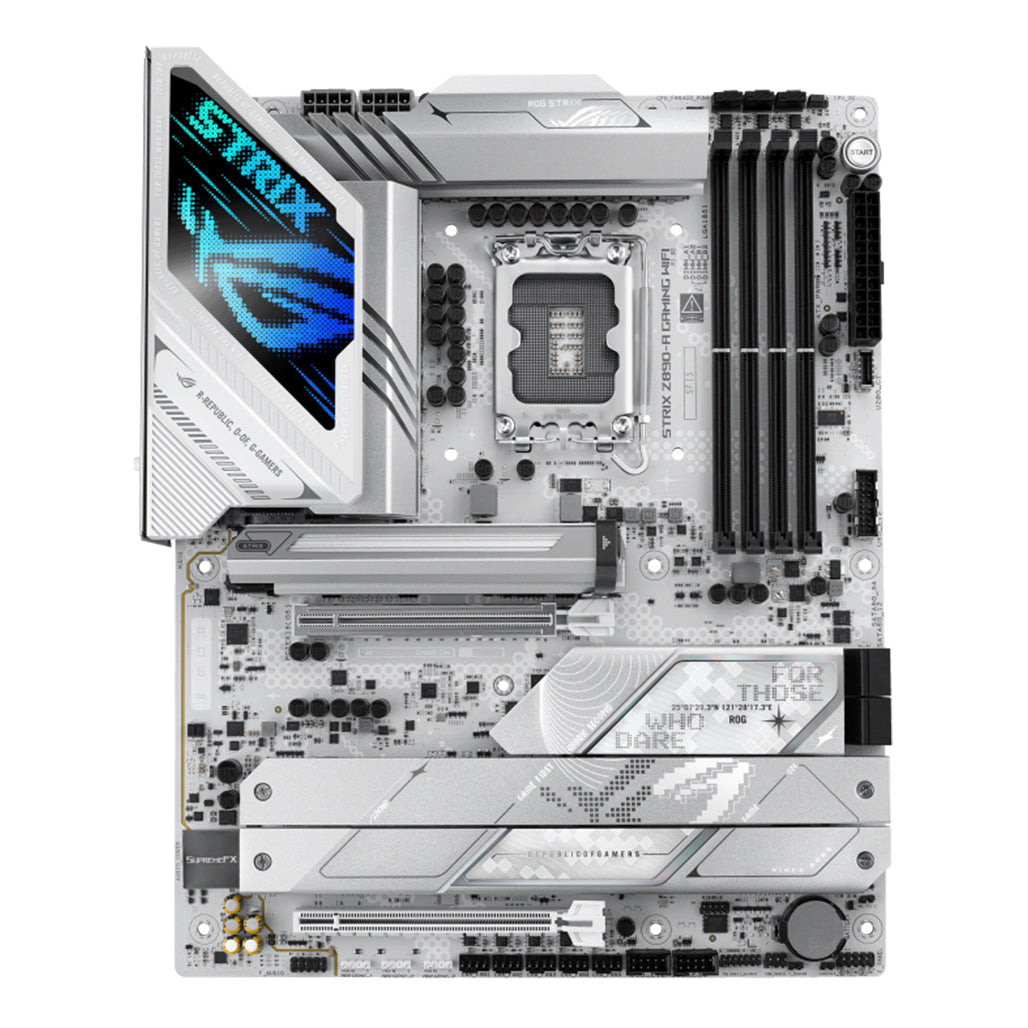

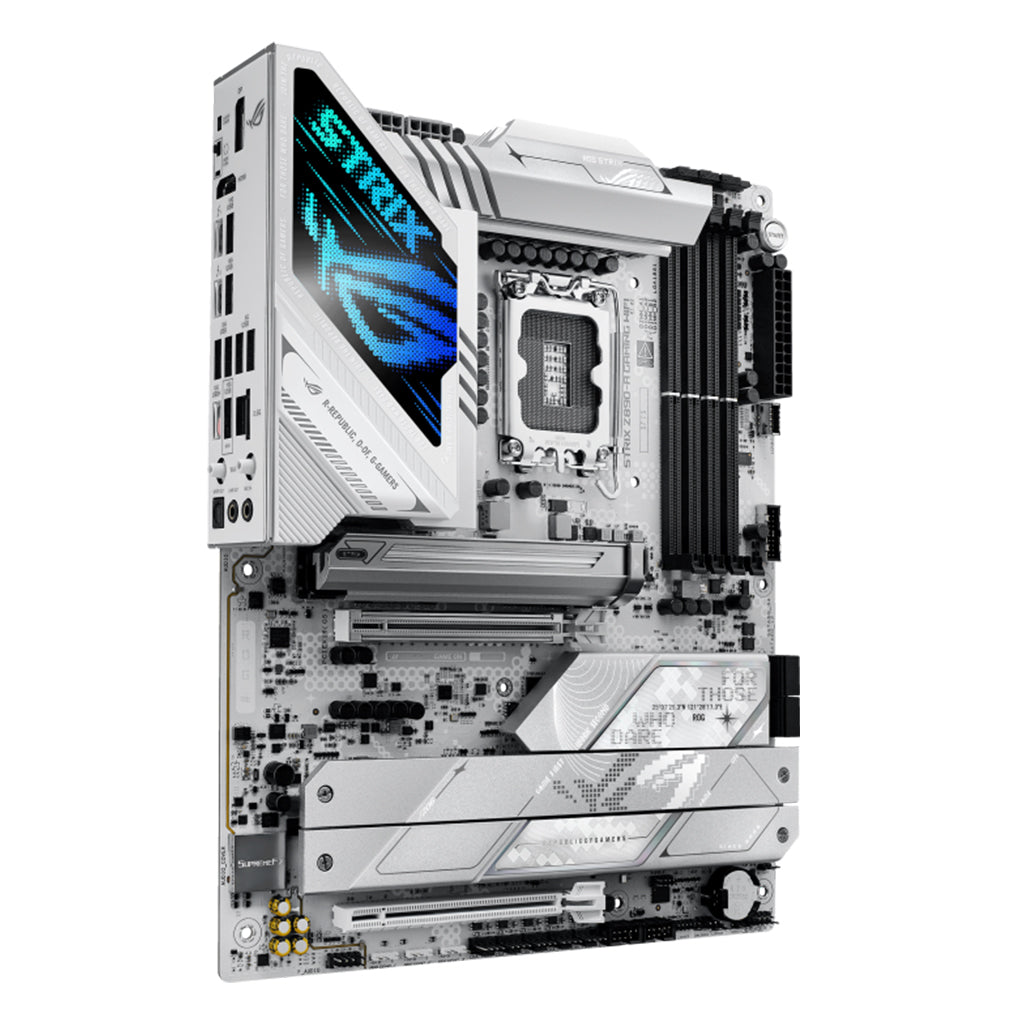

ASUS ROG STRIX Z890-A - GAMING WIFI Motherboard – Intel Z890, DDR5, Wi-Fi 7, PCIe 5.0, USB 20Gbps

Designed for PC builders aiming to maximize gaming potential and system performance, the ASUS ROG STRIX Z890-A GAMING WIFI motherboard is engineered around the powerful Intel® Z890 chipset and built to support the latest Intel® Core™ Ultra processors (Series 2). This advanced ATX motherboard brings next-generation features like PCIe 5.0, DDR5 memory support up to 9066+MT/s (OC), and ultra-fast storage with five M.2 slots and four SATA ports. Gamers and creators alike benefit from its extensive connectivity, premium audio capabilities, and enhanced thermal solutions, making it a future-ready platform for high-performance computing.

Support for Wi-Fi 7 ensures cutting-edge wireless connectivity, delivering transfer speeds up to 5.8Gbps across 2.4GHz, 5GHz, and 6GHz bands. The integration of Thunderbolt™ 4 ports, USB 20Gbps front-panel Type-C® support, and high-efficiency power delivery make this motherboard ideal for enthusiasts, overclockers, and power users. With robust Q-Design features and Aura Sync RGB compatibility, the ROG STRIX Z890-A GAMING WIFI also streamlines DIY installation and customization, blending aesthetics with unmatched performance.

Key Features:

• Next-Gen Processor Compatibility:
  Intel® Core™ Ultra Processors (Series 2) are supported, along with Intel® Turbo Boost Technologies 2.0 and 3.0, ensuring efficient and high-performance CPU operation.

• DDR5 Memory Performance:
  With four DIMM slots supporting up to 256GB of DDR5 memory and speeds surpassing 9066MT/s (OC), faster multitasking and gaming responsiveness are enabled.

• PCIe 5.0 & M.2 Storage Expansion:
  The board includes a PCIe 5.0 x16 slot for next-gen graphics cards, plus five M.2 slots for blazing-fast NVMe storage with RAID 0/1/5/10 support.

• Wi-Fi 7 & Bluetooth® v5.4 Connectivity:
  Future-proof wireless networking is achieved with Wi-Fi 7 speeds up to 5.8Gbps, enhanced by 2x2 antenna configuration and support for all major frequency bands.

• Thunderbolt™ 4 & USB 20Gbps:
  Two Thunderbolt™ 4 ports on the rear I/O and a USB 20Gbps front header provide high-speed data transfer and flexible peripheral connectivity.

• ROG SupremeFX Audio System:
  Premium ALC4080 audio codec delivers 7.1 surround sound, 120 dB SNR stereo output, and includes spatial audio-ready front panel support.

• Robust Cooling & DIY Features:
  Equipped with multiple fan headers, M.2 heatsinks, and BIOS FlashBack™, alongside ASUS Q-Design tools for easier component installation.

• Customizable RGB Lighting:
  Aura Sync support with Addressable Gen 2 headers allows users to create synchronized lighting effects across compatible components.

Specifications:

Model: ROG STRIX Z890-A GAMING WIFI
CPU: Intel® Core™ Ultra Processors (Series 2), Intel® Turbo Boost Tech 2.0/3.0
Chipset: Intel® Z890
Memory: 4 x DDR5 DIMM, up to 256GB, 9066+MT/s (OC), Non-ECC, Dual Channel
Graphics Outputs: 1 x DisplayPort 1.4 (8K@60Hz), 1 x HDMI 2.1 (4K@60Hz), 2 x Thunderbolt™ 4
Expansion Slots:

• 1 x PCIe 5.0 x16 (CPU)

• 1 x PCIe 4.0 x16 (x4 mode) (Chipset)

Storage:

• 5 x M.2 (1x PCIe 5.0 x4, 3x PCIe 4.0 x4, 1x PCIe 4.0 x4 & SATA)

• 4 x SATA 6Gb/s

Networking:

• 1 x Intel® 2.5Gb Ethernet, ASUS LANGuard

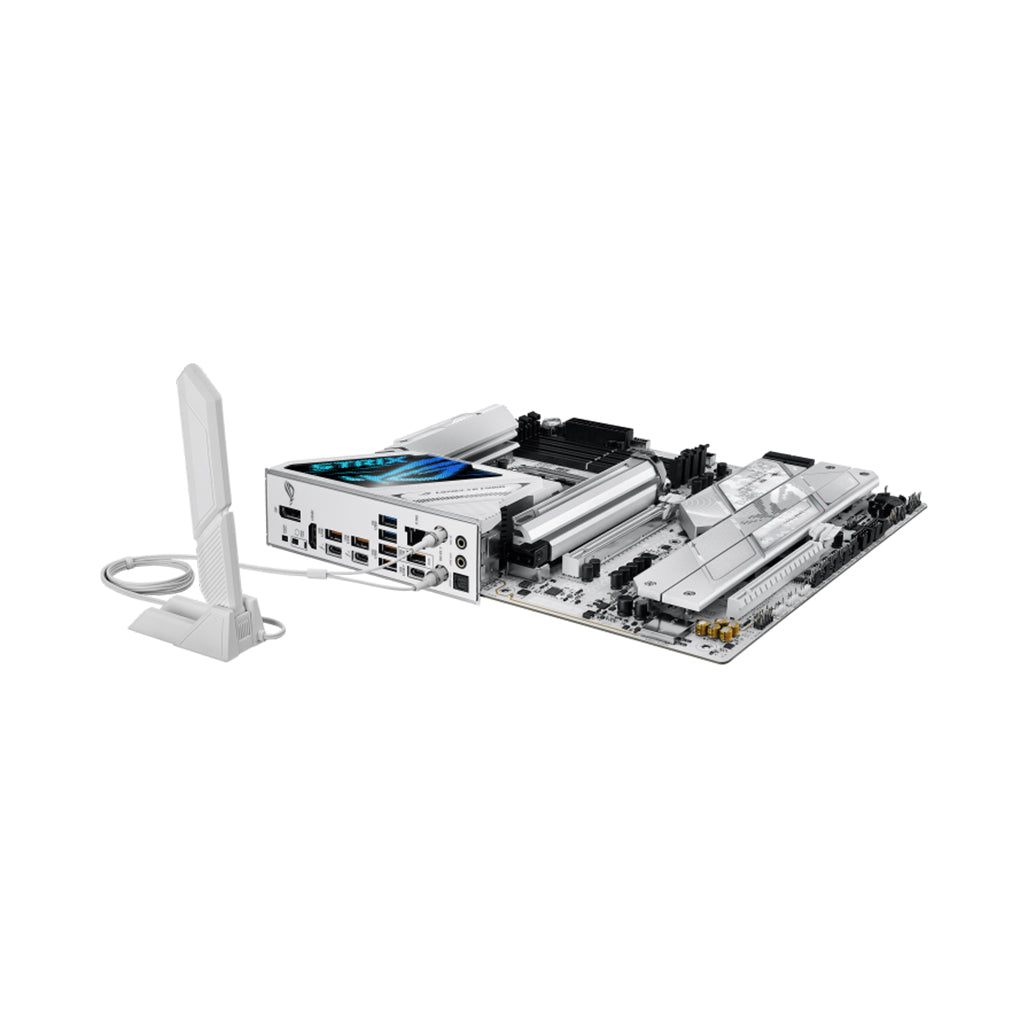

• Wi-Fi 7 (802.11be, 2x2, 2.4/5/6GHz), Bluetooth® v5.4

USB Ports:

• Rear: 2 x Thunderbolt™ 4 (USB-C®), 6 x USB 10Gbps (5x Type-A, 1x Type-C® w/ 30W fast charge), 2 x USB 5Gbps

• Front: 1 x USB 20Gbps (Type-C®), 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports)

Audio: ROG SupremeFX 7.1 Surround, ALC4080, Optical S/PDIF Out, Savitech SV3H712 AMP, Premium Capacitors

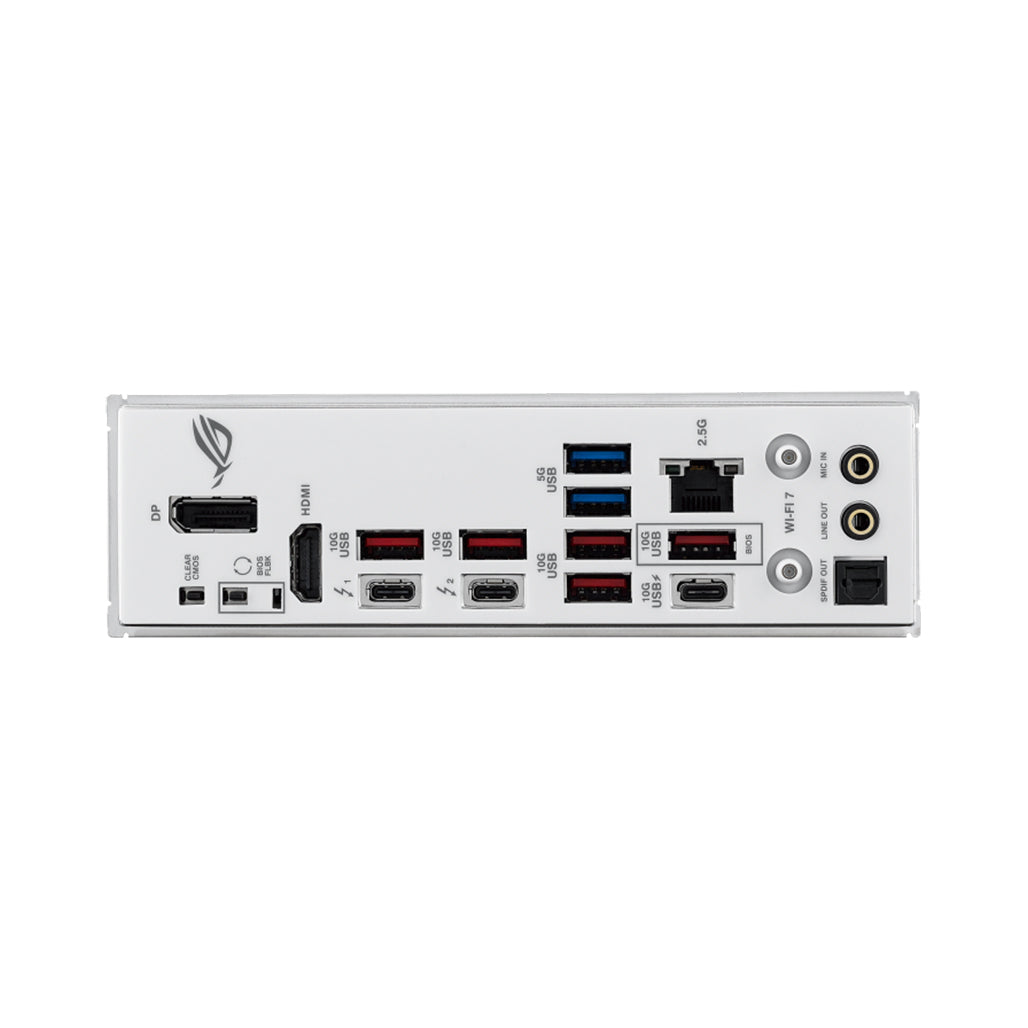

Back Panel I/O: 13 USB ports, HDMI, DisplayPort, Wi-Fi module, Ethernet, Audio jacks, S/PDIF, BIOS FlashBack™, Clear CMOS
Internal I/O: 1 x USB 20Gbps, 1 x USB 5Gbps, 2 x USB 2.0 headers, 5 x M.2, 4 x SATA, Fan headers, Thermal sensor, RGB headers
Form Factor: ATX (30.5 cm x 24.4 cm)
Operating System: Windows 11 (22H2 or later)

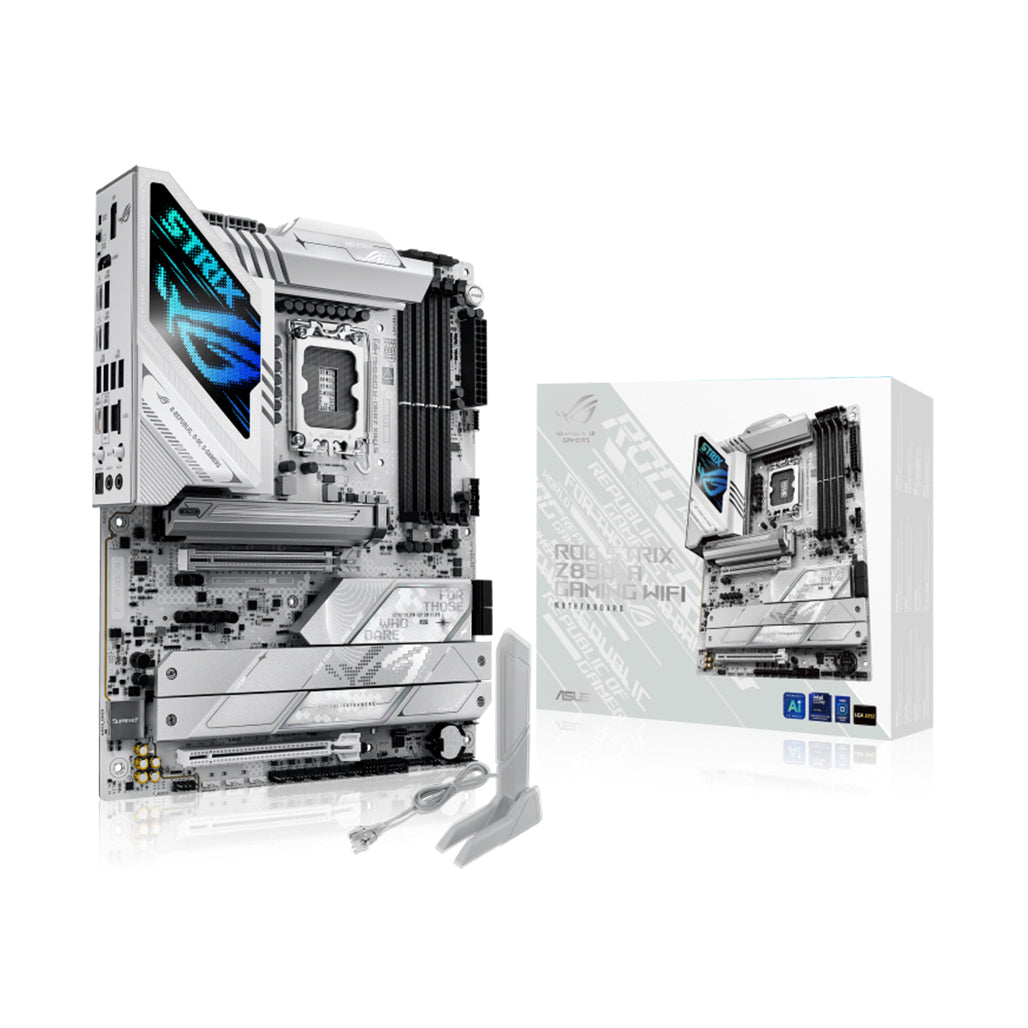

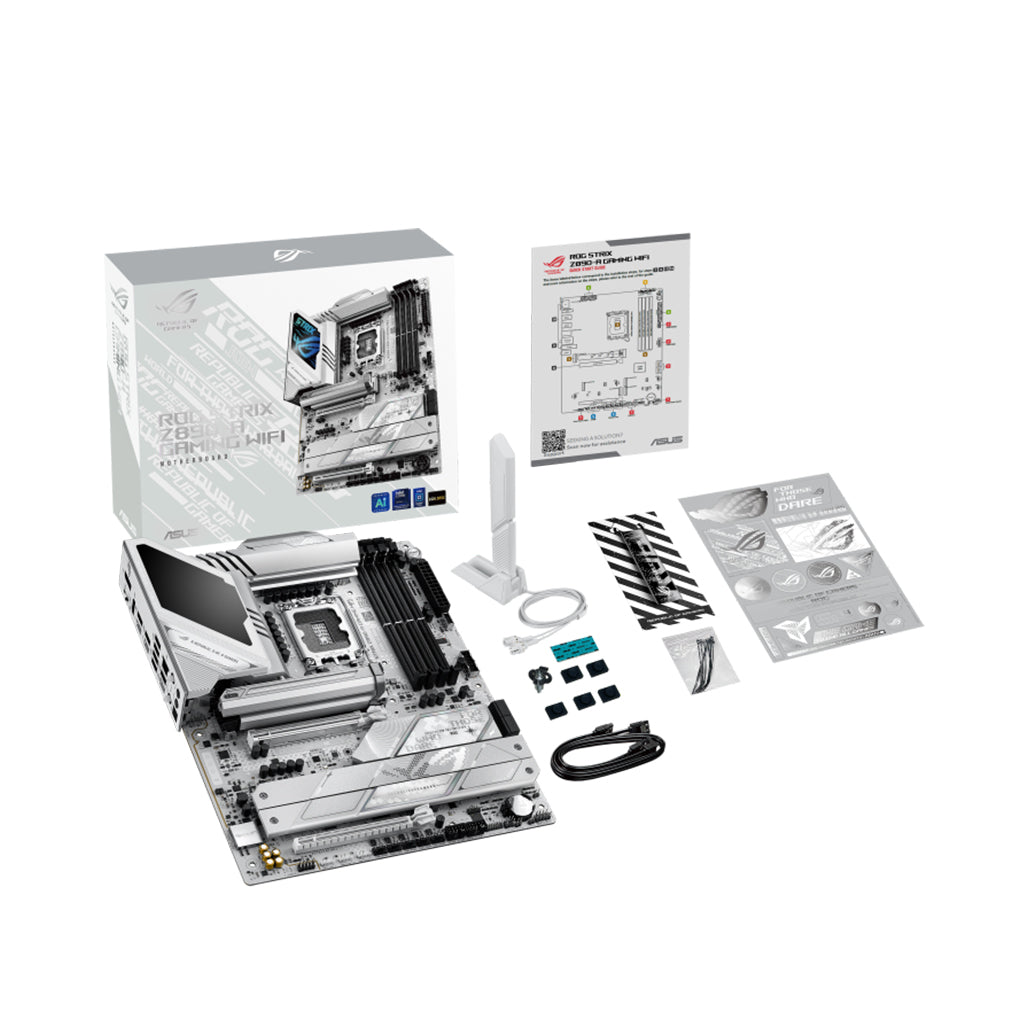

Accessories: WiFi Q-Antenna, SATA Cables, Cable Ties, M.2 Kit, ROG Stickers, Keychain, Quick Guide

Conclusion:

The ASUS ROG STRIX Z890-A GAMING WIFI motherboard has been constructed to meet the needs of competitive gamers, streamers, and power users seeking a future-proof platform. Its support for DDR5 memory, PCIe 5.0, Wi-Fi 7, Thunderbolt™ 4, and cutting-edge cooling and customization tools ensures reliable, high-speed performance under intensive workloads. Equipped with a broad range of connectivity and intelligent design features, this motherboard offers a foundation built for powerful desktops tailored to high-demand environments.
