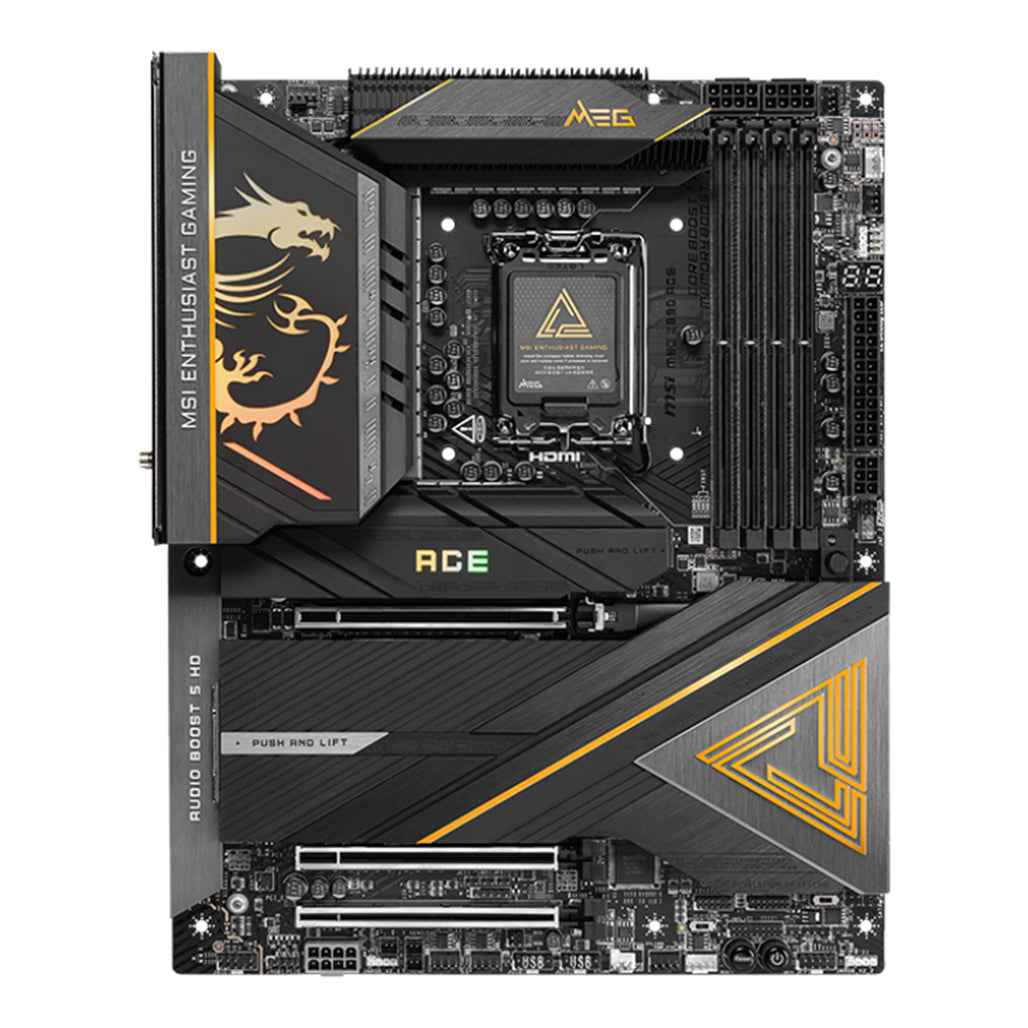

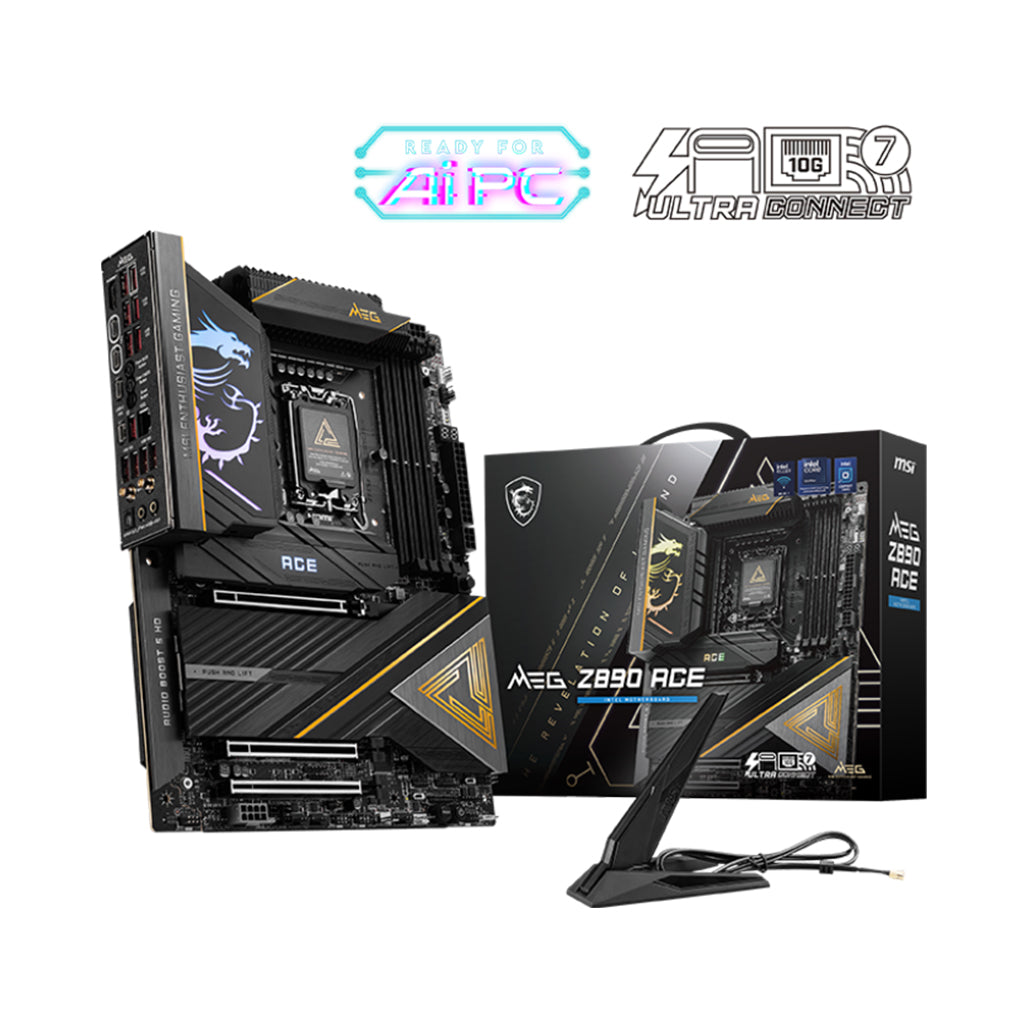

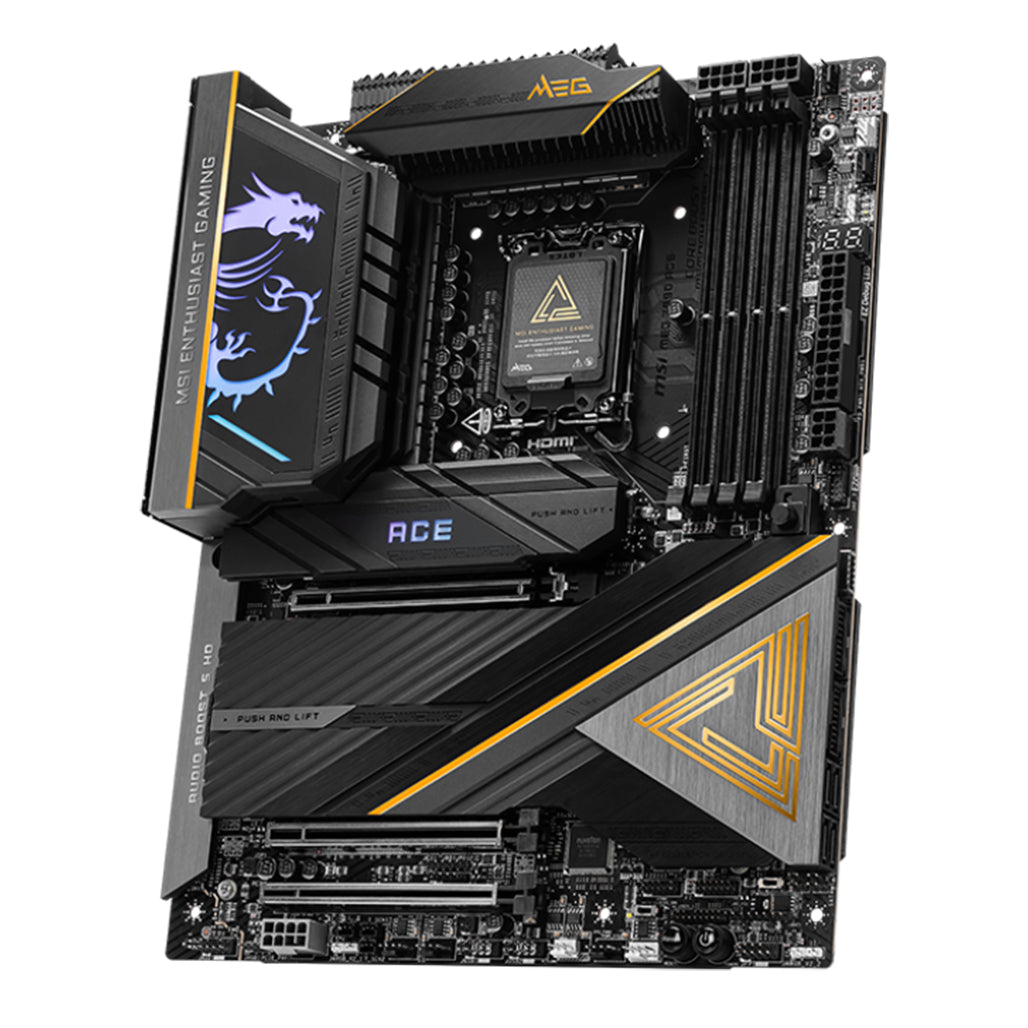

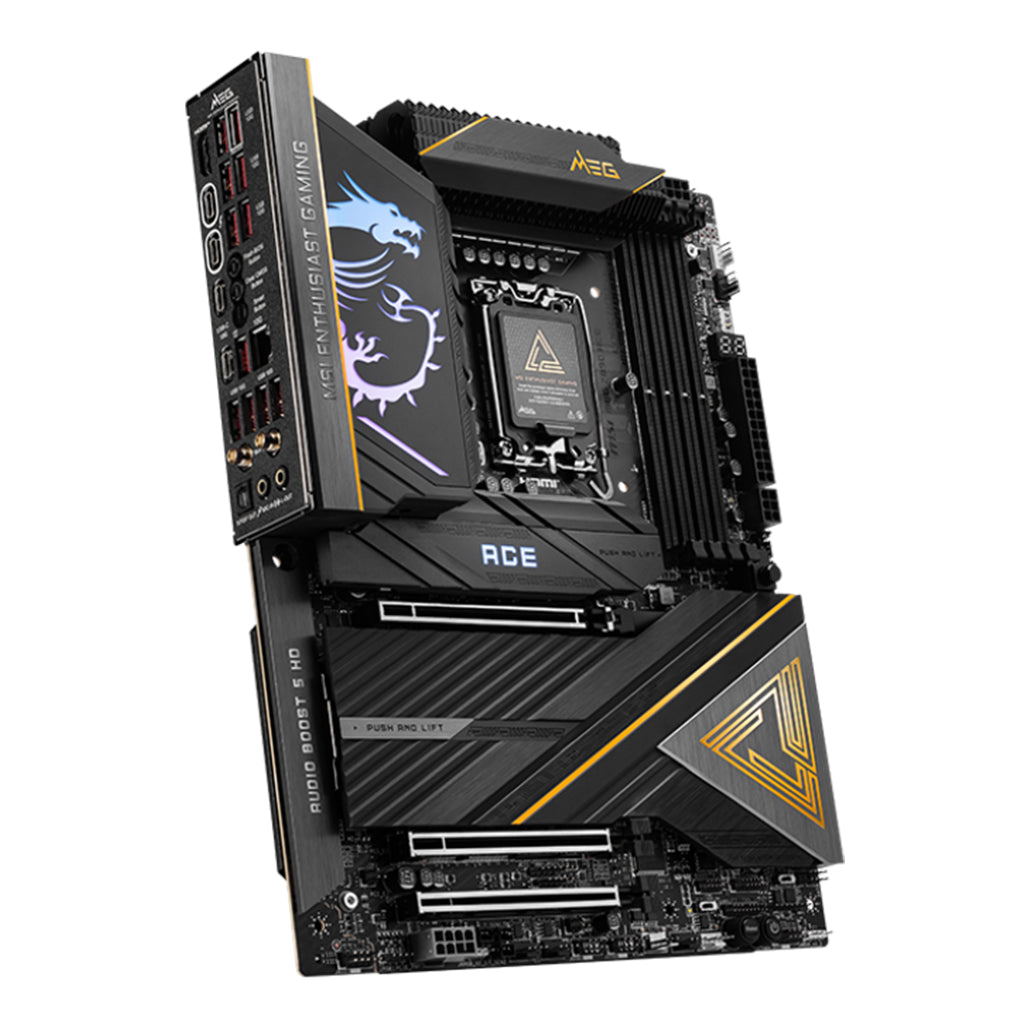

MSI MEG Z890 ACE Motherboard – Intel® Core™ Ultra, DDR5 9200+, Wi-Fi 7, PCIe 5.0, Thunderbolt™ 4, 10G LAN

Designed for elite PC builders and professional users, the MSI MEG Z890 ACE motherboard offers an unmatched foundation for high-performance computing and gaming. Supporting Intel® Core™ Ultra Series 2 processors on the LGA 1851 socket, this advanced ATX motherboard is fully equipped to maximize next-gen performance with support for DDR5 memory up to 9200+ MT/s (OC). An enhanced 24+2+1+1 Duet Rail Power System, 110A SPS, and OC Engine work in synergy with an 8-layer PCB made from 2oz copper and server-grade materials to ensure stable power delivery under extreme workloads. The Frozr Guard thermal system, which includes wavy fin heatsinks, cross heat-pipes, and MOSFET baseplates, keeps components cool and performance consistent.

Engineered for future-proof connectivity and rapid data throughput, the Z890 ACE features dual Thunderbolt™ 4 ports, 10G LAN, Intel® Killer™ Wi-Fi 7, and five onboard M.2 slots, including PCIe Gen 5 compatibility for cutting-edge storage speeds. Users benefit from Audio Boost 5 HD with a premium Realtek® ALC4082 codec and ESS DAC for crystal-clear audio, while PCIe 5.0 x16 slots, front USB 20G with 60W power delivery, and EZ DIY features streamline installation and customization. Whether for demanding creative workloads or competitive gaming, this motherboard delivers peak reliability, performance, and versatility for next-gen desktop systems.

Key Features:

• Intel® Core™ Ultra Support: Built to support the latest Series 2 CPUs on LGA 1851 for unmatched performance in content creation, AI workloads, and gaming.

• DDR5 9200+ MT/s Overclocking: Compatible with extreme memory speeds, it ensures high bandwidth and responsiveness, ideal for multitasking and data-intensive applications.

• 24+2+1+1 Power Phases & Core Boost: Robust digital power design delivers exceptional stability and power efficiency even under maximum load.

• Frozr Guard Thermal Solution: Advanced heat dissipation achieved through wave-fin heatsinks, direct-touch heat pipes, 9W/mK thermal pads, and MOSFET baseplates keeps thermal throttling at bay.

• EZ DIY Features: Tool-free design includes magnetic M.2 Shield Frozr II, PCIe release button, antenna quick-connect, and simplified M.2 clip system.

• Connectivity Hub: Includes Dual Thunderbolt™ 4 ports, 10G LAN, and Wi-Fi 7 to support high-bandwidth networking and lightning-fast external device connections.

• Audio Boost 5 HD: Premium-grade audio powered by ESS DAC and amplifier provides immersive surround sound with high-resolution playback.

• PCIe 5.0 & M.2 Support: Equipped with 3 PCIe x16 slots and 5 M.2 slots, including dual PCIe Gen 5 x4, for ultra-fast graphics and storage solutions.

• USB-C Front Panel with 60W Power Delivery: Allows high-speed data transfer and device charging directly from the front I/O.

• Extreme Storage Versatility: Supports RAID 0/1/5/10 for both SATA and NVMe M.2 storage options.

Specifications:

• Chipset: Intel Z890

• CPU Socket: LGA 1851, supports Intel® Core™ Ultra Series 2

• Memory:

  • 4x DDR5 UDIMM, up to 256GB

  • Supports 9200+ to 4800 MT/s (OC & JEDEC)

  • Intel® XMP 3.0, dual-channel, non-ECC, un-buffered

• Graphics Output:

  • 1x HDMI 2.1 (8K@60Hz)

  • 2x Thunderbolt™ 4 USB-C with DisplayPort 2.1 (4K@120Hz / 8K@60Hz)*

• Expansion Slots:

  • 3x PCI-E x16

    • PCI_E1: Gen 5.0 x16

    • PCI_E2: Gen 5.0 x8

    • PCI_E3: Gen 4.0 x4

• Audio:

  • Realtek® ALC4082 Codec + ESS9219Q DAC/HPA

  • 7.1-channel USB audio, S/PDIF, 32-bit/384kHz support

• Storage:

  • 5x M.2 (PCIe Gen 4 & Gen 5), 4x SATA 6Gbps

  • RAID 0/1/5/10 support (SATA & NVMe)

• Thunderbolt:

  • 2x Thunderbolt™ 4 (40Gbps), supports daisy-chaining and 8K displays

• USB Ports:

  • Front: 4x USB 2.0, 4x USB 5Gbps, 1x USB 20Gbps Type-C

  • Rear: 11x USB 10Gbps (Type-A), 2x USB 10Gbps (Type-C)

• LAN: Marvell® AQC113CS 10G LAN

• Wireless:

  • Intel® Killer™ BE1750x Wi-Fi 7 (6GHz, 320MHz, up to 5.8Gbps)

  • Bluetooth® 5.4

• Internal I/O:

  • Power: 1x ATX_PWR, 2x CPU_PWR, 1x PCIE_PWR

  • Cooling: 1x CPU fan, 2x Combo fans, 5x Sys fans, 1x Water Flow

  • Misc: 2x Thermal sensors, TPM 2.0 header, RGB headers, debug LEDs, V-check points

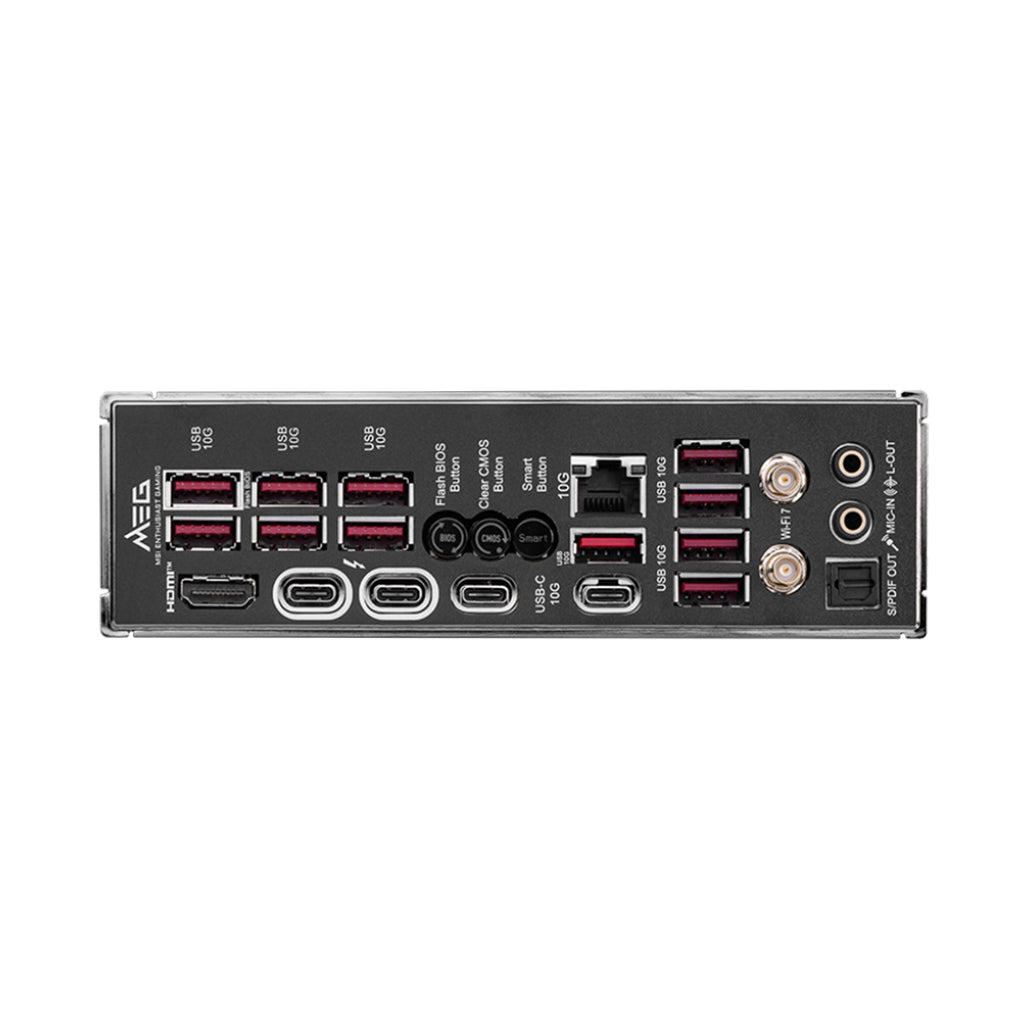

• Back Panel:

  • HDMI 2.1, Thunderbolt™ 4, USB-C, USB-A, 10G LAN, Optical S/PDIF, Wi-Fi/Bluetooth antenna ports, BIOS/CMOS/Smart Buttons

• Operating System: Windows® 11 64-bit supported

Conclusion:

The MSI MEG Z890 ACE has been engineered to meet the needs of enthusiasts, overclockers, and professionals who demand maximum performance, thermal stability, and future-ready connectivity. Every component has been tuned for uncompromising speed, power, and functionality, making this motherboard a solid foundation for ultra-high-end gaming PCs or professional workstations.
