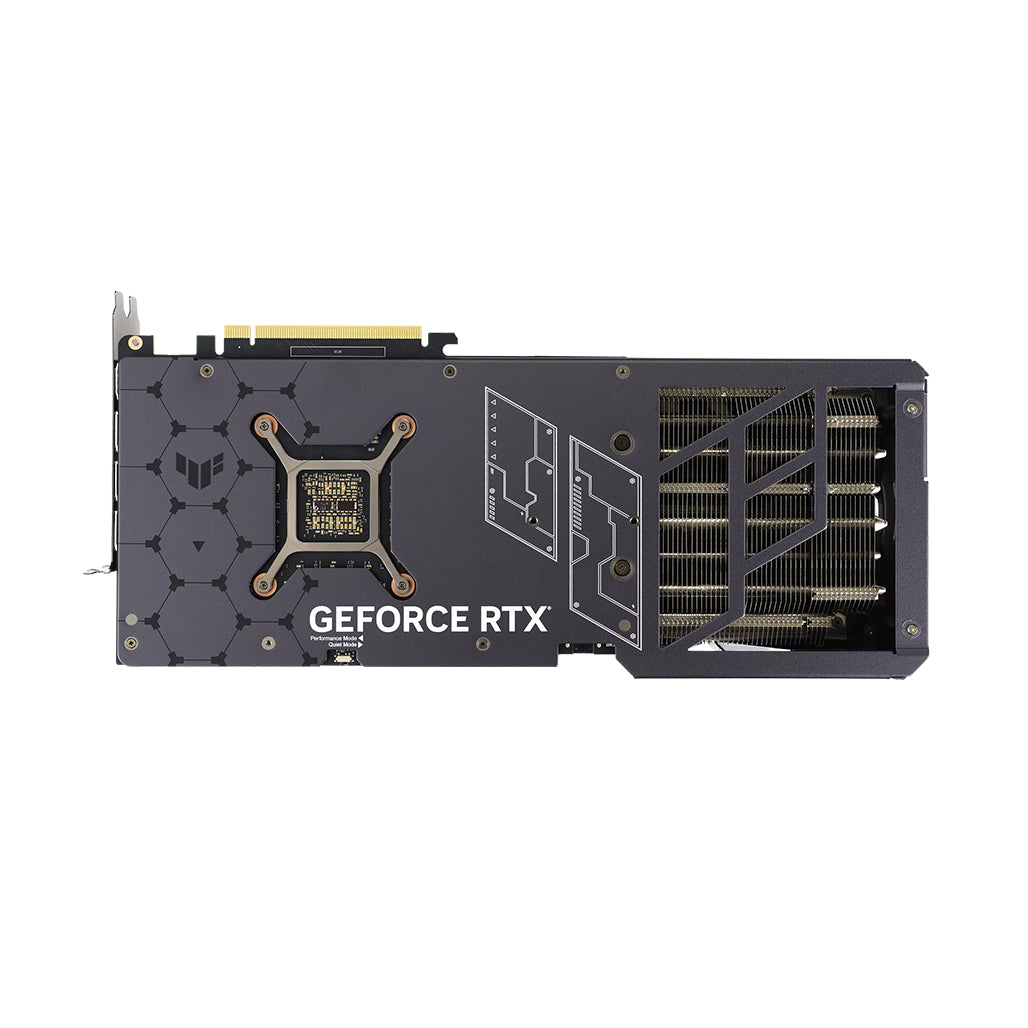

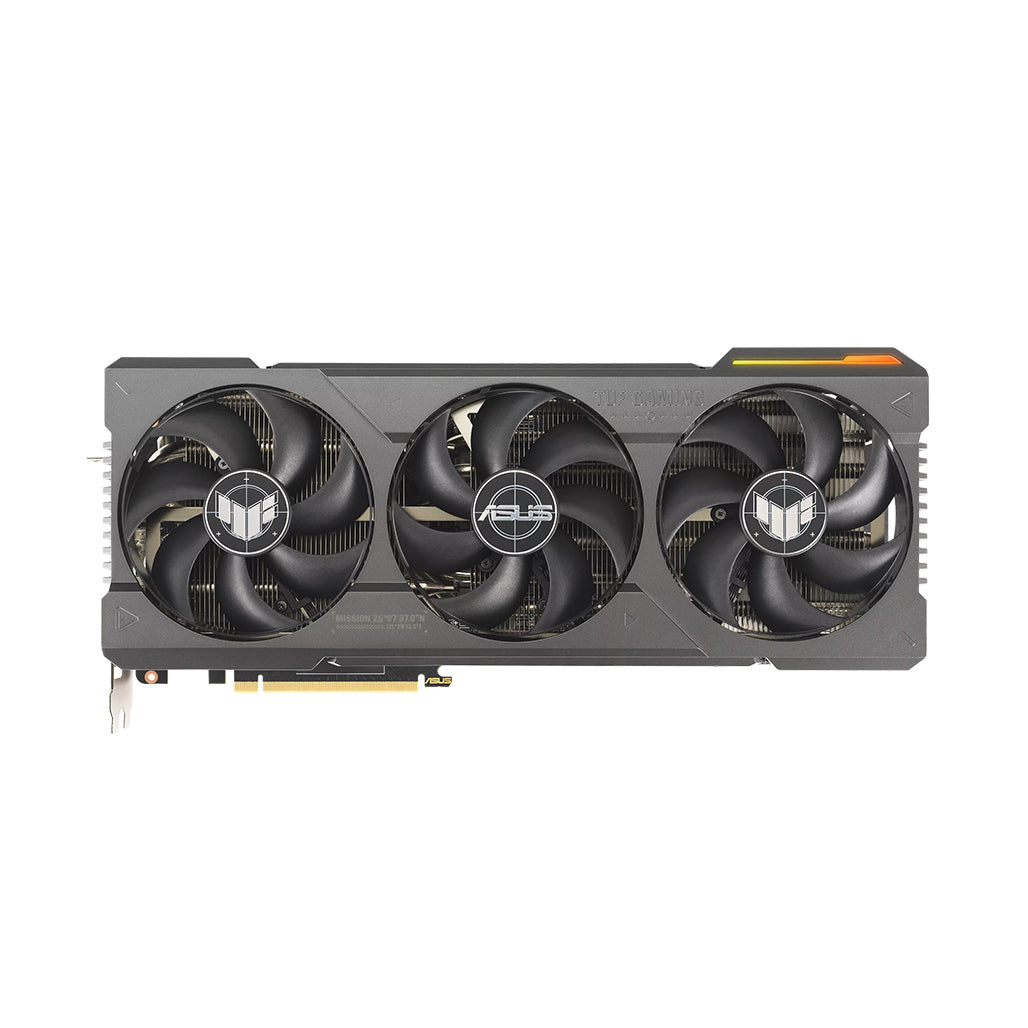

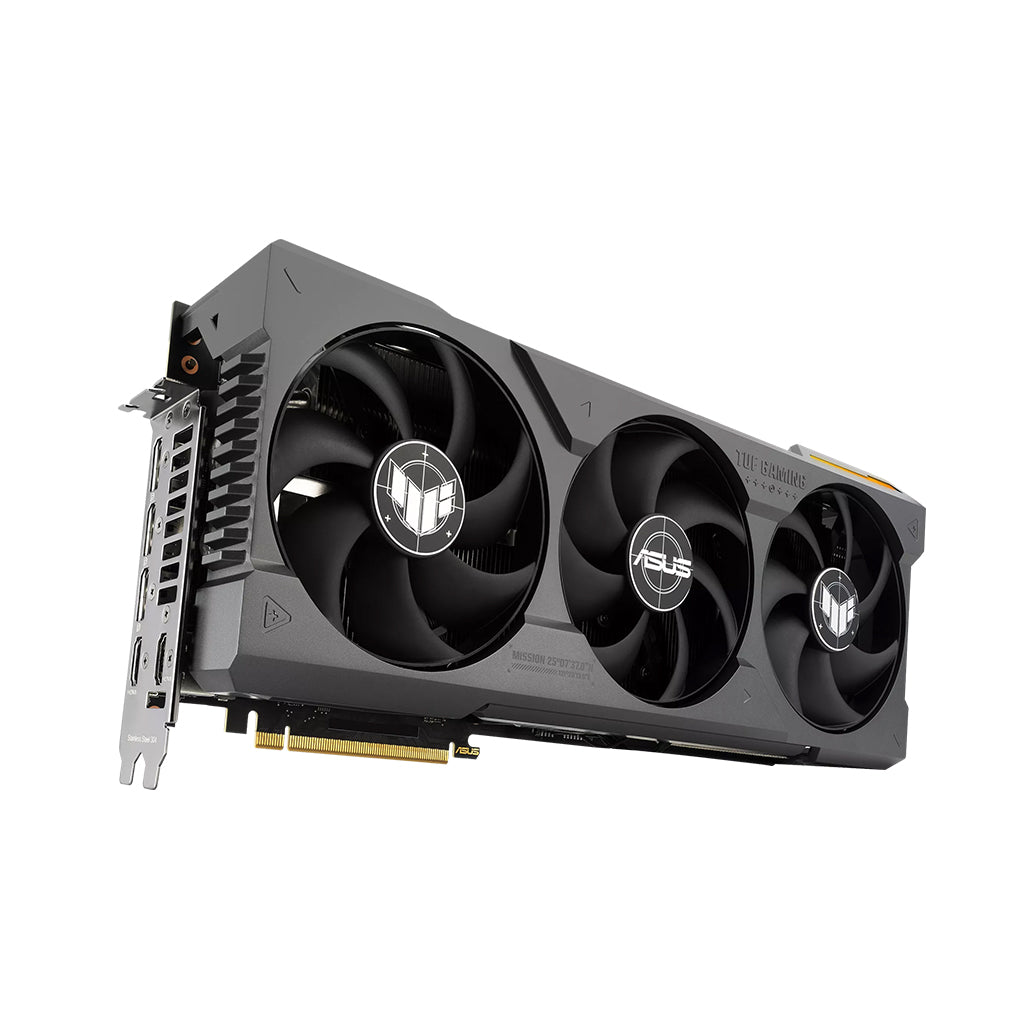

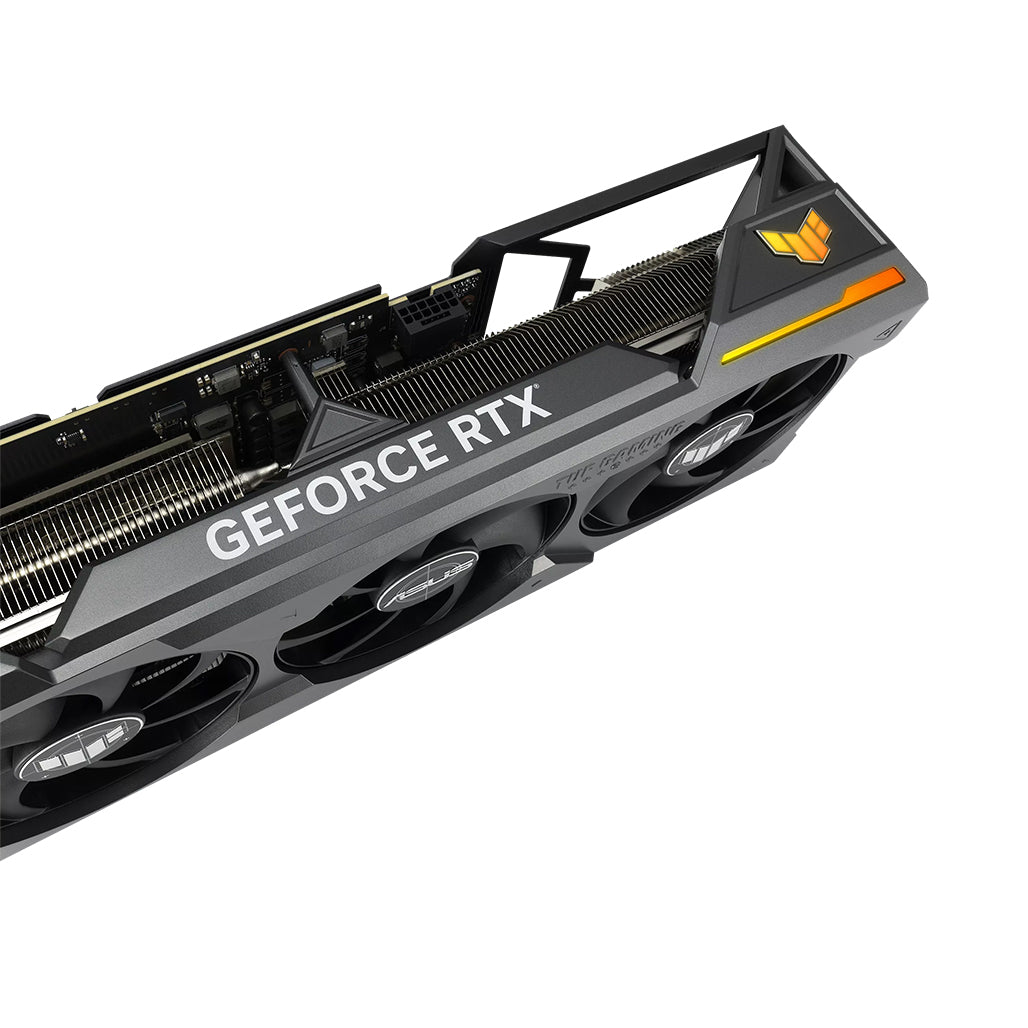

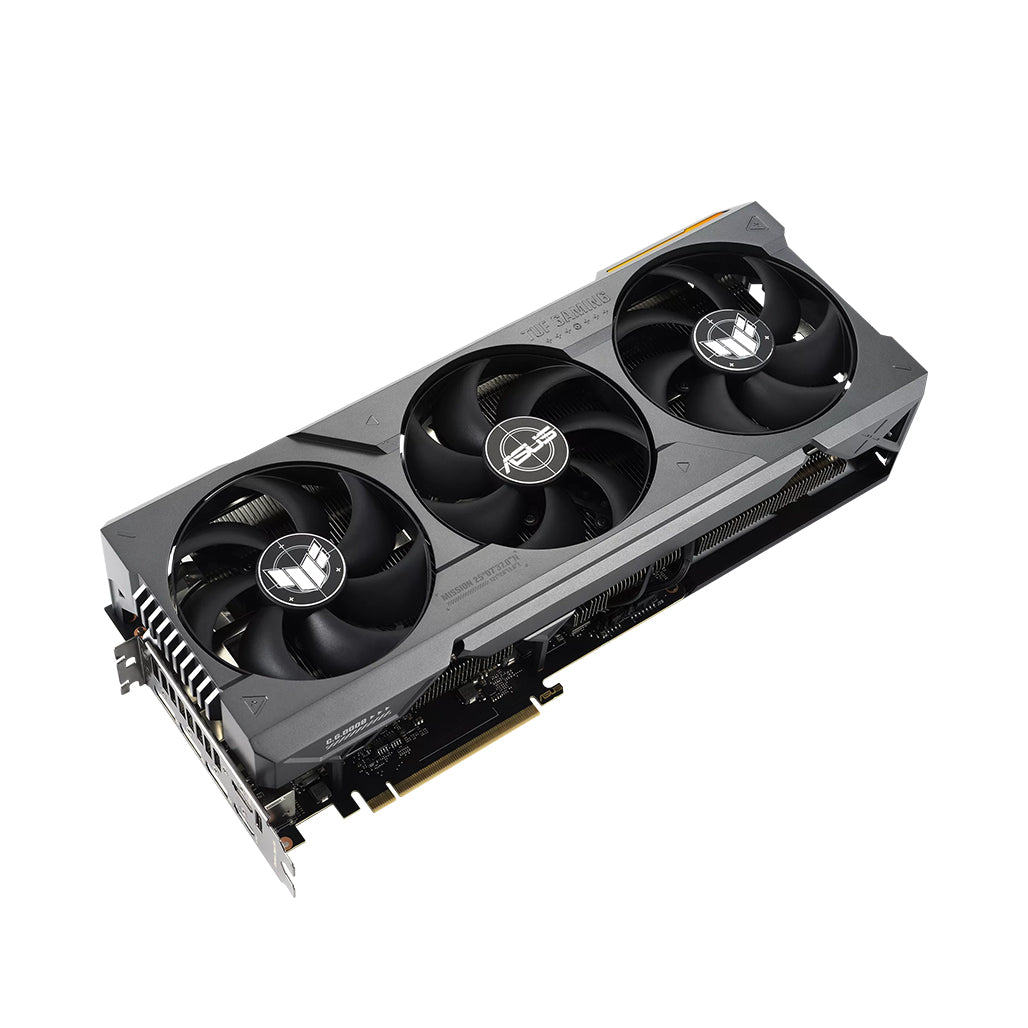

The ASUS TUF Gaming GeForce RTX™ 4080 16GB GDDR6X OC Edition is designed to deliver top-tier gaming performance and durability. With the power of NVIDIA DLSS 3 and the advanced Ada Lovelace architecture, this GPU provides remarkable ray tracing, efficient cooling, and high reliability.
Key Features
-
NVIDIA Ada Lovelace Streaming Multiprocessors: Offers up to 2x performance and power efficiency.
-
4th Generation Tensor Cores: Enhances AI performance up to 4x with DLSS 3 versus traditional rendering.
-
3rd Generation RT Cores: Doubles the ray tracing performance.
-
OC Mode: Boosts clock speeds up to 2625 MHz, with a default boost of 2595 MHz.
-
Axial-tech Fans: Scaled up for 23% more airflow, leading to better cooling and lower noise.
-
Dual Ball Fan Bearings: Last up to twice as long as conventional designs.
-
Military-grade Capacitors: Rated for 20K hours at 105°C for enhanced durability.
-
Metal Exoskeleton: Provides structural rigidity and better heat dissipation.
-
Auto-Extreme Technology: Precision automated manufacturing for higher reliability.
-
GPU Tweak III: Software for intuitive performance tweaking, thermal controls, and system monitoring.
Detailed Specifications
-
Model: ASUS TUF Gaming GeForce RTX™ 4080 16GB GDDR6X OC Edition
-
Graphic Engine: NVIDIA® GeForce RTX™ 4080
-
Bus Standard: PCI Express 4.0
-
OpenGL: OpenGL® 4.6
-
Video Memory: 16GB GDDR6X
-
Engine Clock:
- OC mode: 2625 MHz
- Default mode: 2595 MHz (Boost)
-
CUDA Core: 9728
-
Memory Speed: 22.4 Gbps
-
Memory Interface: 256-bit
-
Maximum Resolution: 7680 x 4320
-

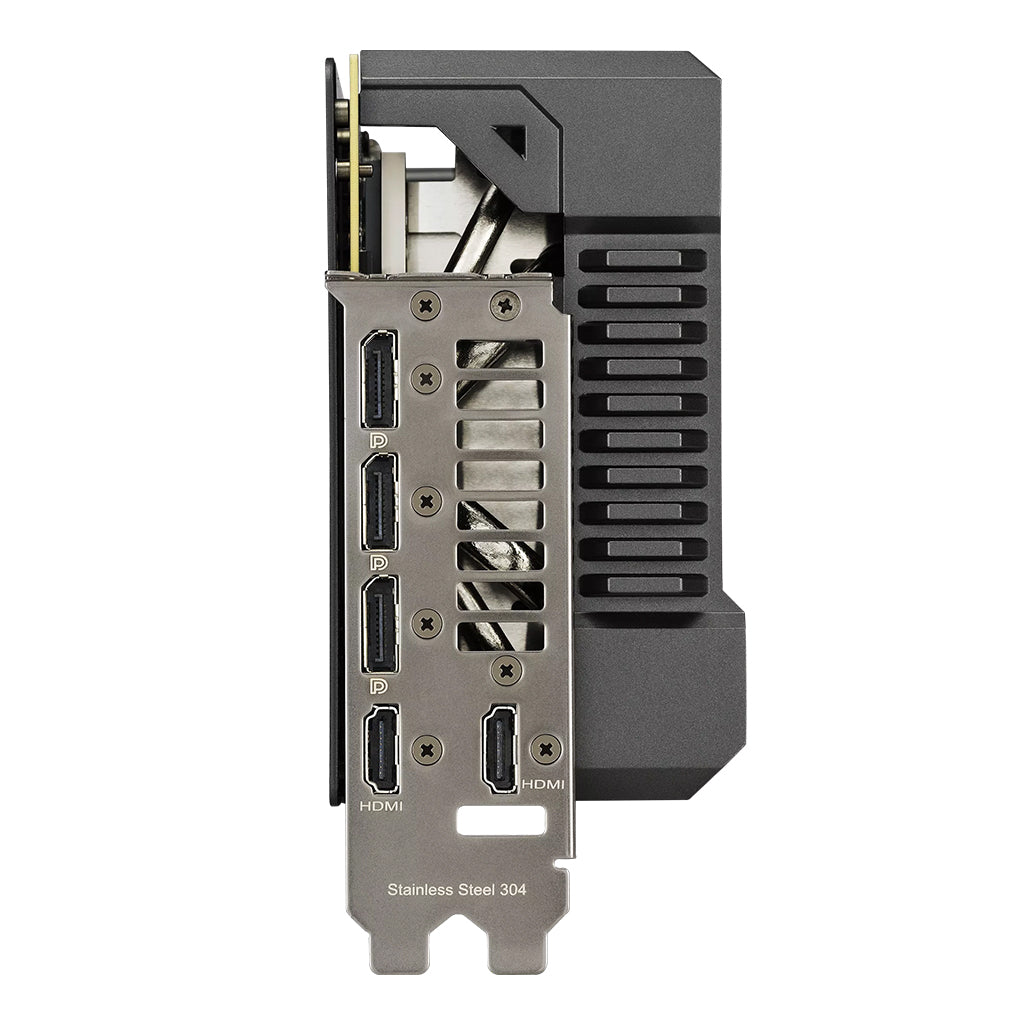

Interfaces:
- 2 x HDMI 2.1a (Native)
- 3 x DisplayPort 1.4a (Native)
- HDCP Support: Yes (2.3)
-
Maximum Display Support: 4
-
NVLink/Crossfire Support: No
Physical Attributes
-
Dimensions: 348.2 x 150 x 72.6 mm
-
Slot: 3.65 Slot
-
Power Connectors: 1 x 16-pin
-
Recommended PSU: 750W
Cooling and Durability
-
Axial-Tech Upgrades: Improved airflow and cooling with scaled-up fans.
-
Military-Grade Capacitors: Ensures resilience in demanding conditions.
-
Metal Exoskeleton: Provides robust support and enhances heat dissipation.
Software and Extras
-
AURA SYNC: Customizable ARGB lighting for personalized setups.
-
GPU Tweak III: Intuitive software for performance tuning and monitoring.
-
Accessories:
- Collection Card
- Speedsetup Manual
- Adapter Cable
- TUF Graphics Card Holder
- TUF Velcro Hook & Loop
- Thank You Card
- TUF Gaming Certificate
Cooling Design
-
New Direction: Side fans spin counterclockwise to minimize turbulence, with all fans stopping below 50°C for quieter operation. They resume above 55°C based on a balanced performance and acoustics curve.
-
3.65-Slot Design: A large heatsink efficiently absorbs heat, which is then dissipated by the three Axial-tech fans.
Auto-Extreme Technology
-
Reliability Boost: Automated manufacturing reduces thermal strain on components and avoids harsh cleaning chemicals, resulting in a more reliable and environmentally friendly product.
Conclusion
The ASUS TUF Gaming GeForce RTX™ 4080 16GB GDDR6X OC Edition is a high-performing, durable GPU ideal for gamers and creators. With advanced cooling technologies, military-grade components, and customizable lighting, it stands as a powerful and reliable choice for any high-end gaming or creative setup.
