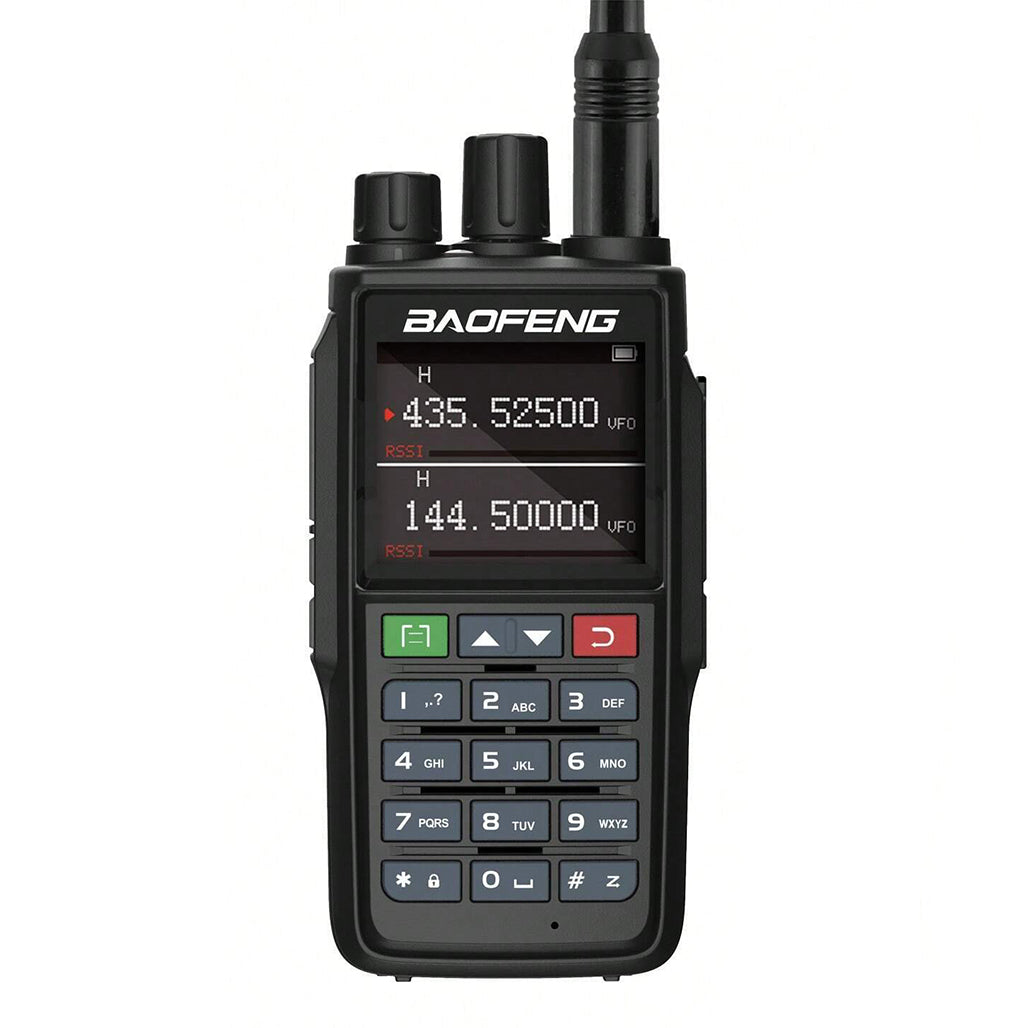

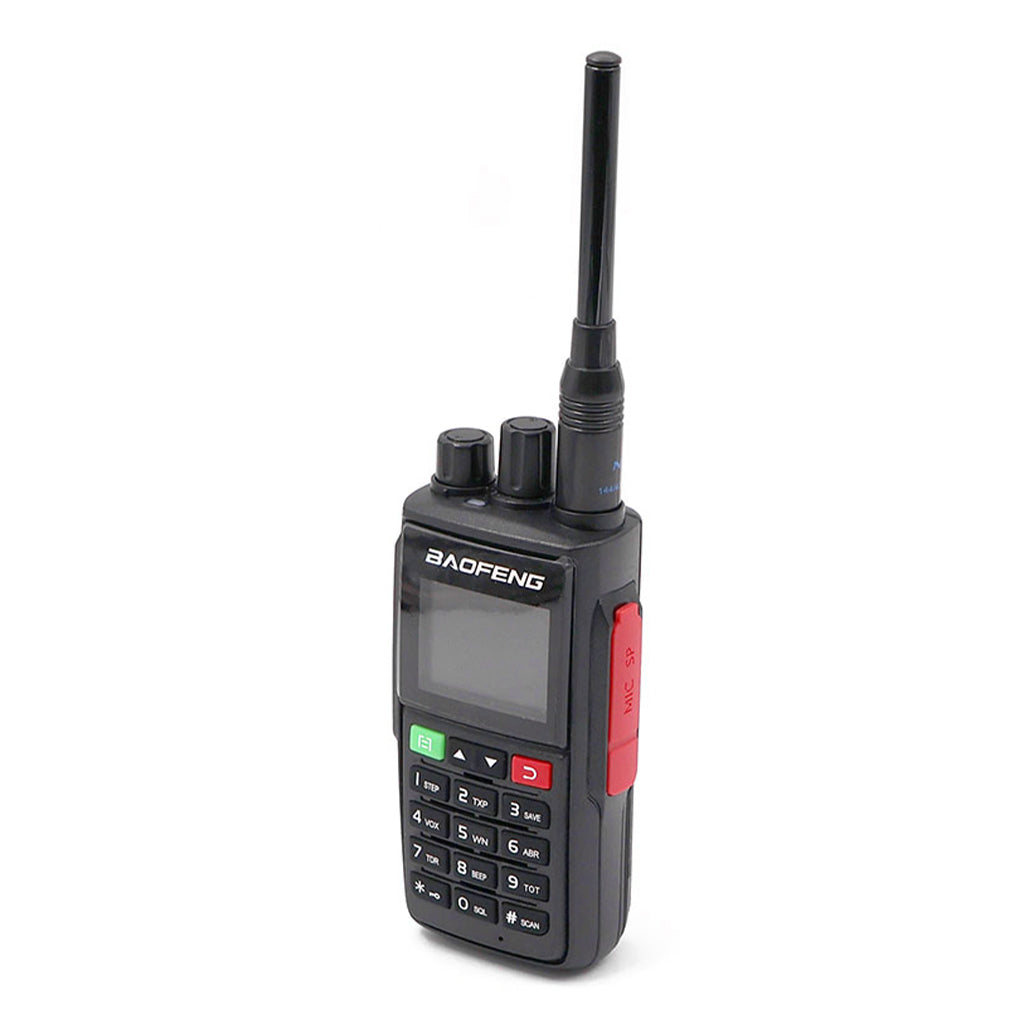

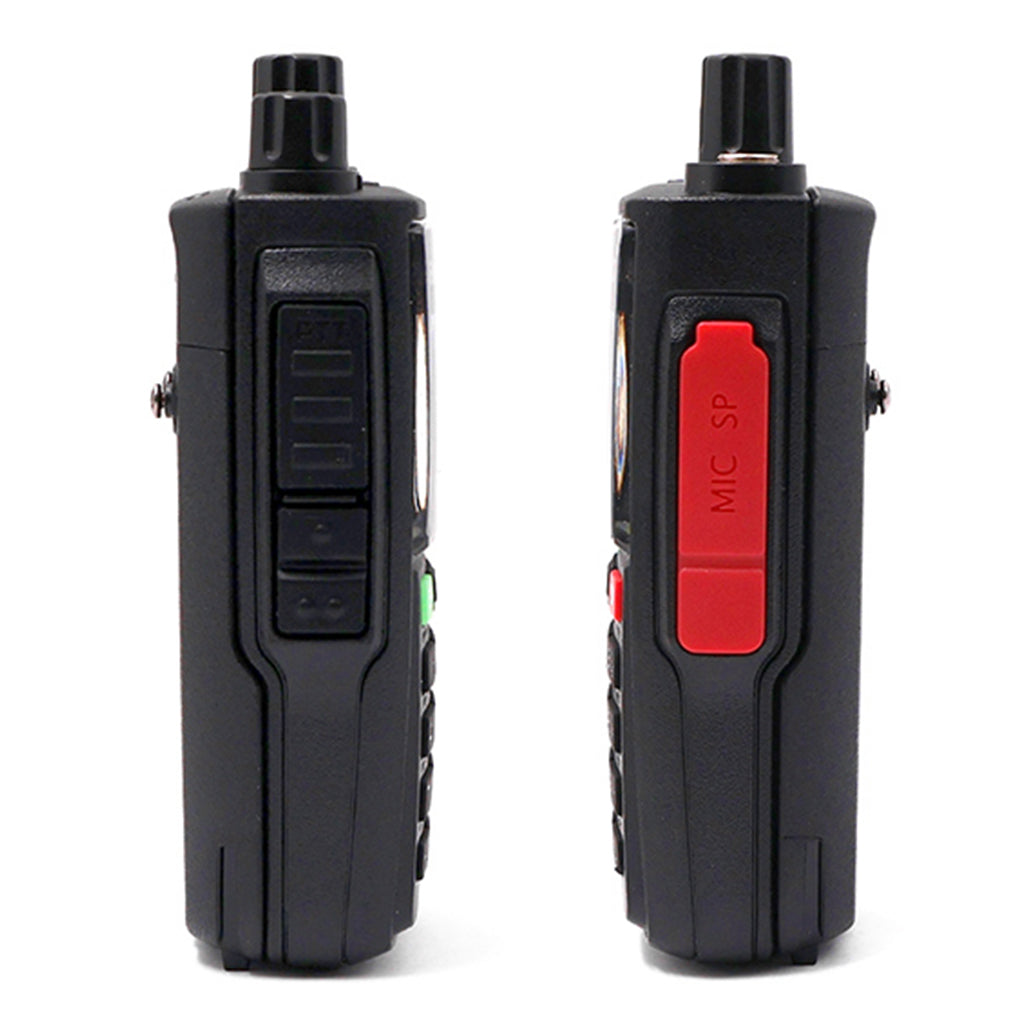

BAOFENG UV-22M Walkie Talkie - Dual Band Radio with 999 Channels, 5W Output Power, and Long Battery Life

The BAOFENG UV-22M is a reliable and powerful dual-band radio designed for both professional and recreational use. Featuring an impressive 999 channel capacity, it allows users to efficiently manage communications across various frequencies. With its dual-band support, this radio operates on multiple frequency ranges, providing versatility and ensuring clear transmission in a wide variety of environments. Built with durability in mind, the UV-22M operates seamlessly across extreme temperatures, making it ideal for field operations, hiking, or emergency preparedness.

This device is equipped with a long-lasting battery that delivers up to 15 hours of life at 5 watts of output power, ensuring dependable communication during prolonged use. With its compact design and lightweight build, the BAOFENG UV-22M remains easy to carry and manage, making it an excellent choice for users who require a high-performance, portable communication device. Whether used for outdoor activities or professional communication, the UV-22M provides robust performance and adaptability.

Key Features:

• 999 Channel Capacity: Supports a vast number of channels for varied communication needs.
• Dual Band Frequency Support: Operates on multiple frequencies, ensuring reliable communication across different ranges (136-174 MHz, 220-260 MHz, 400-480 MHz).
• Powerful 5W Output: Delivers strong transmission power with selectable high and low power settings.
• Long Battery Life: Provides up to 15 hours of battery life at 5 watts, ensuring extended operation without frequent recharging.
• Durable and Portable: Compact dimensions (143 x 64 x 41mm) and a lightweight design (298g) allow for easy portability and operation in various conditions.
• Wide Operating Temperature Range: Functions efficiently in extreme environments, from -10°C to 60°C.
• Low Current Drain: Efficient power usage during standby and communication, preserving battery life.

Specifications:

• Channel Capacity: 999
• Channel Spacing: 25.0 KHz / 12.5 KHz
• Input Voltage: 7.4 V
• Battery Life: 15 hours @ 5W (5% TX, 5% RX, 90% standby)
• Current Drain: Standby: 45 mA, Receive: 200 mA, Transmit: <1.6 A @ High Power, ≤1.2 A @ Low Power
• Operating Temperature: -10°C to 60°C
• Antenna Impedance: 50Ω
• Radio Dimensions: 143 x 64 x 41mm
• Weight: 298g

Transmitter:

• Frequency Range (TX): 136-174 MHz, 220-260 MHz, 400-480 MHz
• RF Output Power: 5W
• Modulation: 16K0F3E @ 25KHz / 11K0F3E @ 12.5KHz
• Spurious Emission: -16 dBm <1GHz, -16 dBm >1GHz
• Frequency Stability: ±2.5 ppm
• Audio Distortion: <5%
• FM Hum & Noise: 40 dB

Receiver:

• Frequency Range (RX): 136-174 MHz, 220-260 MHz, 400-520 MHz
• Additional Frequency Ranges: FM: 65-108 MHz, AM: 108-136 MHz, Police: 350-390 MHz
• Sensitivity: -120 dBm
• Adjacent Channel Selectivity: ≥65 dBm / ≥60 dBm
• Intermodulation and Rejection: ≥62 dBm / ≥58 dBm
• Rated Audio Power Output: 1.0 W @ 16Ω
• Rated Audio Distortion: <5%

Conclusion:
The BAOFENG UV-22M is designed to offer reliable communication with its extensive channel capacity, dual-band support, and long battery life. Whether for professional settings or recreational use, this radio provides a versatile and durable solution for clear, consistent communication in diverse environments.
