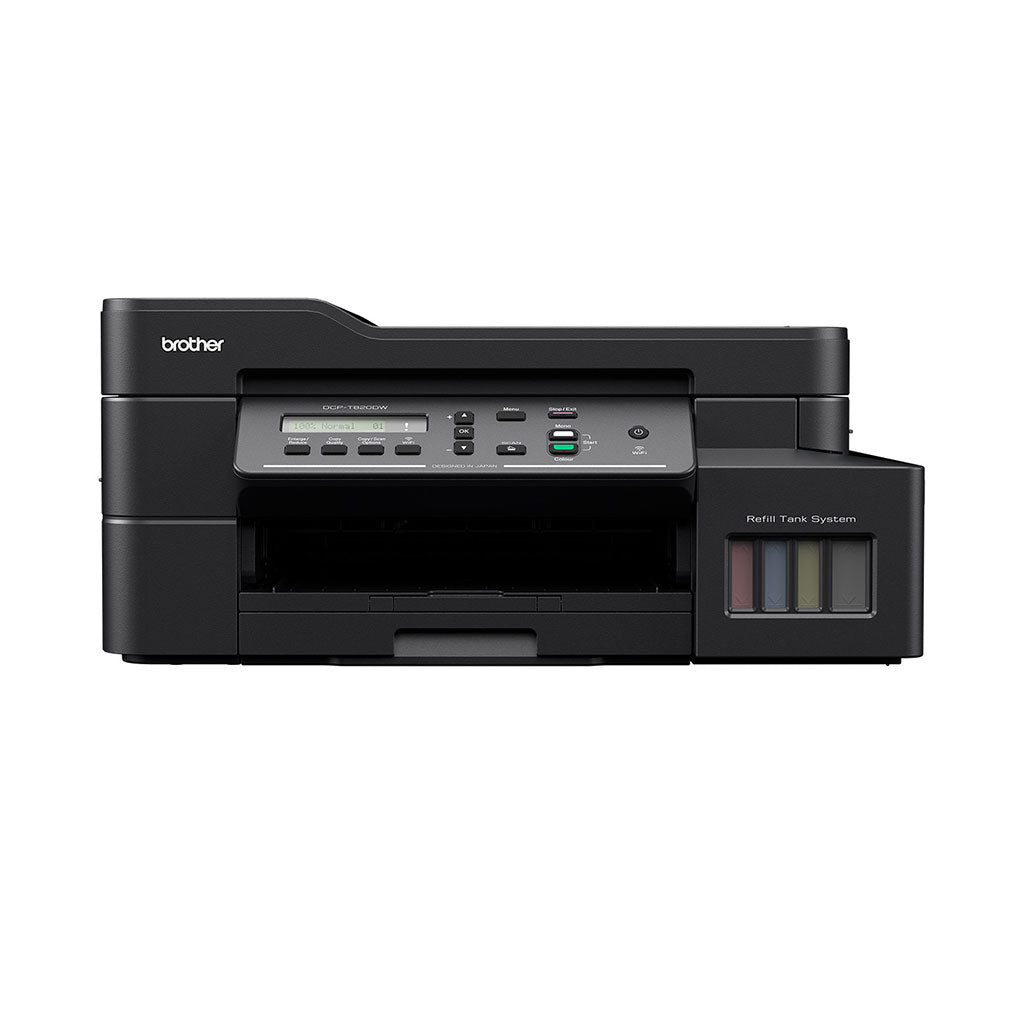

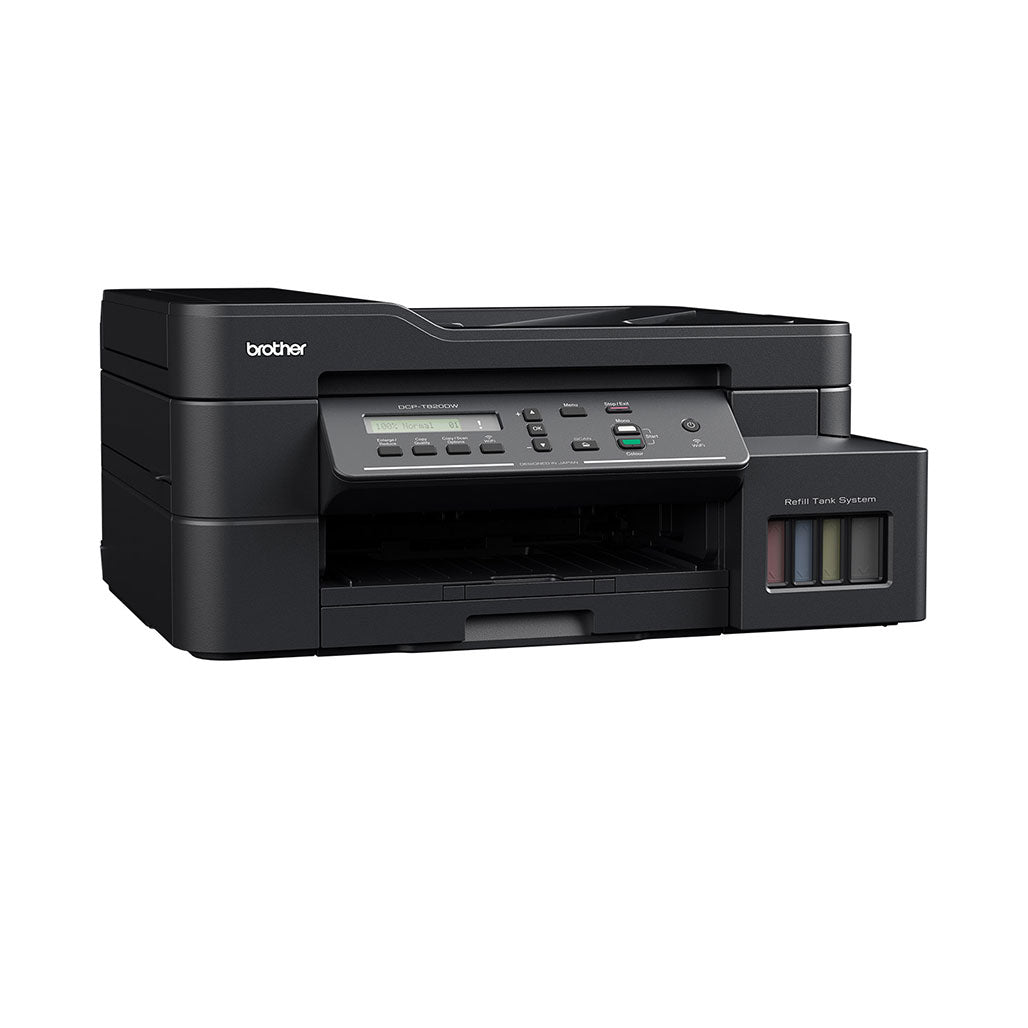

Brother DCP-T820DW - Business Ink Tank Printer

The Brother DCP-T820DW is a high-speed multifunction inkjet printer designed for business efficiency. It features duplex printing, allowing for double-sided documents, and is ideal for handling large volumes with cost-effective ink tank technology.

Basic Specs:

• Functions: Print, Scan, Copy
• Printer Type: Inkjet Printer
• Dimensions (W x D x H): 435 mm x 439 mm x 195 mm
• Print Speed:
  • Mono: 17 ipm
  • Color: 16.5 ipm
  • First Print Out Time (FPOT): 6 seconds (Mono), 6.5 seconds (Color)
• Paper Size:
  • A4, Letter, Legal, Mexican Legal, India Legal, Folio, Executive, B5, A5, B6, A6
  • C5 Envelope, Com-10, DL Envelope, Monarch, Photo (10x15 cm/4x6"), Photo-L (9x13 cm/3.5x5"), Photo-2L (13x18 cm/5x7"), Index Card (13x20 cm/5x8")
  • Note: Some sizes supported only in specific countries.
• Maximum Paper Capacity: Up to 230 sheets of 80 gsm plain paper

Print Specifications:

• Resolution: Up to 1,200 x 6,000 dpi
• Printing Width:
  • With Border: 204 mm
  • Borderless: 210 mm
• Borderless Printing: A4, Letter, Executive, A5, A6, Photo 4"x6", Index Card 5"x8", Photo 5"x7", Photo 3.5"x5"
• 2-Sided Printing:
  • Paper Type: Plain, Recycled
  • Paper Size:
    • PC Print: A4/Letter/Executive/A5
    • Copy: A4/A5/Letter

Print Media:

• Paper Input - Tray #1:
  • Paper Type: Plain, Inkjet, Glossy (cast/resin), Recycled
  • Maximum Capacity: Up to 150 sheets of 80 gsm plain paper
• Paper Input - Multi-Purpose Tray:
  • Paper Type: Plain, Inkjet, Glossy (cast/resin), Recycled
  • Maximum Capacity:
    • Up to 80 sheets (80 gsm, plain paper)
    • Up to 20 sheets (220 gsm, plain paper)
• ADF Input Paper Tray Maximum Capacity: Up to 20 sheets of 80 gsm plain paper
• Paper Output: Up to 50 sheets of 80 gsm plain paper

Document Sizes:

• ADF (Paper Handling):
  • 1: 148 mm to 215.9 mm
  • 2: 148 mm to 355.6 mm

Copy Specifications:

• Color: Yes
• Monochrome: Yes
• Copy Width:
  • A4: 204 mm
  • Letter: 210 mm
• Multiple Copies: Up to 99 pages
• Enlarge/Reduce: 25% to 400% in 1% increments
• Resolution:
  • Print: Max. 1,200 x 2,400 dpi
  • Scan: Max. 1,200 x 600 dpi

Scan Specifications:

• Color Scanning: Yes
• Monochrome: Yes
• Color Depth:
  • Input: 30-bit
  • Output: 24-bit / 256 levels per color
• Greyscale Depth:
  • Input: 10-bit
  • Output: 8-bit / 256 levels per color
• Resolution:
  • Interpolated: Up to 19,200 x 19,200 dpi (Windows 7/8/10 only)
  • Scanner Glass: Up to 1,200 x 2,400 dpi
  • ADF: Up to 1,200 x 600 dpi
• Scanning Width:
  • Scanner Glass: Up to 213.9 mm
  • ADF: Max. 213.9 mm
• Scanning Length:
  • Scanner Glass: Up to 295 mm
  • ADF: Max. 353.6 mm

Display & Memory:

• Display: 1 Line LCD (16 Characters)
• Memory Capacity: 128 MB

Weight:

• Weight: 9.6 kg

Operation:

• Power Source: AC 220 - 240V 50/60Hz
• Power Consumption:
  • Printing: Approx. 17W
  • Ready: Approx. 3W
  • Sleep: Approx. 0.9W
  • Power Off: Approx. 0.2W
• Noise Level: Approx. 53.5 dB (A)
• Operating Temperature: 10°C to 35°C
• Best Print Quality Temperature: 20°C to 33°C

Network Specifications:

• Wireless Network Security:
  • SSID (32 characters)
  • WEP 64/128-bit
  • WPA-PSK (TKIP/AES)
  • WPA2-PSK (TKIP/AES)
• Wireless Setup Support Utility - WPS: Yes

Supported Operating Systems:

• Windows®: 7 SP1/8.1/10, Server 2008/2008 R2/2012/2012 R2/2016/2019
• Mac: macOS v10.13.6/10.14.x/10.15.x (For printing and scanning, use AirPrint or download Brother iPrint&Scan from the App Store. The Brother iPrint&Scan application supports PDF/JPG/BMP and PNG formats only. Mac printer driver is not provided.)
