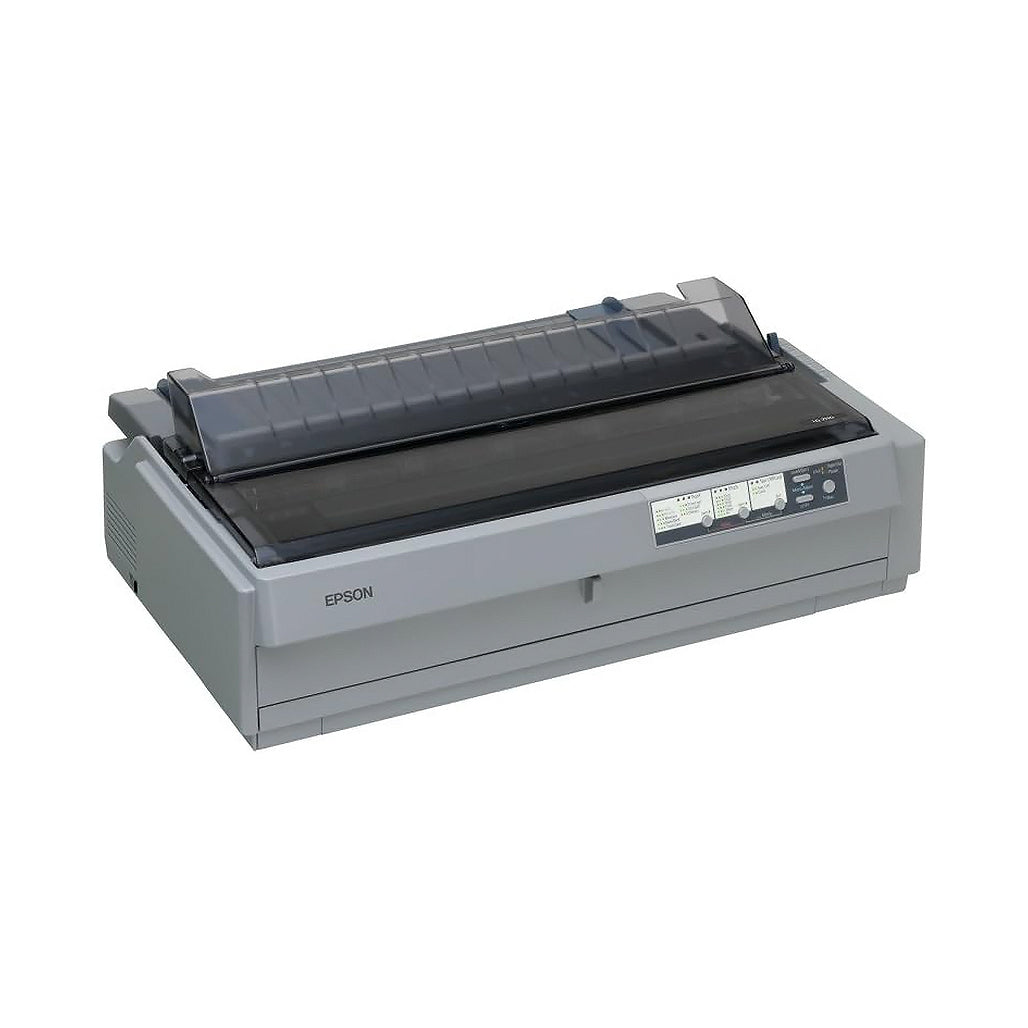

Epson LQ-2190 Dot Matrix Printer – High-Speed 24-Pin Impact Printer with USB & Parallel Connectivity

The Epson LQ-2190 Dot Matrix Printer is a high-performance 24-pin wide carriage impact printer designed for businesses requiring fast, reliable, and cost-effective printing. Delivering superior print quality with a resolution of 360 x 180 DPI, this printer is ideal for large-volume tasks, offering a maximum print speed of 576 cps in high-speed draft mode. With the capability to print up to six-part forms (one original plus five copies), it is perfect for continuous multi-part document printing, ensuring efficiency in office and industrial environments.

Built for durability and long-term operation, the LQ-2190 features an extended print head life of 400 million strokes per wire and a mean time between failures (MTBF) of 20,000 power-on hours. The ribbon life extends up to 15 million characters, reducing maintenance and operational costs. Equipped with multiple paper feed options, including front, top, bottom, and rear paths, it provides versatile paper handling for various printing needs. Connectivity is seamless with standard USB and parallel interfaces, while an optional Ethernet interface enhances network integration, making it an ideal choice for demanding business applications.

Key Features:

• High-Speed Performance: Prints at up to 576 cps in high-speed draft mode, ensuring rapid document processing.
• Reliable & Durable: Features a 400-million-stroke print head life and a 20,000-hour MTBF, making it highly dependable.
• Multi-Part Printing: Supports up to six-part forms (one original + five copies), perfect for invoices, reports, and multi-layered documents.
• Versatile Paper Handling: Front, top, bottom, and rear paper feed paths provide flexibility for various paper types and sizes.
• Cost-Effective Operation: Extended ribbon life of 15 million characters reduces replacement frequency and operational costs.
• Seamless Connectivity: Equipped with USB 2.0 and parallel interfaces as standard, with an optional Ethernet interface for network printing.

Specifications:

Technology

• Printing Method: Impact dot matrix
• Number of Pins: 24 pins
• Number of Columns: 136 columns

Print

• Printing Speed:
  • LQ Mode: 10 cpi – 120 chars/s, 12 cpi – 144 chars/s
  • High-Speed Draft: 10 cpi – 480 chars/s, 12 cpi – 576 chars/s
  • Draft Mode: 10 cpi – 360 chars/s, 12 cpi – 432 chars/s
• Carbon Copies: 1 original + 5 copies
• Resolution: 360 x 180 DPI

Connectivity

• Interfaces: USB 2.0, Parallel, Type B Slot
• Optional Interfaces: RS-232 Serial, Ethernet (100 Base-TX / 10 Base-T)

Paper Handling

• Document Feed: Single sheet front/rear, Continuous media front/rear, Rear paper output
• Supported Formats: Sheet paper, Continuous paper, Labels, Roll paper, Envelopes, Cardboard

General Specifications

• Power Consumption: 46W (operation), 3W (economy mode)
• Dimensions: 693 x 405 x 268 mm
• Weight: 13 kg
• Operating Temperature: 5°C - 35°C
• Operating Humidity: 10% - 80%
• Noise Level: 54 dB(A)
• Memory: 128 KB

Compatibility & Software

• Supported Operating Systems: Windows 98, Windows 2000, Windows XP (x64), Windows Vista, Windows 7, Windows 8
• Included Software: Epson Status Monitor

Durability & Longevity

• Mean Time Between Failures (MTBF): 20,000 hours
• Print Head Life: 400 million strokes per wire
• Ribbon Yield: 15 million characters (Black Draft)

Conclusion

The Epson LQ-2190 Dot Matrix Printer is an exceptional choice for businesses requiring a high-speed, durable, and efficient impact printer. Designed to handle large-volume printing with minimal maintenance, it offers multi-part printing capability, flexible paper handling, and robust connectivity options. Its long-lasting print head and ribbon life significantly lower operational costs, making it a cost-effective solution for offices, warehouses, and industrial settings. With a strong reputation for reliability, this printer ensures smooth operations and consistent high-quality output.
