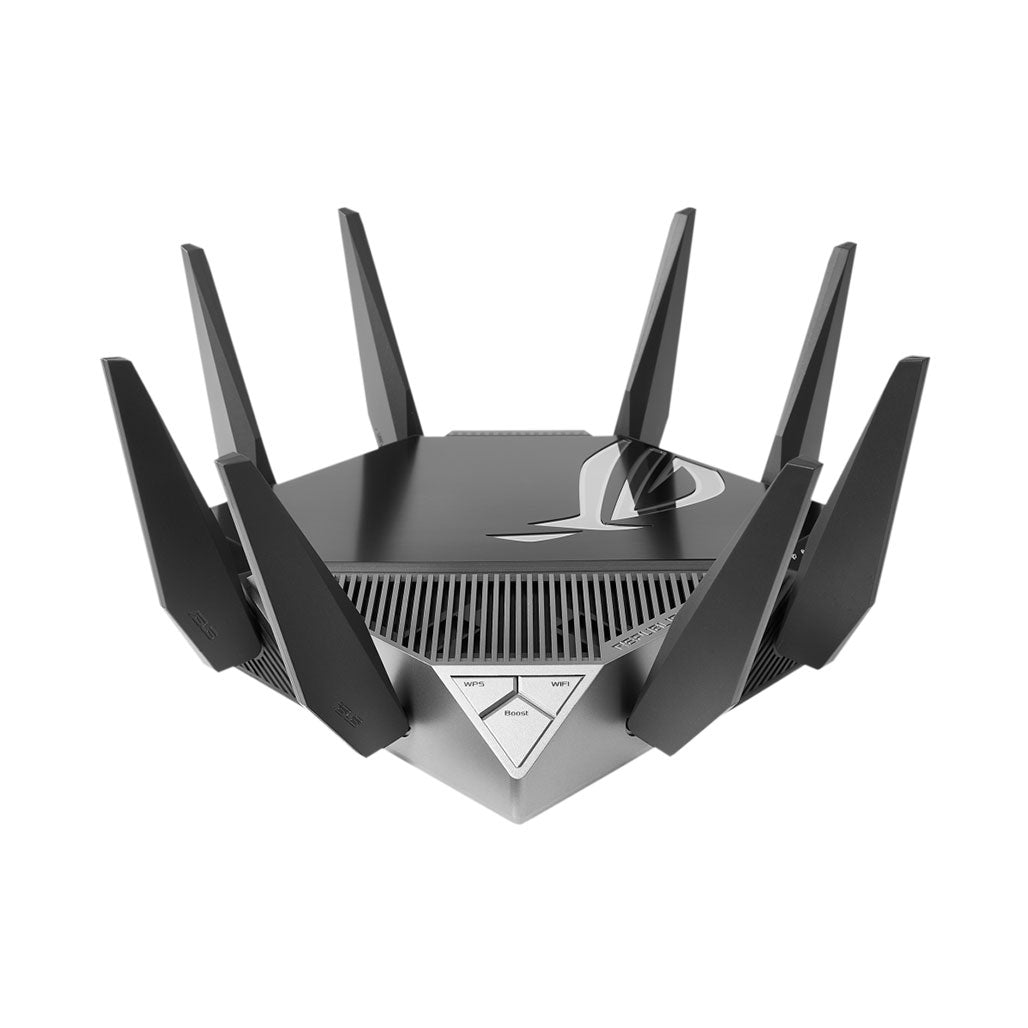

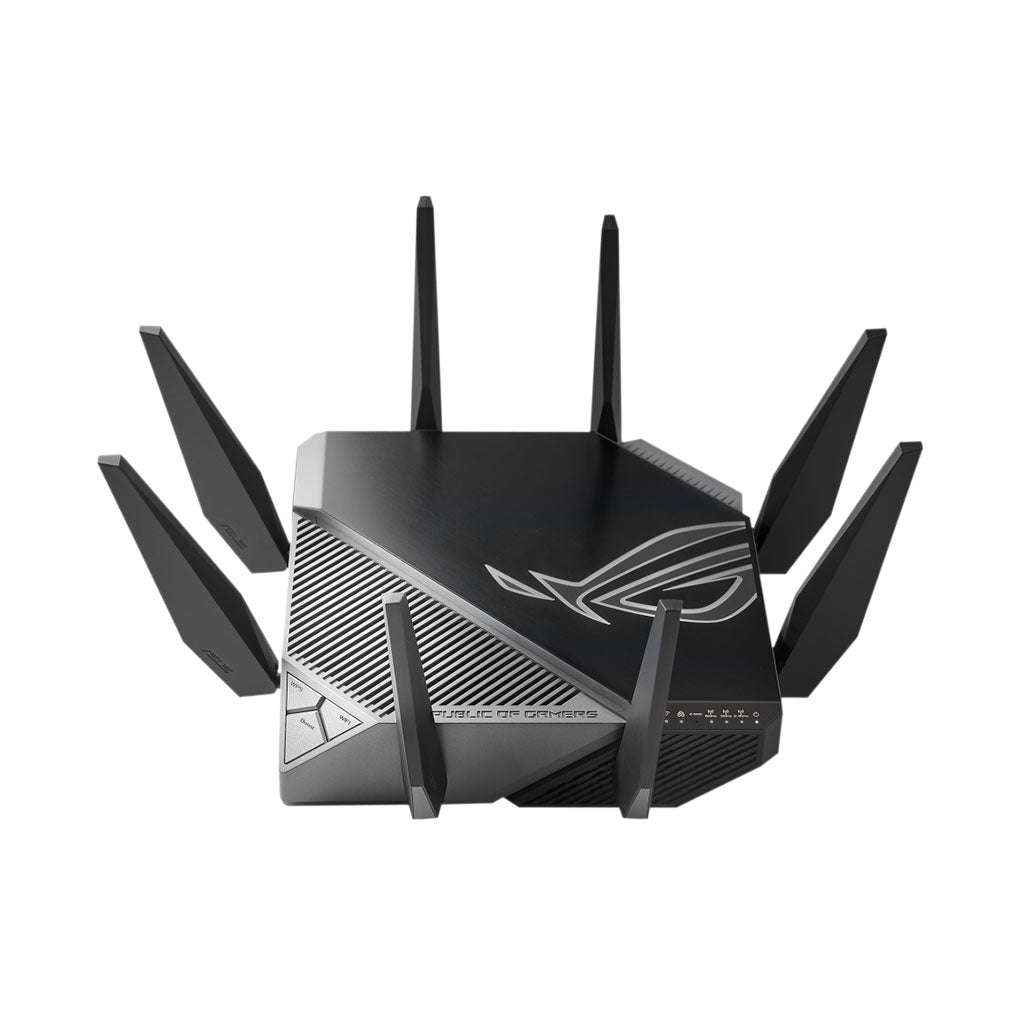

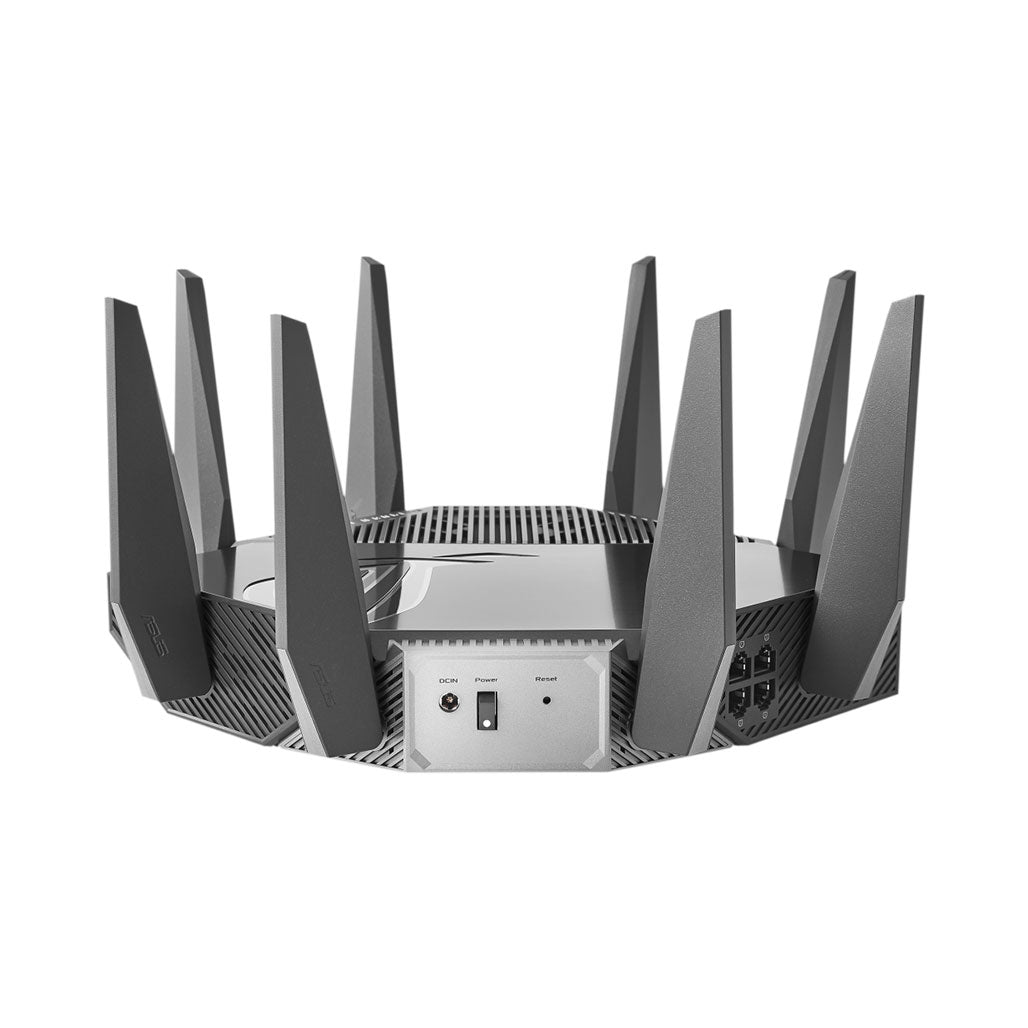

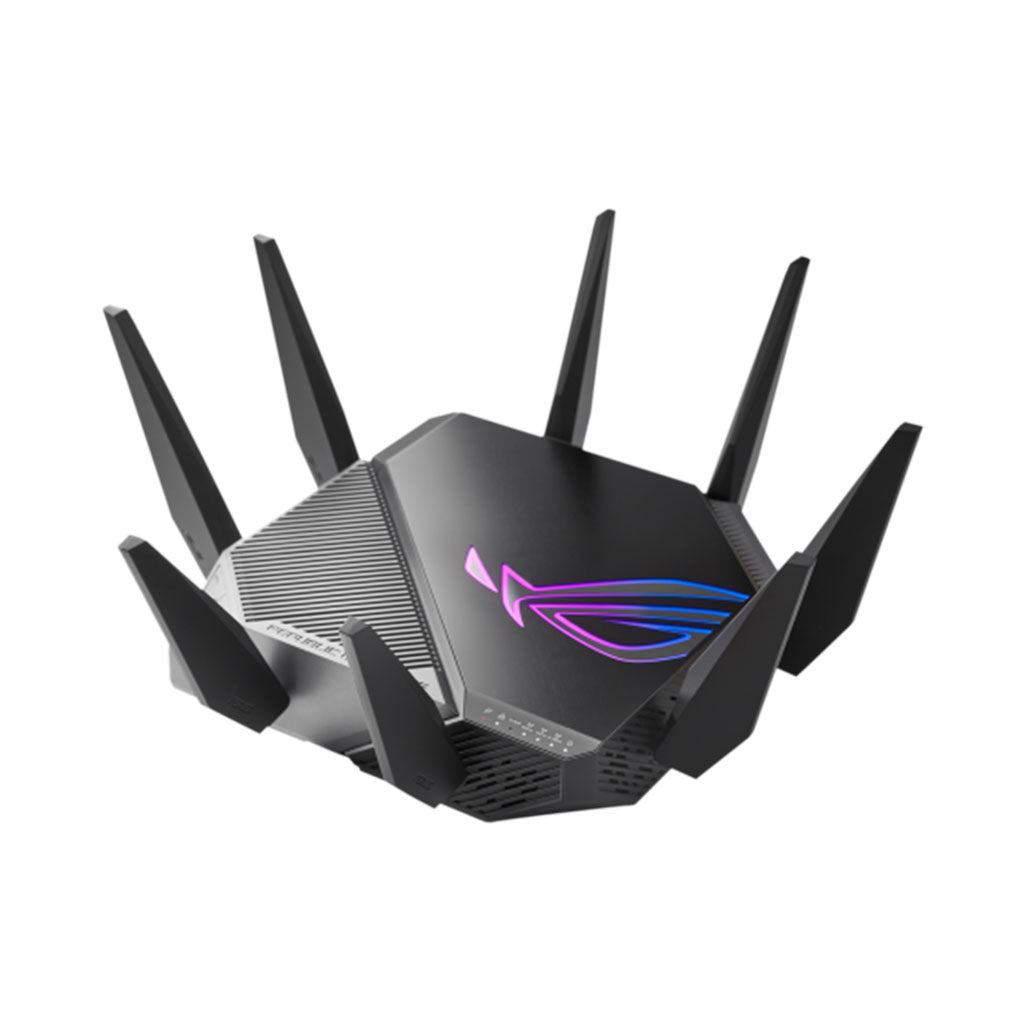

Asus ROG Rapture GT-AXE11000 Gaming Router

Description

GT-AXE11000 Tri-band WiFi 6E (802.11ax) gaming router, new 6GHz band, 2.5G WAN/LAN port, PS5 compatible, WAN aggregation, VPN Fusion, Triple-level Game Acceleration, free network security and AiMesh support

• Next-gen WiFi standard – World's first WiFi 6E tri-band router boosts speeds up to 11000Mbps.
• New 6GHz frequency band – Wider channels and higher capacity delivers higher performance, lower latency, and less interference.
• 2.5G WAN/LAN Port – All network traffic through 2.5G port is given top priority, and 2.5G port unlocks the full potential of WiFi 6.
• Performance through engineering – Quad-core CPU, advanced cooling system and optimized antenna design for next-level computational capabilities.
• Triple-level game acceleration – Accelerate game traffic every step of the way, from device to game server.

Specifications:

Model Name

• GT-AXE11000

Network Standard

• WiFi 6 (802.11ax)
• WiFi 6E (802.11ax)
• Backwards compatible with 802.11a/b/g/n/ac Wi-Fi

Product Segment

• AXE11000 ultimate AX/AXE performance

AX technology

Yes

Data Rate

• 2.4GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1148Mbps
• 5GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps
• 6GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps

Antenna

• External antenna x 8

Transmit/Receive

• 2.4GHz 4x4
• 5GHz 4x4
• 6GHz 4x4

Processor

• 1.8GHz quad-core processor

Memory

• 256MB NAND flash and 1GB DDR3 SDRAM

Boosts speed

OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth * The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.

Operating Frequency

Tri-band Wi-Fi: 2.4 GHz / 5 GHz / 6GHz

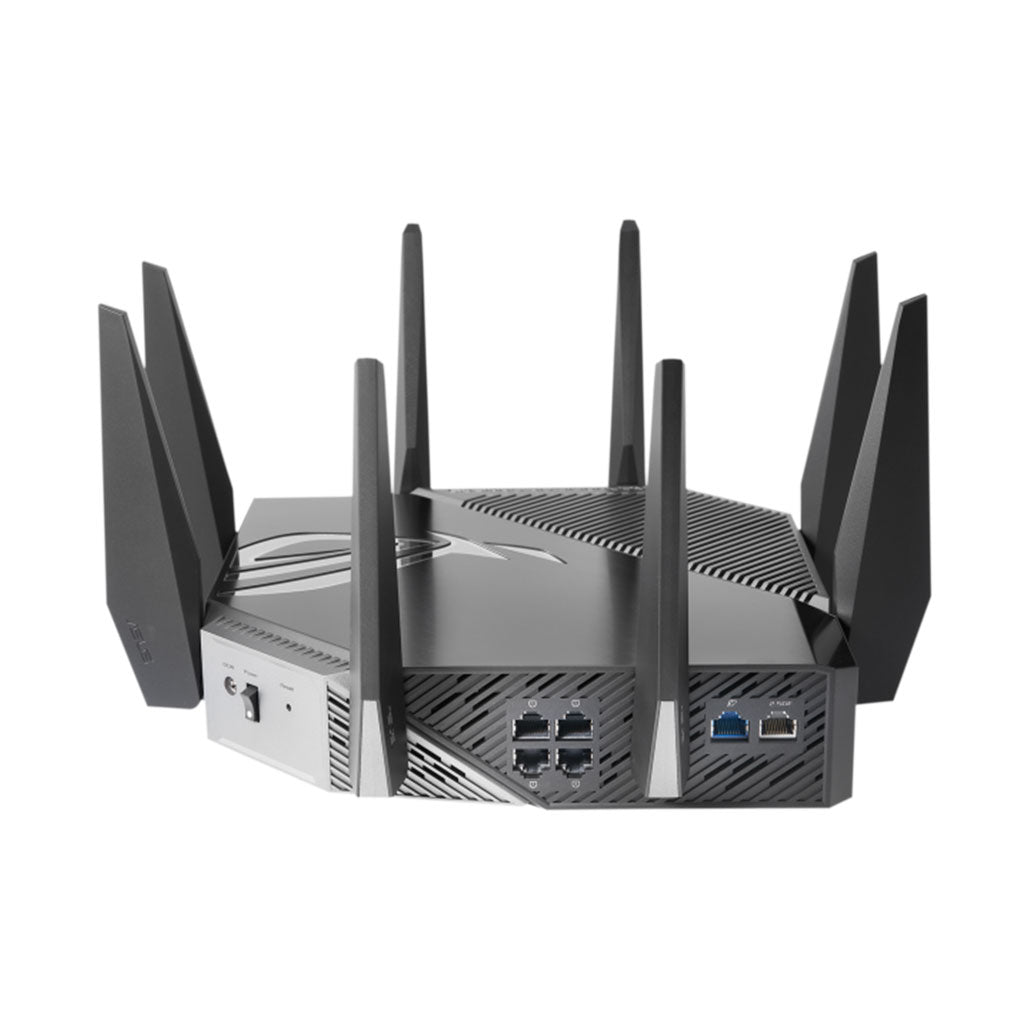

Ports

RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4, RJ45 for 2.5G BaseT for WAN/LAN x 1, USB 3.2 Gen 1 x 2

Button

WPS Button, Reset Button, Power Switch, WiFi on/off Button, Boost Key Button

LED Indicator

Power x 1 2.4G x 1 5G x 1 6G x 1 2.5GE Port x 1 LAN x 1 WAN x 1

Power Supply

AC Input : 110V~240V(50~60Hz) DC Output : 19 V with max. 3.42 A /19.5 V with max. 3.33 A

Package content

GT-AXE11000 WiFi Gaming Router RJ-45 Cable Power Adapter Quick Start Guide Warranty Card

Product Weight (g)

1782g

AiMesh

• AiMesh
• Primary AiMesh router
• AiMesh node

Router APP

ASUS Router APP

Game

• Game Boost/acceleration
• Game Radar
• WTFast
• ROG_First
• OpenNAT (Game Profile)
• Gaming port

Alexa

Support Alexa skill

IFTTT

Support IFTTT

AiProtection

• AiProtection Pro
• Router Security Assessment
• Malicious site blocking
• Two-Way IPS
• Infected Device Prevention and Blocking

Parental Control

• Parental Control
• Parental Control Customized Internet schedule
• Maximum Parental Control profile : 16
• Maximum Parental Control content filter rule : 16

Traffic Control

• Adaptive QoS
• Bandwidth Monitor
• Bandwidth limiter
• Maximum Bandwidth limiter rule : 32
• Traditional QoS
• Maximum Traditional QoS rule : 32
• Traffic Monitor
• Real-time traffic monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
• Traffic Analyzer
• Traffic analysis period : Daily, Weekly, Monthly
• Website history

Wireless

• IPv6
• MU-MIMO
• WiFi Encryption : WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, WPS support
• UTF-8 SSID
• Guest Network
• Maximum Guest Network rule : 2.4 GHz x 3, 5 GHz x 3, 6 GHz x 3
• Guest Network Connection time limit
• Guest Network Encryption : Open system, WPA/WPA2-Personal
• WPS
• Wi-Fi MAC address filter
• Maximum MAC filters : 64
• Wireless scheduler
• Wi-Fi Radar
• Airtime fairness
• RADIUS Client
• Universal beamforming

WAN

• Explicit beamforming
• Internet connection Type : Automatic IP, Static IP, PPPoE (MPPE supported), PPTP, L2TP
• Dual WAN
• WAN Aggregation
• 3G/4G LTE dongle
• Android tethering
• Port forwarding
• Maximum port forwarding rule : 64
• Port triggering
• Maximum port triggering rule : 32
• DMZ
• DDNS
• NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay
• Let's Encrypt
• Safe browsing
• DNS-over-TLS

LAN

• DHCP Server
• IGMP snooping
• IPTV
• LAN Link Aggregation
• Manually assign IP address
• Maximum manually assign IP address rule : 64

VPN

• VPN Client L2TP
• VPN Client OVPN
• VPN Client PPTP
• VPN Client WireGuard
• VPN Server IPSec
• VPN Server OVPN
• VPN Server PPTP
• VPN Server WireGuard
• VPN Fusion

USB application

• File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
• Safely Remove disk
• AiCloud
• Download master
• AiDisk
• Media Server
• Time Machine
• Samba Server
• FTP Server
• Shared Folder privileges

Administration

• Operating mode : Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge
• Operating system : ASUSWRT
• Free OS upgrade
• Firewall
• Maximum Firewall keyword filter : 32
• Maximum Firewall network service filter : 32
• Maximum Firewall URL filter : 64
• Wake on LAN (WOL)
• SSH
• Configuration backup and restore
• Diagnosis tools
• Feedback system
• System log
• New Device Connect Notification
• Login Captcha
• Connection Diagnosis
• Security Scan
• Auto Firmware Update
