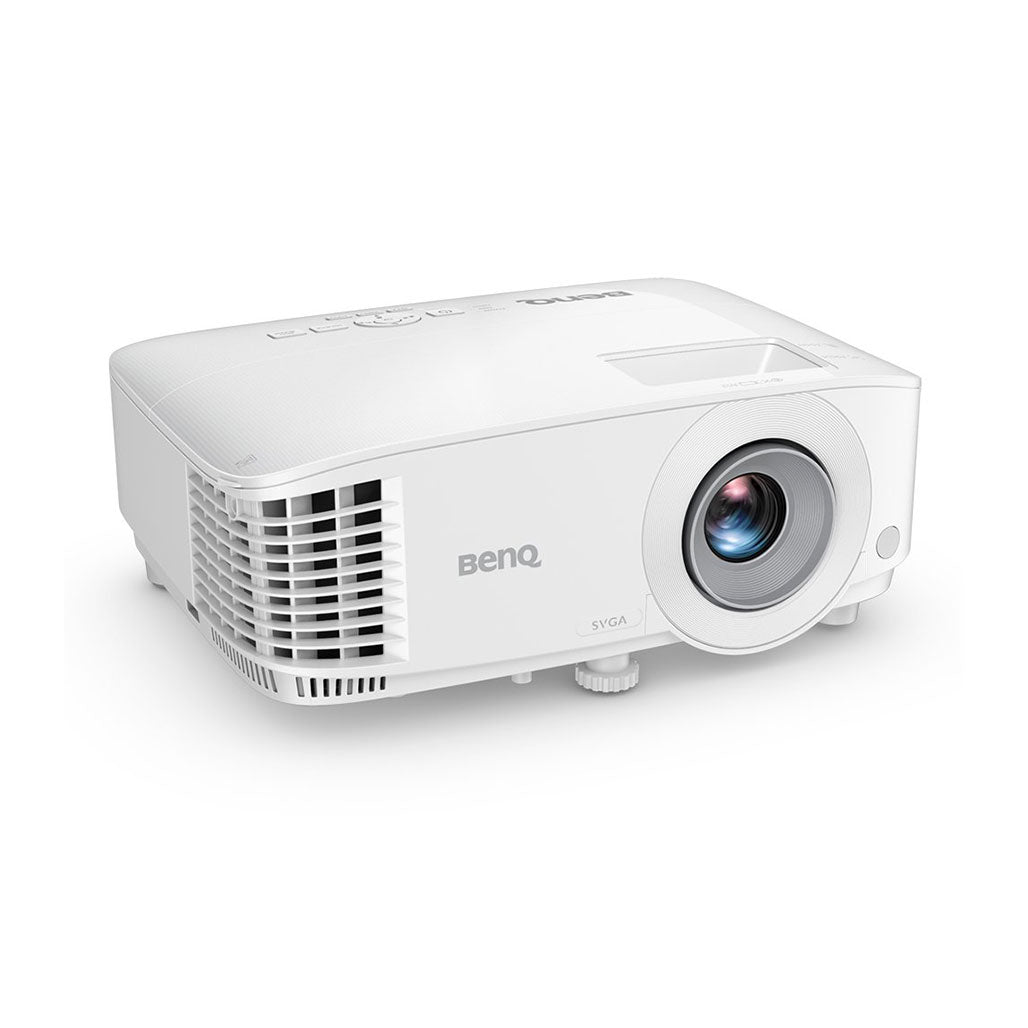

BenQ MS560 - 4000 Lumens SVGA Meeting Room Projector with Enhanced Brightness and Versatile Features

The BenQ MS560 is a high-performance SVGA projector tailored for meeting rooms, delivering exceptional brightness and clarity with 4000 ANSI lumens. Designed for diverse presentation needs, it features a 20,000:1 contrast ratio and 30-bit color depth, ensuring vivid and accurate image reproduction. The projector's lamp offers multiple modes, including SmartEco and LampSave, extending its life up to 15,000 hours. With dual HDMI ports for versatile connectivity, and auto vertical keystone adjustment for effortless image alignment, the MS560 enhances both setup convenience and presentation quality. Its compact design and user-friendly features make it an ideal choice for dynamic meeting environments.

Key Features:

• High Brightness: 4000 ANSI lumens for clear, bright images in various lighting conditions.
• SVGA Resolution: 800x600 resolution for sharp, detailed visuals.
• High Contrast Ratio: 20,000:1 for deep blacks and vivid colors.
• Extended Lamp Life: Up to 15,000 hours with LampSave mode for cost-effective operation.
• Dual HDMI Ports: Convenient and fast connectivity for digital devices.
• Auto Vertical Keystone Adjustment: Automatic correction for quick and accurate image alignment.
• Compact Design: Easy to set up and transport, making it ideal for different meeting spaces.

Specifications:

• Brightness: 4000 ANSI Lumens
• Native Resolution: SVGA (800x600)
• Aspect Ratio: 4:3
• Contrast Ratio: 20,000:1
• Light Source: Lamp
• Light Source Life: Normal 6000 hrs, ECO 10,000 hrs, SmartEco 10,000 hrs, LampSave 15,000 hrs
• Throw Ratio: 1.96~2.15
• Zoom Ratio: 1.1x
• Lens: F/# = 2.56 ~ 2.68, f = 22 ~ 24.1 mm
• Projection Offset: 110%
• Keystone Adjustment: Auto Vertical ± 40 degrees
• Picture Modes: 3D, Bright, Infographic, Presentation, Spreadsheet, sRGB, User 1, User 2
• Resolution Support: VGA (640 x 480) to WUXGA_RB (1920 x 1200)
• Horizontal Frequency: 15K~102KHz
• Vertical Scan Rate: 23~120KHz

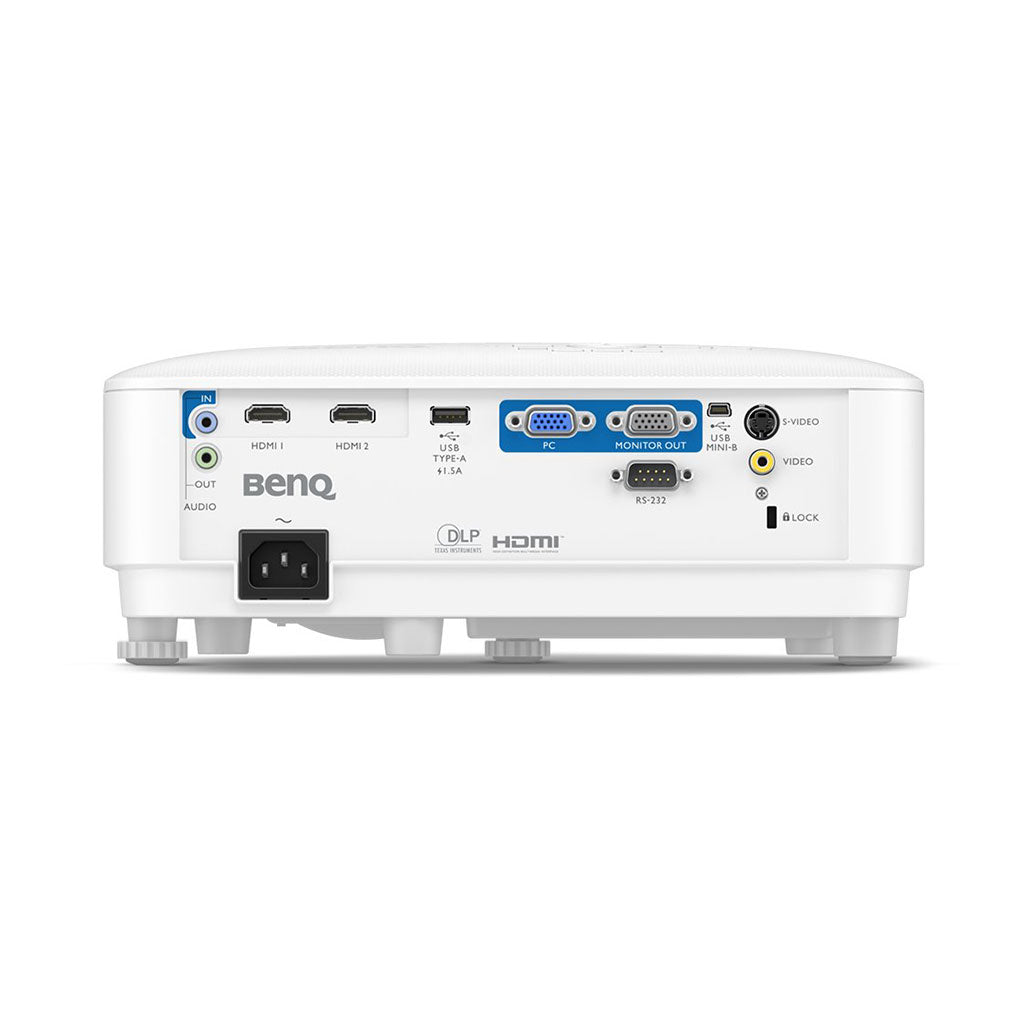

I/O Interfaces:

• PC in (D-sub 15pin): 1
• Monitor out (D-sub 15pin): 1
• Composite Video in (RCA): 1
• S-Video in (Mini DIN 4pin): 1
• HDMI in: 2 (HDMI-1 and HDMI-2, 1.4a/HDCP1.4)
• USB Type A: 1
• USB Type Mini B: 1
• RS232 in (DB-9pin): 1

Audio:

• Speaker: 10W
• Audio in (3.5mm Mini Jack): 1
• Audio out (3.5mm Mini Jack): 1

Environment:

• Operating Temperature: 0~40°C
• Power Supply: AC 100 to 240 V, 50/60 Hz
• Typical Power Consumption (110V): 260W
• Acoustic Noise: 34 dB (Typical), 29 dB (Eco)

Accessories:

• Remote Control: Included with Battery (RCX016)
• Power Cord: 1.8M (by region)
• VGA Cable: 1.5m (Standard)
• 3D Glasses: Optional (DGD5)
• Quick Start Guide: Included (21L)
• Warranty Card: Included (by region)
• Universal Ceiling Mount: Optional (CM00G3)

Dimensions & Weight:

• Dimensions (WxHxD): 296 x 120 x 221 mm
• Net Weight: 2.3 kg

Projection System:

• Projection System: DLP

Notes:

• The lamp contains mercury. Dispose of it according to local regulations.
• Lamp life may vary based on environmental conditions and usage. Specifications are subject to change without notice.

Enhance your presentations with the BenQ MS560, offering exceptional brightness, advanced connectivity, and user-friendly features for professional settings.
