Samsung Interactive Display WAF - 4K UHD Android Interactive Whiteboard

Transform Classrooms with Interactive Learning and Seamless Collaboration

The Samsung Interactive Display WAF Series has been designed to deliver a modern, engaging, and collaborative educational experience. Powered by Android™ 14 and equipped with EDLA certification, this interactive whiteboard provides direct access to Google services such as Google Classroom, Google Play, and YouTube, making digital learning more accessible and efficient. Its intuitive user interface offers a familiar experience for educators and students while supporting customizable widgets and home screen layouts to suit various teaching environments.

Collaboration is enhanced through advanced annotation capabilities, split note functionality, and powerful multi-touch technology. Notes can be added instantly over videos, presentations, and other content without interrupting lessons. Multiple students can work simultaneously in separate note zones, encouraging both teamwork and independent learning. With support for wireless screen sharing, multi-window operation, and real-time content distribution, the WAF Series helps create highly interactive and productive classrooms.

The display has also been engineered to simplify connectivity and device integration. A versatile 3-in-1 USB-C port supports screen mirroring, touch functionality, and device charging through a single cable. Additional features such as HDMI output, OPS support for Windows integration, cloud and on-premises device management solutions, and advanced campus-wide messaging provide a complete solution for educational institutions seeking reliable and scalable classroom technology.

Key Features

Android™ 14 Powered User Experience

A familiar Android-based interface is provided, allowing easy navigation, customization, and compatibility with a wide range of educational applications and tools.

EDLA-Certified Google Integration

Access to Google Play, Google Classroom, YouTube, and other Google services is supported, helping improve communication, lesson delivery, and classroom productivity.

Instant Annotation Function

Content can be annotated at any time using the always-visible annotation button, allowing notes to be added directly over videos, presentations, and documents.

Split Note Mode

Up to four independent writing zones can be used simultaneously, enabling multiple students to collaborate on the same screen without interfering with one another.

Multi-Window Multitasking

Several applications and content sources can be displayed simultaneously, making lesson preparation and classroom management more efficient.

Wireless Screen Sharing

Screen mirroring is supported for up to nine devices across iOS, macOS, Windows, Android, and ChromeOS platforms.

40-Point Multi-Touch Technology

Up to 40 touch points can be recognized simultaneously, supporting collaborative writing, drawing, and interactive learning activities.

Dual Pen Functionality

Two different pen colors can be used instantly through a dual-sided pen design without changing settings or interrupting workflow.

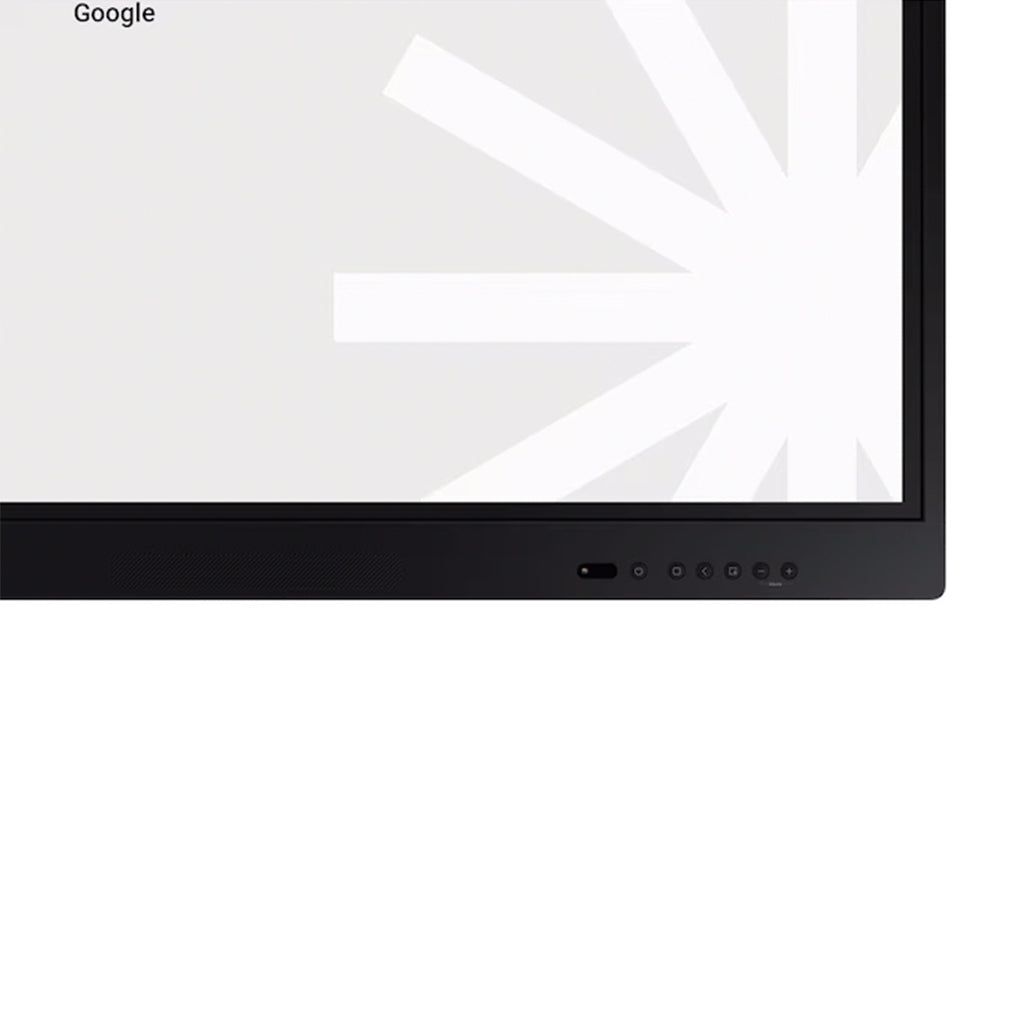

Quick Access Controls

Frequently used functions can be accessed quickly through convenient front-facing physical controls.

3-in-1 USB-C Connectivity

A single USB-C connection supports screen sharing, touch control, and device charging up to 65W.

HDMI Output

Classroom content can be mirrored to larger or secondary displays, ensuring visibility for all students regardless of seating position.

OPS Support

The integrated OPS slot allows the display to operate with a Windows environment directly on the screen without requiring a separate external PC.

Device Management Solution (DMS)

Remote management of applications, settings, and devices can be performed through cloud-based or on-premises management solutions.

Advanced Messaging System

Important notifications and announcements can be delivered instantly across classrooms, campuses, and shared educational spaces.

Enhanced Durability

Protection against electrical surges and humidity exposure has been incorporated to support dependable operation in demanding educational environments.

Specifications

Specifications

Samsung Interactive Display WAF 65"

Display

• Diagonal Size: 65"
• Panel Type: IPS
• Resolution: 3,840 × 2,160 (4K UHD)
• Pixel Pitch (H × V): 372 × 372 mm
• Brightness (Typical): 400 nits
• Contrast Ratio: 1,200:1
• Viewing Angle (H/V): 178° / 178°
• Response Time: 8ms
• Color Gamut: 72%
• Glass Haze: 25%
• H-Scanning Frequency: 13.5KHz
• Maximum Pixel Frequency: 78MHz
• V-Scanning Frequency: 60Hz
• Operation Time Support: 12/7

Connectivity

• HDMI In: 2
• HDMI Version: 2.1
• HDCP Version: 2.1
• USB Ports: 4
• Audio In: Stereo Mini Jack
• Audio Out: Stereo Mini Jack
• Video Out: Yes
• RS232 In: Yes
• RJ45 In: Yes
• Wi-Fi: Wi-Fi 5 (802.11ac)
• Bluetooth: Yes

Power

• Power Supply: AC100-240V, 50/60Hz
• Power Consumption (On Mode): 409W
• Power Consumption (Sleep Mode): 0.5W

Dimensions & Weight

• Set Dimensions (W × H × D): 1482.1 × 897.5 × 87.7 mm
• Package Dimensions (W × H × D): 1640 × 1010 × 185 mm
• Set Weight: 36.2 kg
• Package Weight: 44.5 kg

Operating Conditions

• Temperature: 0°C to 40°C
• Humidity: 10% to 80%, Non-Condensing

Mechanical Specifications

• VESA Mount: 600 × 400 mm
• Bezel Width: 14.0 mm
• Bezel Color: Black
• Frame Material: Aluminium

System & Touch

• Operating System: Android 14
• Flash Memory: 64GB
• Touch Support: Yes
• Touch Technology: IR

Eco & Certifications

• Energy Efficiency: B
• EMC: FCC CFR Title 47 Part 15 Subpart B / EN55032:2015+A11:2020
• Safety: IEC62368-1 / UL62368-1 / IEC60950-1 / IS13252

Samsung Interactive Display WAF 75"

Display

• Diagonal Size: 75"
• Panel Type: IPS
• Resolution: 3,840 × 2,160 (4K UHD)
• Pixel Pitch (H × V): 429.6 × 429.6 mm
• Brightness (Typical): 400 nits
• Contrast Ratio: 1,200:1
• Viewing Angle (H/V): 178° / 178°
• Response Time: 8ms
• Color Gamut: 72%
• Glass Haze: 25%
• H-Scanning Frequency: 13.5KHz
• Maximum Pixel Frequency: 78MHz
• V-Scanning Frequency: 60Hz
• Operation Time Support: 12/7

Connectivity

• HDMI In: 2
• HDMI Version: 2.1
• HDCP Version: 2.1
• USB Ports: 4
• Audio In: Stereo Mini Jack
• Audio Out: Stereo Mini Jack
• Video Out: Yes
• RS232 In: Yes
• RJ45 In: Yes
• Wi-Fi: Wi-Fi 5 (802.11ac)
• Bluetooth: Yes

Power

• Power Supply: AC100-240V, 50/60Hz
• Power Consumption (On Mode): 450W
• Power Consumption (Sleep Mode): 0.5W

Dimensions & Weight

• Set Dimensions (W × H × D): 1716.5 × 1031.9 × 87.7 mm
• Package Dimensions (W × H × D): 1860 × 1125 × 185 mm
• Set Weight: 49.2 kg
• Package Weight: 58.8 kg

Operating Conditions

• Temperature: 0°C to 40°C
• Humidity: 10% to 80%, Non-Condensing

Mechanical Specifications

• VESA Mount: 800 × 400 mm
• Bezel Width: 17.2 mm
• Bezel Color: Black
• Frame Material: Aluminium

System & Touch

• Operating System: Android 14
• Flash Memory: 64GB
• Touch Support: Yes
• Touch Technology: IR

Eco & Certifications

• Energy Efficiency: B
• EMC: FCC CFR Title 47 Part 15 Subpart B / EN55032:2015+A11:2020
• Safety: IEC62368-1 / UL62368-1 / IEC60950-1 / IS13252
